WT30 X C (GC04) - Honda Water Pump, Made in Japan (SN: GC04-1000001 - GC04-9999999) WT30X RECOIL STARTER Parts Diagram

Water Pump, Made in Japan

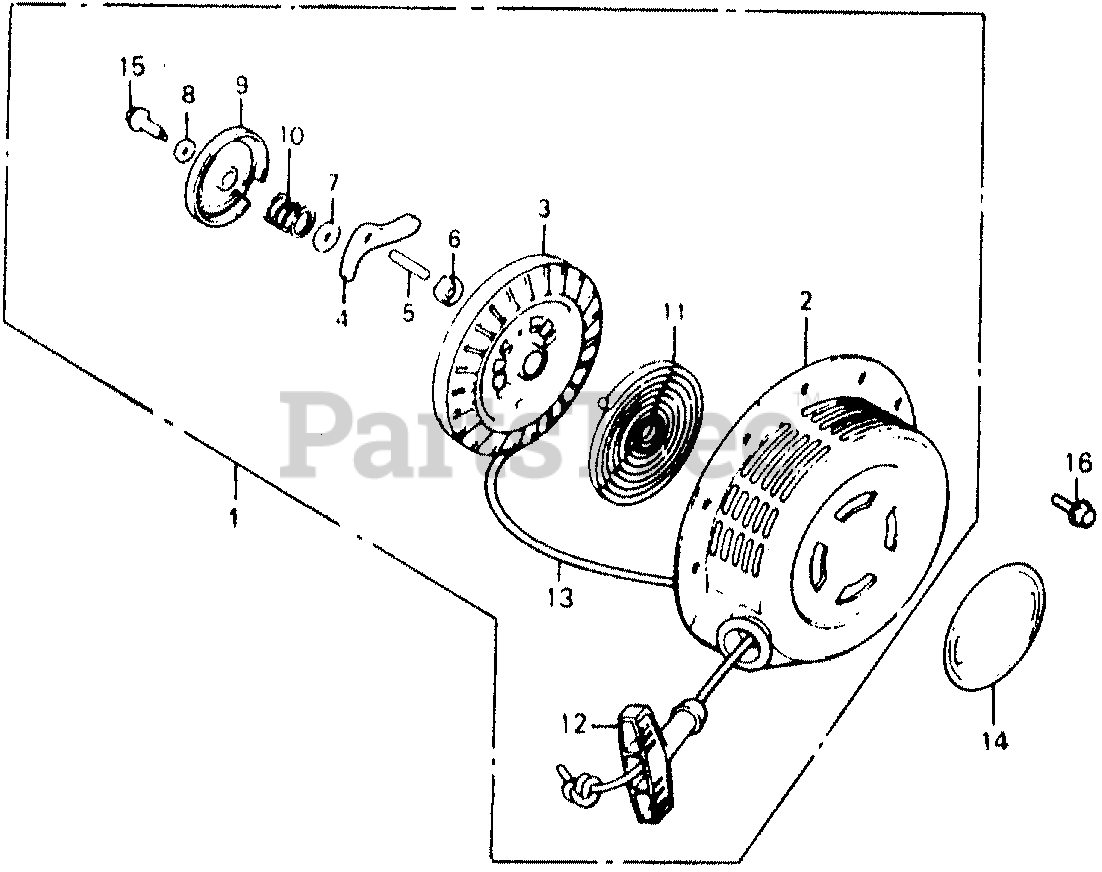

WT30X RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE2-003ZA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 06280-ZE2-305)

$105.99

$

Usually ships in 3-6 days

0

3

Honda 28420-889-631

REEL, STARTER

$

$

Not available

4

Honda 28422-ZE1-711

RATCHET, STARTER

$5.99

$

Usually ships in 3-6 days

0

5

Honda 28423-ZE1-711

SHAFT, RATCHET

$9.99

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-711

SEE PART DETAILS - SUP; PLATE, GUIDE
(Superseded to 28424-ZE1-712)

$5.49

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE

$5.49

$

Usually ships in 3-6 days

0

7

Honda 28431-ZE1-711

PLATE A, FRICTION

$

$

Not available

8

Honda 28432-ZG0-003

SEE PART DETAILS - SUP; PLATE B, FRICTION

$2.99

$

Usually ships in 3-6 days

0

9

Honda 28434-ZE1-711

COVER, REEL STARTER

$

$

Not available

10

Honda 28441-ZE1-711

SEE PART DETAILS - SUP; SPRING, FRICTION

$3.99

$

Usually ships in 3-6 days

0

11

Honda 28442-ZE1-711

SEE PART DETAILS - SUP; SPRING, RETURN
(Superseded to 28442-ZE1-713)

$22.99

$

In Stock, only 1 left!

0

11

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN

$22.99

$

In Stock, only 1 left!

0

12

Honda 28461-889-631

GRIP, STARTER

$11.99

$

In Stock, Qty 14

0

13

Honda 28462-ZE2-003

SEE PART DETAILS - SUP; ROPE, STARTER (#5X59") (N/A: USE ALT. PNO 08550-ZG921-11)

$

$

Currently unavailable

14

Honda 87521-ZE2-830

EMBLEM (EXTERNAL-ALERT)

$

$

Not available

15

Honda 90003-ZG0-003

BOLT, REEL COVER

$

$

Not available

16

Honda 90011-ZG0-000

BOLT, FLANGE (6X8)
(Superseded to 95701-06008-00)

$4.49

$

In Stock, Qty 20+

0
