WT30 X C (GC04) - Honda Water Pump, Made in Japan (SN: GC04-1000001 - GC04-9999999) WT30X MUFFLER Parts Diagram

Water Pump, Made in Japan

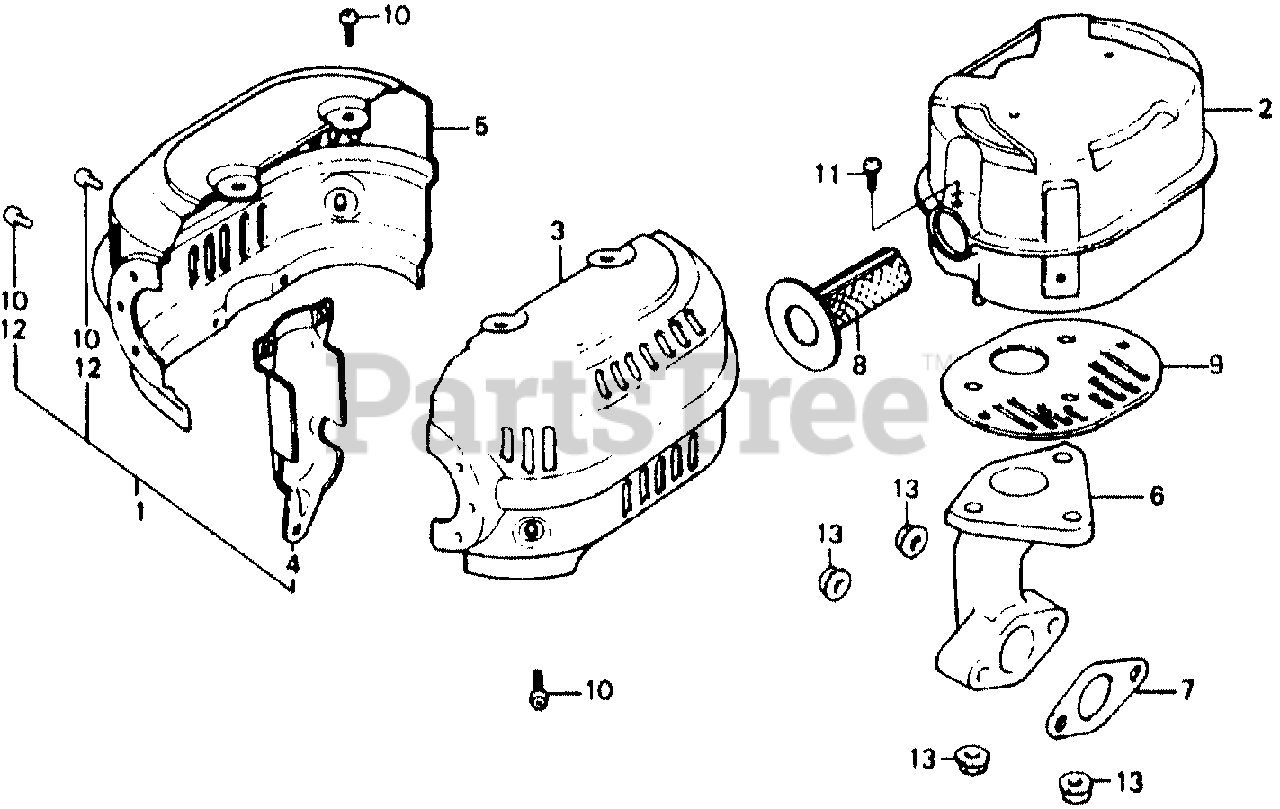

WT30X MUFFLER Parts Diagram

  • Title

1

Honda 04101-ZE2-000

PROTECTOR, EX. PIPE

Note: Use up to Engine SN 1034877.

$

$

Not available

2

Honda 18310-ZE2-013

MUFFLER

$91.99

$

Usually ships in 3-6 days

0

3

Honda 18320-ZE2-G30

SEE PART DETAILS - SUP; PROTECTOR, R. MUFFLER (ALUMINIZED)
(Superseded to 18320-ZE2-G31)

$30.99

$

Usually ships in 3-6 days

0

4

Honda 04101-ZE2-000

PROTECTOR, EX. PIPE

Note: Use up to Engine SN 1034877.

$

$

Not available

4

Honda 18323-ZE2-811

PROTECTOR, EX. PIPE

Note: Use from Engine SN 1034878.

$

$

Not available

5

Honda 18325-ZE2-G30

PROTECTOR, L. MUFFLER (ALUMINIZED)

$51.99

$

Usually ships in 3-6 days

0

6

Honda 18330-ZE2-000

PIPE, EX.

$70.99

$

In Stock, only 1 left!

0

7

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 20+

0

7

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER)

$4.99

$

In Stock, Qty 20+

0

8

Honda 18355-ZE2-010

SEE PART DETAILS - PRI; ARRESTER, SPARK

$25.99

$

Usually ships in 3-6 days

0

9

Honda 18381-ZE2-800

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-ZE2-801)

$14.99

$

In Stock, only 2 left!

0

10

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: Use up to Engine SN 1034877.

$2.49

$

In Stock, Qty 20+

0

10

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: Use from Engine SN 1034878.

$2.49

$

In Stock, Qty 20+

0

11

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

$1.49

$

In Stock, Qty 11

0

12

Honda 93500-05008-0B

SCREW, PAN (5X8)

Note: Use from Engine SN 1034878.

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0
