WT30 C (G300) - Honda Water Pump, Made in Japan (SN: G300-1212874 - G300-9999999) FUEL TANK@FUEL VALVE Parts Diagram

Water Pump, Made in Japan

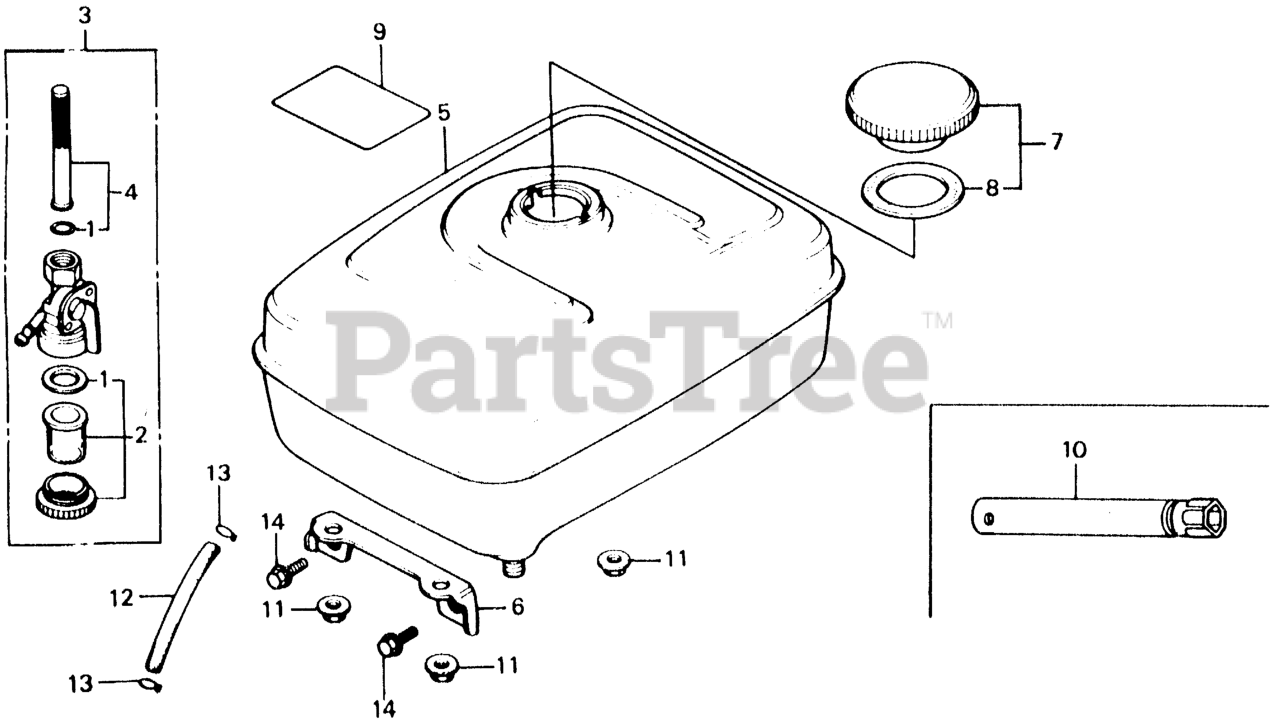

FUEL TANK@FUEL VALVE Parts Diagram

  • Title

1

Honda 16080-898-631

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED) (Honda Code 1176726).

$29.99

$

Usually ships in 3-6 days

0

2

Honda 16081-471-831

SEE PART DETAILS - PRI; CUP, FUEL STRAINER

$30.99

$

In Stock, only 1 left!

0

3

Honda 16950-898-631

SEE PART DETAILS - SUP; PETCOCK ASSY. (Honda Code 1105709).
(Superseded to 16950-898-633)

$57.99

$

Usually ships in 3-6 days

0

3

Honda 16950-898-633

SEE PART DETAILS - PRI; PETCOCK ASSY. (Honda Code 7089162).

$57.99

$

Usually ships in 3-6 days

0

4

Honda 16952-883-005

SCREEN SET (Honda Code 0674580).

$18.99

$

In Stock, only 1 left!

0

5

Honda 17510-890-010XC

TANK, FUEL *NH31R* (MCKINLEY WHITE)

Note: Use up to Engine SN 1375543.

$

$

Currently unavailable

5

Honda 17510-890-020XC

TANK, FUEL *NH31R* (MCKINLEY WHITE)

Note: Use from Engine SN 1375544.

$

$

Currently unavailable

6

Honda 17516-890-000

STAY, FUEL TANK (Honda Code 0760546).

$

$

Not available

7

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK) Use up to Engine SN 2115700.
(Superseded to 17620-Z0T-305)

$

$

Not available

7

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

$

$

Not available

7

Honda 17620-Z0T-315

CAP COMP

$19.99

$

In Stock, Qty 8

0

8

Honda 17631-ZE1-000

GASKET, FUEL FILLER CAP (39X58X3) (NOT AVAILABLE)

$3.49

$

In Stock, only 3 left!

0

8

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP Use from Engine SN 1543258.
(Superseded to 17631-329-013)

$

$

Not available

8

Honda 17631-329-013

GASKET, FUEL FILLER CAP (39X58X3)

$

$

Not available

9

Honda 87522-883-660

SEE PART DETAILS - PRI; MARK, CAUTION (ENGLISH/FRENCH)(SPANISH) (Honda Code 0636811).

$4.99

$

In Stock, Qty 9

0

10

Honda 89216-809-000

WRENCH, SPARK PLUG (NOT AVAILABLE)

$8.99

$

Usually ships in 3-6 days

0

11

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

12

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 4 left!

0

13

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

14

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 3 left!

0
