WT30 C (G300) - Honda Water Pump, Made in Japan (SN: G300-1212874 - G300-9999999) CASING@IMPELLER Parts Diagram

Water Pump, Made in Japan

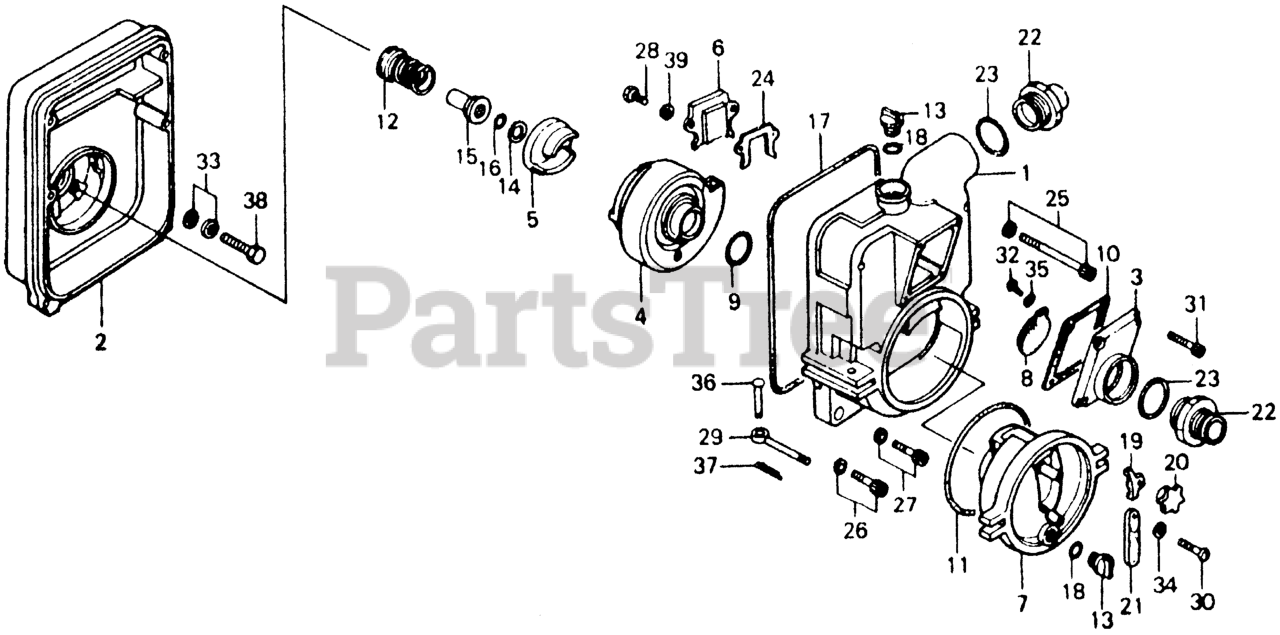

CASING@IMPELLER Parts Diagram

  • Title

1

Honda 78101-YB1-003

CASING (NOT AVAILABLE)

$

$

Not available

2

Honda 78102-YB2-003

COVER, CASING

$

$

Currently unavailable

3

Honda 78103-YB1-003

COVER, SUCTION (NOT AVAILABLE)

$

$

Not available

4

Honda 78105-YB1-013

CASING, VOLUTE (NOT AVAILABLE)

$

$

Not available

5

Honda 78106-YB2-003

IMPELLER

$

$

Not available

6

Honda 78107-YB1-003

PLATE, PARTITION

$

$

Not available

7

Honda 78108-YB1-003

COVER, DRAIN

$

$

Not available

8

Honda 78110-YB1-003

VALVE, CHECK (NOT AVAILABLE)

$

$

Not available

9

Honda 91320-HM7-702

SEE PART DETAILS - PRI; O-RING (75X3.2)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 78113-YB1-003

GASKET, SUCTION COVER (NOT AVAILABLE)

$

$

Not available

11

Honda 78114-YB1-003

O-RING, DRAIN COVER

$

$

Not available

12

Honda 78115-YB2-003

SEE PART DETAILS - SUP; SEAL, MECHANICAL
(Superseded to 78115-YB2-505)

$

$

Not available

13

Honda 78117-YB1-003

CAP, FLOODING

$27.99

$

Usually ships in 3-6 days

0

14

Honda 78122-YB1-003

WASHER, IMPELLER ADJUSTING (NOT AVAILABLE)

$

$

Not available

14

Honda 78123-YB1-003

LINER, IMPELLER ADJUSTING (NOT AVAILABLE)

$

$

Not available

14

Honda 78124-YB1-003

LINER, IMPELLER ADJUSTING (NOT AVAILABLE)

$

$

Not available

15

Honda 78131-YB2-003

SLEEVE (NOT AVAILABLE)

$

$

Not available

16

Honda 91312-MG7-003

SEE PART DETAILS - PRI; O-RING (24.4X3.1)

$7.99

$

In Stock, only 2 left!

0

17

Honda 78134-YB1-003

O-RING, CASING

$25.99

$

Usually ships in 3-6 days

0

18

Honda 91302-001-020

O-RING (30.8MM)

$4.99

$

In Stock, only 3 left!

0

19

Honda 78140-YB1-003

PLATE, DRAIN COVER PUSH

$62.99

$

Usually ships in 3-6 days

0

20

Honda 78202-YB1-003

SEE PART DETAILS - SUP; HANDLE, DRAIN COVER SETTING
(Superseded to 78202-YB1-013)

Note: Use up to Frame SN 1283145.

$

$

Not available

20

Honda 78202-YB1-013

SEE PART DETAILS - PRI; HANDLE, DRAIN COVER SETTING (NOT AVAILABLE)

Note: Use from Frame SN 1283146.

$

$

Not available

21

Honda 78207-YB1-003

HANDLE, DRAIN COVER (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 78312-YB2-003

NIPPLE, SUCTION

$

$

Currently unavailable

23

Honda 91303-PH8-010

SEE PART DETAILS - PRI; O-RING (79.4X3.1)

$13.99

$

Usually ships in 3-6 days

0

24

Honda 78320-YB1-003

GASKET

$

$

Not available

25

Honda 90101-YB1-003

BOLT, SOCKET SEAL

$

$

Not available

26

Honda 90102-YB1-003

BOLT, SOCKET SEAL

$

$

Not available

27

Honda 90103-YB1-003

BOLT, SOCKET

$

$

Not available

28

Honda 92101-08020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X20)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 90105-YB1-003

BOLT, HINGE

$

$

Not available

30

Honda 90106-YB1-003

SCREW, HANDLE SETTING

$

$

Currently unavailable

31

Honda 96700-08028-10

BOLT, SOCKET (8X28)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 93500-05010-4J

SEE PART DETAILS - PRI; SCREW, PAN (5X10)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 90501-YB1-003

WASHER, SEAL

$

$

Not available

34

Honda 94111-08000

SEE PART DETAILS - PRI; WASHER, SPRING (8MM) (Honda Code 0058982).

$1.49

$

Usually ships in 3-6 days

0

35

Honda 94101-05000

SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) (Honda Code 0059055).

$1.49

$

In Stock, only 3 left!

0

36

Honda 90701-YB1-003

PIN, HINGE (NOT AVAILABLE)

$

$

Currently unavailable

37

Honda 94201-40300

SEE PART DETAILS - PRI; PIN, COTTER (4.0X30)

$1.49

$

In Stock, Qty 5

0

38

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25) (Honda Code 2651537).

$2.49

$

In Stock, Qty 6

0

39

Honda 94111-08000

SEE PART DETAILS - PRI; WASHER, SPRING (8MM) (Honda Code 0058982).

$1.49

$

Usually ships in 3-6 days

0
