WT20 XK4 AC (WAAJ) - Honda Water Pump, Made in Japan (SN: WAAJ-1100001 - WAAJ-1199999) RECOIL STARTER (WT20XK4) Parts Diagram

Water Pump, Made in Japan

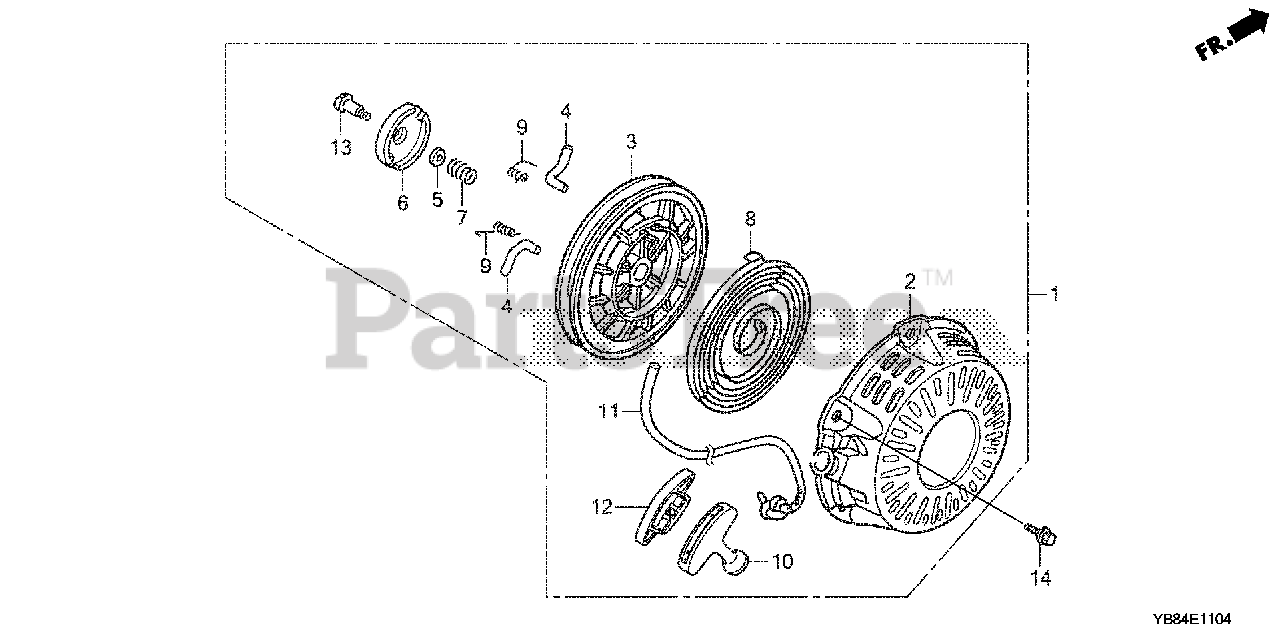

RECOIL STARTER (WT20XK4) Parts Diagram

  • Title

1

Honda 28400-Z4M-305ZB

STARTER ASSY., RECOIL *R280* (COO)(FOR U.S.A.) (POWER RED)

$23.99

$

In Stock, Qty 10

0

2

Honda 28410-Z4M-003ZB

CASE, RECOIL STARTER *R280* (POWER RED)

$13.99

$

Usually ships in 3-6 days

0

3

Honda 28421-Z0T-003

REEL, RECOIL STARTER

$35.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZH8-801

RATCHET, STARTER

$6.49

$

In Stock, Qty 6

0

5

Honda 28431-ZH8-801

PLATE, FRICTION

$5.49

$

Usually ships in 3-6 days

0

6

Honda 28433-ZH8-801

GUIDE, RATCHET

$8.99

$

Usually ships in 3-6 days

0

7

Honda 28441-ZH8-801

SPRING, FRICTION

$4.49

$

Usually ships in 3-6 days

0

8

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

$18.99

$

In Stock, Qty 10

0

9

Honda 28443-ZH8-801

SPRING, RETURN

$3.49

$

In Stock, only 1 left!

0

10

Honda 28461-Z4M-305

SEE PART DETAILS - PRI; KNOB, RECOIL STARTER (COO)(FOR U.S.A.)
(Superseded to 28461-Z4M-003)

$

$

Not available

11

Honda 28462-ZH8-003

ROPE, RECOIL STARTER

$12.99

$

In Stock, only 4 left!

0

12

Honda 28463-Z4M-003

KNOB, REINFORCEMENT

$3.49

$

In Stock, only 1 left!

0

13

Honda 90003-ZH8-801

SCREW, SETTING

$4.49

$

In Stock, only 2 left!

0

14

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0
