WT20 XK4 AC/A (WAAJ) - Honda Water Pump, Made in Japan (SN: WAAJ-1200001 - WAAJ-9999999) GOVERNOR ARM (WT20XK4) Parts Diagram

Water Pump, Made in Japan

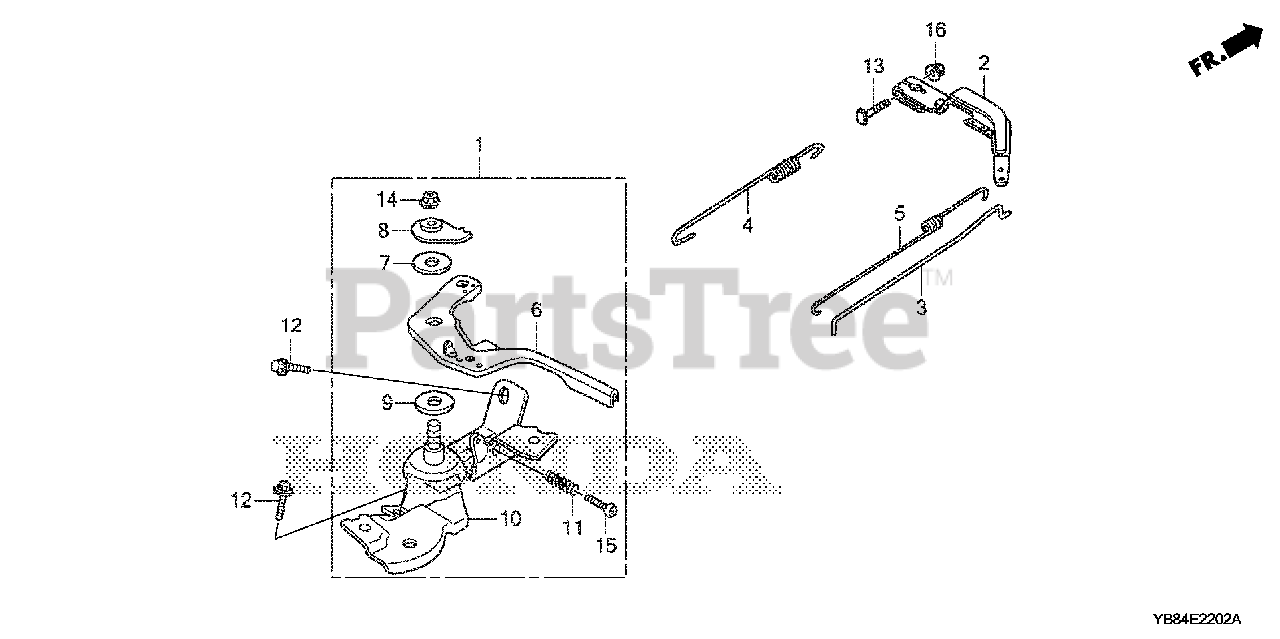

GOVERNOR ARM (WT20XK4) Parts Diagram

  • Title

1

Honda 16500-Z4M-000

SEE PART DETAILS - PRI; CONTROL ASSY.

$7.99

$

Usually ships in 3-6 days

0

2

Honda 16551-Z4M-000

ARM, GOVERNOR

$17.99

$

Usually ships in 3-6 days

0

3

Honda 16555-Z0T-N70

ROD, GOVERNOR

Note: Use from Engine SN 3303002.

$5.49

$

In Stock, Qty 11

0

3

Honda 16555-Z4M-000

ROD, GOVERNOR
(Superseded to 16555-Z0T-N70)

Note: Use up to Engine SN 3303001.

$5.49

$

In Stock, Qty 11

0

4

Honda 16561-Z4M-010

SPRING, GOVERNOR

$1.49

$

In Stock, Qty 5

0

5

Honda 16562-ZE1-020

SEE PART DETAILS - PRI; SPRING, THROTTLE RETURN (Honda Code 1950625).

$4.49

$

In Stock, Qty 20+

0

6

Honda 16571-Z4M-000

LEVER, CONTROL

$7.49

$

Usually ships in 3-6 days

0

7

Honda 16574-ZE1-000

SPRING, LEVER (Honda Code 1427384).

$4.49

$

In Stock, only 1 left!

0

8

Honda 16575-ZH8-000

SEE PART DETAILS - PRI; WASHER, CONTROL LEVER (Honda Code 3683604).

$6.49

$

Usually ships in 3-6 days

0

9

Honda 16578-ZE1-000

SPACER, CONTROL LEVER (Honda Code 1427400).

$5.99

$

In Stock, only 3 left!

0

10

Honda 16580-Z4M-000

BASE, CONTROL

$30.99

$

Usually ships in 3-6 days

0

11

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$5.49

$

In Stock, Qty 6

0

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 19

0

13

Honda 90015-Z5T-000

BOLT, GOVERNOR ARM

$0.99

$

Usually ships in 3-6 days

0

14

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

14

Honda 90202-Z1T-000

NUT, SELF-LOCK (6MM)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 93500-05025-0H

SCREW, PAN (5X25) (Honda Code 0374702).

$1.49

$

In Stock, only 4 left!

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
