WT20 XK3 AC/A (WAAJ) - Honda Water Pump, Made in Japan (SN: WAAJ-1010001 - WAAJ-1013491) CASING (WT20XK3/K4,WT30XK3/K4) Parts Diagram

Water Pump, Made in Japan

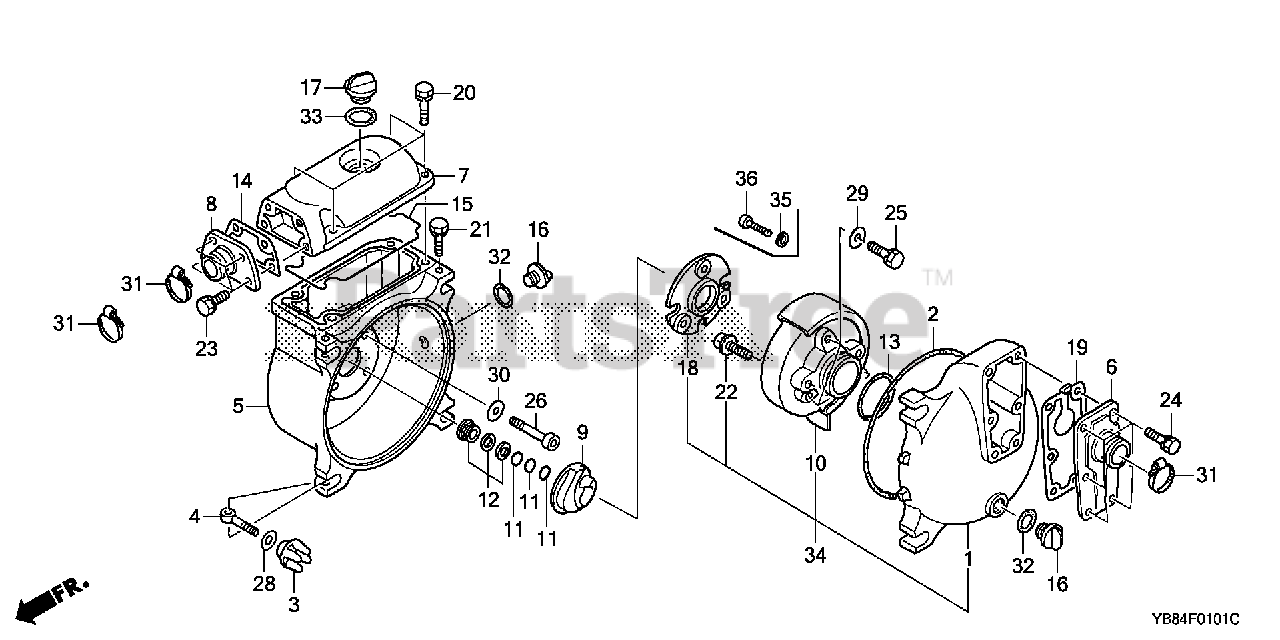

CASING (WT20XK3/K4,WT30XK3/K4) Parts Diagram

  • Title

1

Honda 63511-YG1-023

SEE PART DETAILS - PRI; COVER, FR.
(Superseded to 63511-YG1-033)

$241.99

$

Usually ships in 3-6 days

0

2

Honda 63512-YG0-003

GASKET, FR. COVER

$10.99

$

In Stock, Qty 12

0

3

Honda 63523-YG0-003

KNOB, FR. COVER

$21.99

$

Usually ships in 3-6 days

0

4

Honda 63524-YG0-003

BOLT, FR. COVER SETTING

$11.99

$

Usually ships in 3-6 days

0

5

Honda 78101-YG1-023

CASING
(Superseded to 78101-YG1-033)

$491.99

$

In Stock, only 2 left!

0

6

Honda 78103-YG1-003

INLET

$61.99

$

Usually ships in 3-6 days

0

7

Honda 78104-YG1-003

OUTLET

$61.99

$

Usually ships in 3-6 days

0

8

Honda 78105-YG1-003

OUTLET

$17.99

$

Usually ships in 3-6 days

0

9

Honda 78106-YG1-003

IMPELLER

$522.99

$

Usually ships in 3-6 days

0

10

Honda 78107-YG1-023

CASE, VOLUTE

$729.99

$

Usually ships in 3-6 days

0

11

Honda 78122-YG1-003

WASHER, SHIM

$2.99

$

In Stock, Qty 18

0

12

Honda 78130-YG1-003

SEAL ASSY., MECHANICAL

$204.99

$

In Stock, only 4 left!

0

13

Honda 78134-YG0-003

O-RING

$3.49

$

In Stock, Qty 11

0

14

Honda 78136-YG1-003

GASKET, OUTLET

$4.99

$

Usually ships in 3-6 days

0

15

Honda 78137-YG0-003

GASKET, HEAD

$7.99

$

In Stock, Qty 11

0

16

Honda 78184-YG0-003

CAP, PLUG (32MM)

$5.99

$

In Stock, Qty 9

0

17

Honda 78187-YG0-003

CAP, PLUG (40MM)

$11.99

$

In Stock, Qty 12

0

18

Honda 78194-YG1-013

PLATE, WEAR

$43.99

$

Usually ships in 3-6 days

0

19

Honda 78313-YG1-003

GASKET, HOSE COUPLING

$25.99

$

In Stock, only 2 left!

0

20

Honda 90102-YG0-003

BOLT-WASHER (10X30)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90103-YG0-003

BOLT-WASHER (12X45)

$3.49

$

In Stock, only 3 left!

0

23

Honda 90102-YG0-003

BOLT-WASHER (10X30)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90106-YG0-003

BOLT-WASHER (10X25)

$2.99

$

In Stock, only 2 left!

0

25

Honda 90109-YG0-003

BOLT-WASHER (6X16)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 90110-YG1-003

BOLT, SOCKET (8X55)

$2.99

$

In Stock, Qty 20+

0

28

Honda 90502-YG0-003

WASHER, PLAIN

$2.99

$

Usually ships in 3-6 days

0

29

Honda 90503-YG0-003

WASHER, PLAIN (6MM)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90504-YG0-003

WASHER (8MM) (AL.)

$2.99

$

In Stock, Qty 14

0

31

Honda 90601-YG1-003

BAND

$15.99

$

Usually ships in 3-6 days

0

32

Honda 91351-YG0-003

O-RING (32MM)

$2.49

$

In Stock, Qty 10

0

33

Honda 91352-YG0-003

O-RING (40MM)

$2.49

$

In Stock, Qty 7

0

35

Honda 22254-ZN4-003

WASHER, CLUTCH (8MM)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 90101-YG1-811

SEE PART DETAILS - PRI; BOLT, SOCKET (8X35)

$5.49

$

Usually ships in 3-6 days

0
