WT20 XK2 AC (GC02) - Honda Water Pump, Made in Japan (SN: GC02-2000001 - GC02-8669999) RECOIL STARTER (WT20XK2/K3) Parts Diagram

Water Pump, Made in Japan

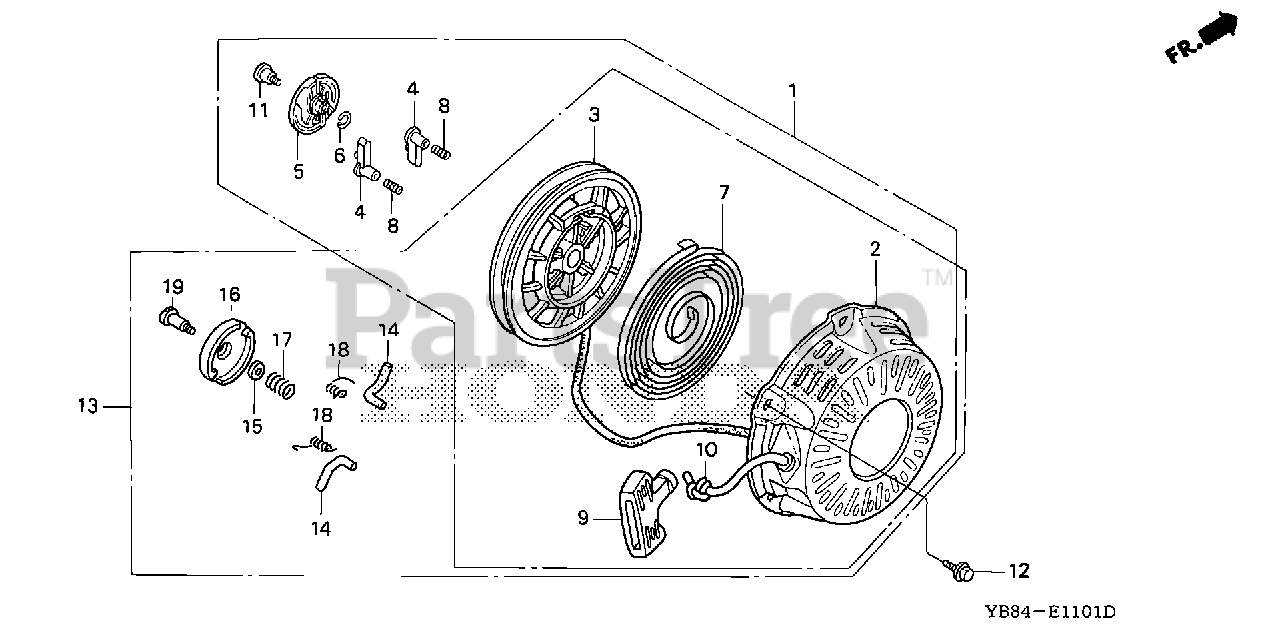

RECOIL STARTER (WT20XK2/K3) Parts Diagram

  • Title

1

Honda 28400-ZH8-013YA

STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use up to Engine SN 8805657.

$126.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZH8-003YA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

$129.99

$

Usually ships in 3-6 days

0

3

Honda 28420-ZH8-013

REEL, RECOIL STARTER (NATURAL)

Note: Use up to Engine SN 8805657.

$49.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZH8-801

REEL, RECOIL STARTER (BLACK)

Note: Use from Engine SN 8805658.

$38.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZH8-013

RATCHET, STARTER

Note: Use up to Engine SN 8805657.

$9.99

$

In Stock, only 1 left!

0

5

Honda 28433-ZH8-003

GUIDE, RATCHET

Note: Use up to Engine SN 8805657.

$14.99

$

Usually ships in 3-6 days

0

6

Honda 28441-ZH8-003

SPRING, FRICTION

Note: Use up to Engine SN 8805657.

$6.99

$

In Stock, only 1 left!

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

$19.99

$

In Stock, Qty 7

0

8

Honda 28443-ZH8-003

SPRING, RETURN

Note: Use up to Engine SN 8805657.

$6.49

$

In Stock, only 1 left!

0

9

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZH8-013)

$8.99

$

In Stock, Qty 5

0

9

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; KNOB, RECOIL SRARTER

$8.99

$

In Stock, Qty 5

0

10

Honda 28462-ZH8-003

ROPE, RECOIL STARTER

$13.99

$

In Stock, only 3 left!

0

11

Honda 90003-ZH8-003

SCREW, SETTING

Note: Use up to Engine SN 8805657.

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

13

Honda 28400-Z0T-003ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use from Engine SN 8805658.

$101.99

$

Usually ships in 3-6 days

0

14

Honda 28422-ZH8-801

RATCHET, STARTER

Note: Use from Engine SN 8805658.

$7.49

$

In Stock, Qty 6

0

15

Honda 28431-ZH8-801

PLATE, FRICTION

Note: Use from Engine SN 8805658.

$5.99

$

Usually ships in 3-6 days

0

16

Honda 28433-ZH8-801

GUIDE, RATCHET

Note: Use from Engine SN 8805658.

$10.99

$

Usually ships in 3-6 days

0

17

Honda 28441-ZH8-801

SPRING, FRICTION

Note: Use from Engine SN 8805658.

$4.49

$

Usually ships in 3-6 days

0

18

Honda 28443-ZH8-801

SPRING, RETURN

Note: Use from Engine SN 8805658.

$3.99

$

In Stock, only 1 left!

0

19

Honda 90003-ZH8-801

SCREW, SETTING

Note: Use from Engine SN 8805658.

$4.99

$

In Stock, only 1 left!

0
