WT20 X C (GX140) - Honda Water Pump, Made in Japan (SN: GX140-1000001 - GX140-9999999) WT20X MUFFLER Parts Diagram

Water Pump, Made in Japan

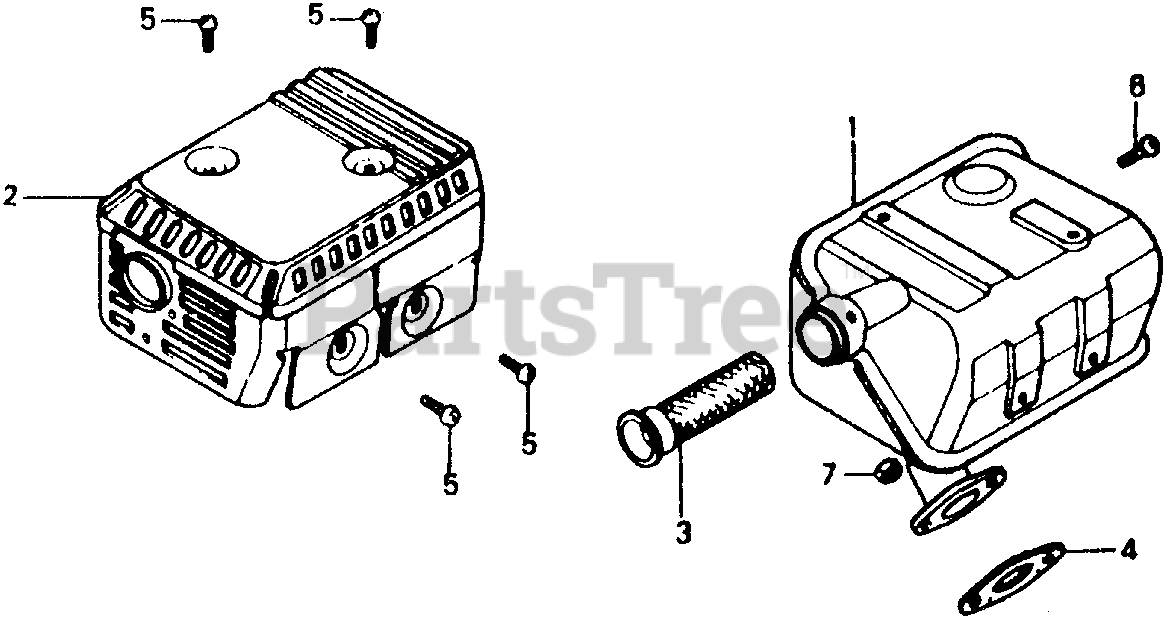

WT20X MUFFLER Parts Diagram

  • Title
1

Honda 183A1-ZE1-811

MUFFLER (ARRESTER) Use up to Engine SN 1870782.

$

$

Not available

1

Honda 18310-ZE1-811

MUFFLER (ARRESTER) Use from Engine SN 1870783.

$

$

Not available

1

Honda 18310-ZF1-000

SEE PART DETAILS - PRI; MUFFLER

$97.99

$

In Stock, only 2 left!

0

2

Honda 18320-ZH8-W01

SEE PART DETAILS - SUP; PROTECTOR, MUFFLER
(Superseded to 18320-ZH8-W02)

$41.99

$

In Stock, only 1 left!

0

3

Honda 18355-ZE1-000

ARRESTER, SPARK

$15.99

$

In Stock, only 1 left!

0

4

Honda 18381-ZE1-800

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-ZE1-801)

$4.49

$

In Stock, only 1 left!

0

5

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

6

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

$1.49

$

In Stock, Qty 13

0

7

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0
