WT20 X C (GX140) - Honda Water Pump, Made in Japan (SN: GX140-1000001 - GX140-9999999) WT20X GOVERNOR ARM + CONTROL Parts Diagram

Water Pump, Made in Japan

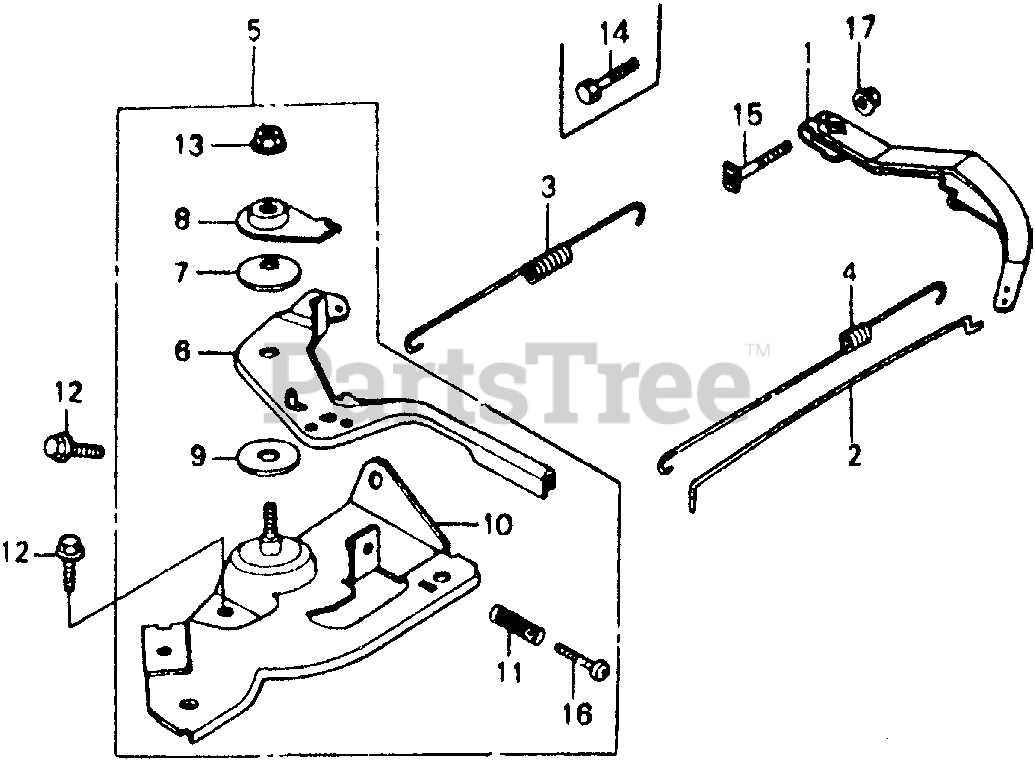

WT20X GOVERNOR ARM + CONTROL Parts Diagram

  • Title

1

Honda 16551-ZE0-010

SEE PART DETAILS - PRI; ARM, GOVERNOR

$15.99

$

Usually ships in 3-6 days

0

1

Honda 16551-ZE1-010

SEE PART DETAILS - SUP; ARM, GOVERNOR

$15.99

$

Usually ships in 3-6 days

0

2

Honda 16555-ZE1-000

ROD, GOVERNOR

$4.99

$

In Stock, only 4 left!

0

3

Honda 16561-ZE1-020

SPRING, GOVERNOR

$5.49

$

In Stock, only 2 left!

0

4

Honda 16562-ZE1-020

SPRING, THROTTLE RETURN

$3.99

$

In Stock, Qty 17

0

5

Honda 16570-ZE1-010

SEE PART DETAILS - SUP; CONTROL ASSY.

$

$

Currently unavailable

6

Honda 16571-ZH8-020

SEE PART DETAILS - PRI; LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

7

Honda 16574-ZE1-000

SPRING, LEVER

$4.49

$

In Stock, only 2 left!

0

8

Honda 16575-ZH8-000

WASHER, CONTROL LEVER

$5.99

$

Usually ships in 3-6 days

0

9

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

$5.49

$

In Stock, only 4 left!

0

10

Honda 16580-ZH8-000

SEE PART DETAILS - SUP; BASE, CONTROL

$

$

Currently unavailable

11

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

13

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 92101-06020-0A

BOLT, HEX. (6X20)

Note: Use up to Engine SN 1770357.

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: Use from Engine SN 1770358.

$3.49

$

In Stock, only 3 left!

0

16

Honda 93500-05020-0H

SCREW, PAN (5X20)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
