WT20 X C (GX140) - Honda Water Pump, Made in Japan (SN: GX140-1000001 - GX140-9999999) WT20X FUEL TANK Parts Diagram

Water Pump, Made in Japan

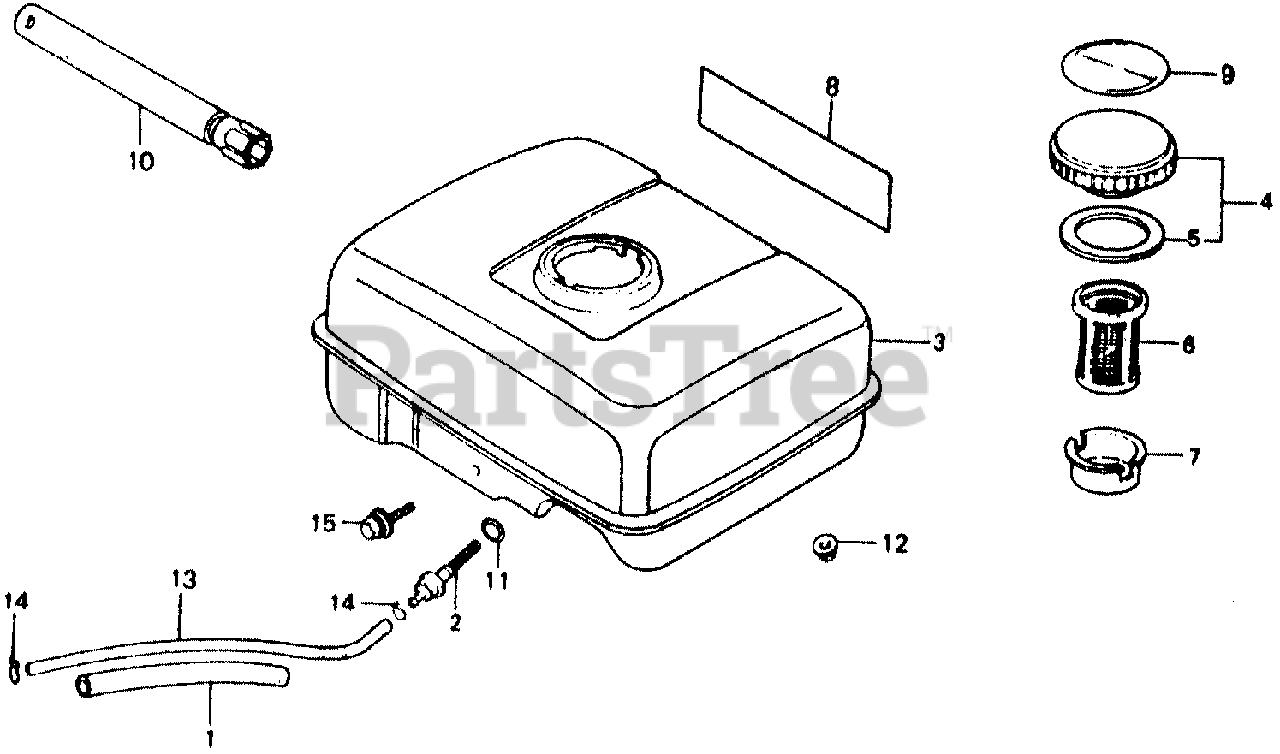

WT20X FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, Qty 14

0

2

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE1-020ZA

SEE PART DETAILS - SUP; TANK, FUEL *NH31* (MCKINLEY WHITE)
(Superseded to 17510-ZE1-030ZA)

$176.99

$

Usually ships in 3-6 days

0

4

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

$

$

Not available

5

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

$

$

Not available

6

Honda 17672-880-000

FILTER, FUEL

$13.99

$

Usually ships in 3-6 days

0

7

Honda 17673-893-000

HOLDER, FUEL FILTER

$14.99

$

In Stock, only 1 left!

0

8

Honda 78145-YB1-701

MARK (WT20X)

$

$

Not available

9

Honda 87522-ZE1-810

MARK, CAUTION (EXTERNAL)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 89218-ZE1-000

WRENCH, SPARK PLUG

Note: Use from Engine SN 1723049.

$20.99

$

Usually ships in 3-6 days

0

11

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

12

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

$54.99

$

In Stock, only 4 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

15

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

In Stock, Qty 8

0
