WT20 C (G200) - Honda Water Pump, Made in Japan (SN: G200-1867068 - G200-9999999) WHEEL KIT Parts Diagram

Water Pump, Made in Japan

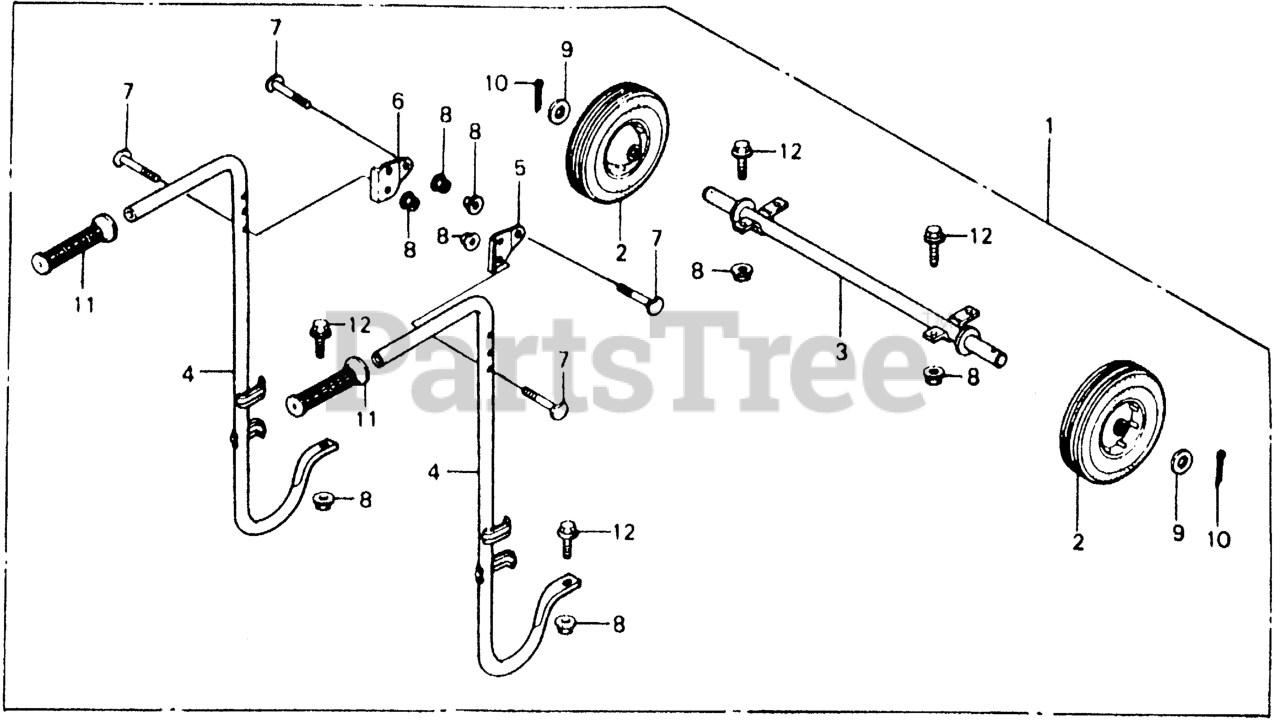

WHEEL KIT Parts Diagram

  • Title

1

Honda 06710-YB1-000

SEE PART DETAILS - PRI; WHEEL KIT (2-WHEELS)

Note: (Optional)

$

$

Currently unavailable

2

Honda 42710-899-801

WHEEL (GLEASON 10"X2.75"=254X70)

Note: (Optional)

$64.99

$

Usually ships in 3-6 days

0

3

Honda 42730-899-800

SHAFT, WHEEL

Note: (Optional)

$

$

Not available

4

Honda 53110-899-800

HANDLE, CARRY

Note: (Optional)

$

$

Currently unavailable

5

Honda 53112-899-800

SEE PART DETAILS - SUP; HOLDER, R. HANDLE

Note: (Optional)

$

$

Not available

6

Honda 53113-899-800

HOLDER, L. HANDLE

Note: (Optional)

$

$

Currently unavailable

7

Honda 90109-VB5-800

SEE PART DETAILS - PRI; BOLT, HANDLE HOLDER (8X36)

Note: (Optional)

$0.99

$

In Stock, only 4 left!

0

8

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

9

Honda 94102-20000

WASHER, PLAIN (20MM)

Note: (Optional)

$1.49

$

In Stock, Qty 8

0

10

Honda 94201-40280

PIN, SPLIT (4.0X28)

Note: (Optional)

$1.49

$

In Stock, Qty 5

0

10

Honda 94201-40300

SEE PART DETAILS - PRI; PIN, COTTER (4.0X30)

Note: (Optional)

$1.49

$

In Stock, Qty 5

0

11

Honda 95011-14100

GRIP D, R. HANDLE (BOTH SIDES)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

12

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: (Optional)

$2.49

$

In Stock, Qty 6

0
