WT20 C (G200) - Honda Water Pump, Made in Japan (SN: G200-1867068 - G200-9999999) POINTS@IGNITION COIL Parts Diagram

Water Pump, Made in Japan

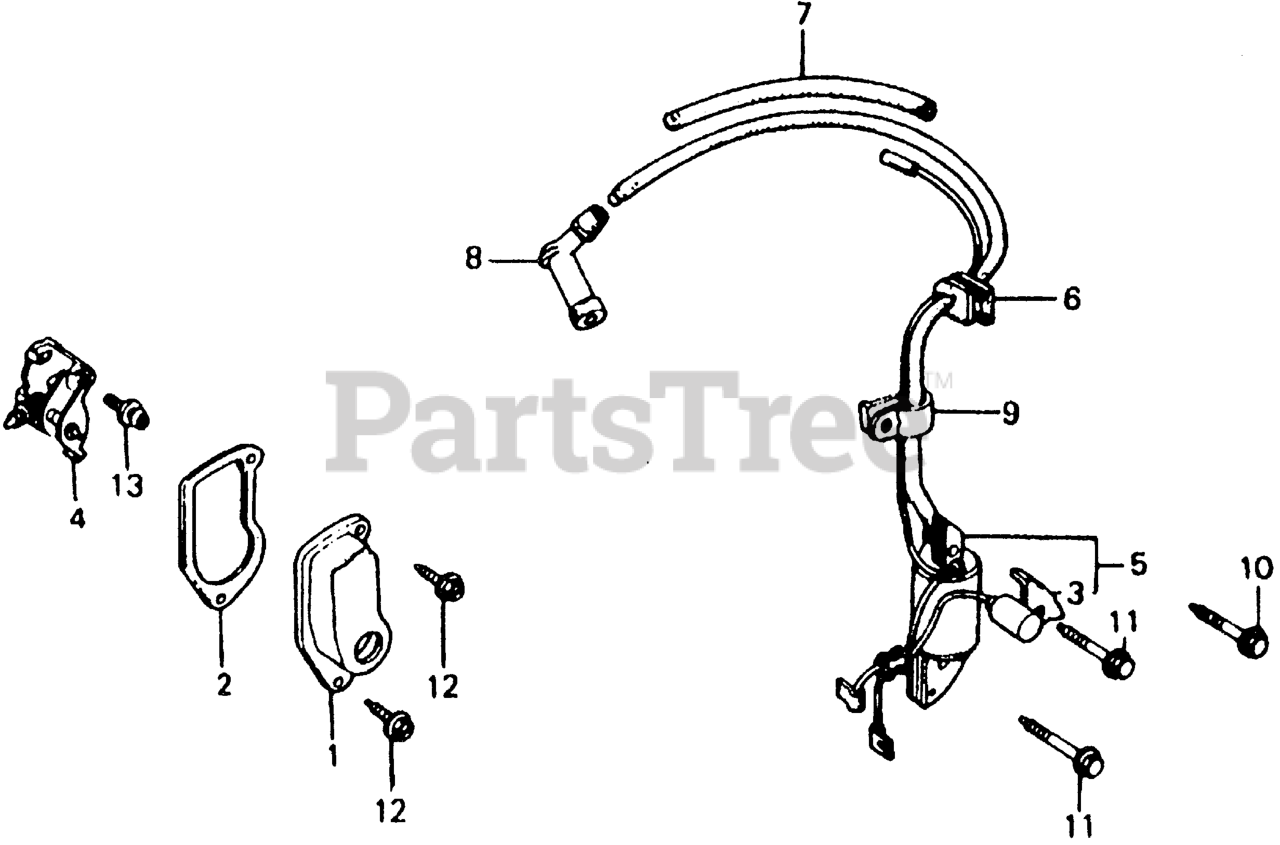

POINTS@IGNITION COIL Parts Diagram

  • Title
1

Honda 30211-883-000

COVER, POINTS (Honda Code 0636720).

$

$

Not available

2

Honda 30215-883-000

SEE PART DETAILS - SUP; GASKET, POINT COVER (Honda Code 0636738). (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 30251-883-003

CONDENSER (Honda Code 1002237).

$22.99

$

In Stock, only 1 left!

0

4

Honda 30280-883-005

POINTS ASSY. (Honda Code 0636746).

$35.99

$

Usually ships in 3-6 days

0

5

Honda 30560-883-015

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (Honda Code 0649491).

$148.99

$

Usually ships in 3-6 days

0

6

Honda 30563-883-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

7

Honda 30565-728-000

SEE PART DETAILS - PRI; TUBE, IGNITION RUBBER

$11.99

$

Usually ships in 3-6 days

0

8

Honda 30700-865-003

CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 2 left!

0

12

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90051-883-000

SCREW-WASHER (5X12) (Honda Code 0649699).

$2.49

$

Usually ships in 3-6 days

0
