WT20 C (G200) - Honda Water Pump, Made in Japan (SN: G200-1867068 - G200-9999999) CYLINDER HEAD@CYLINDER Parts Diagram

Water Pump, Made in Japan

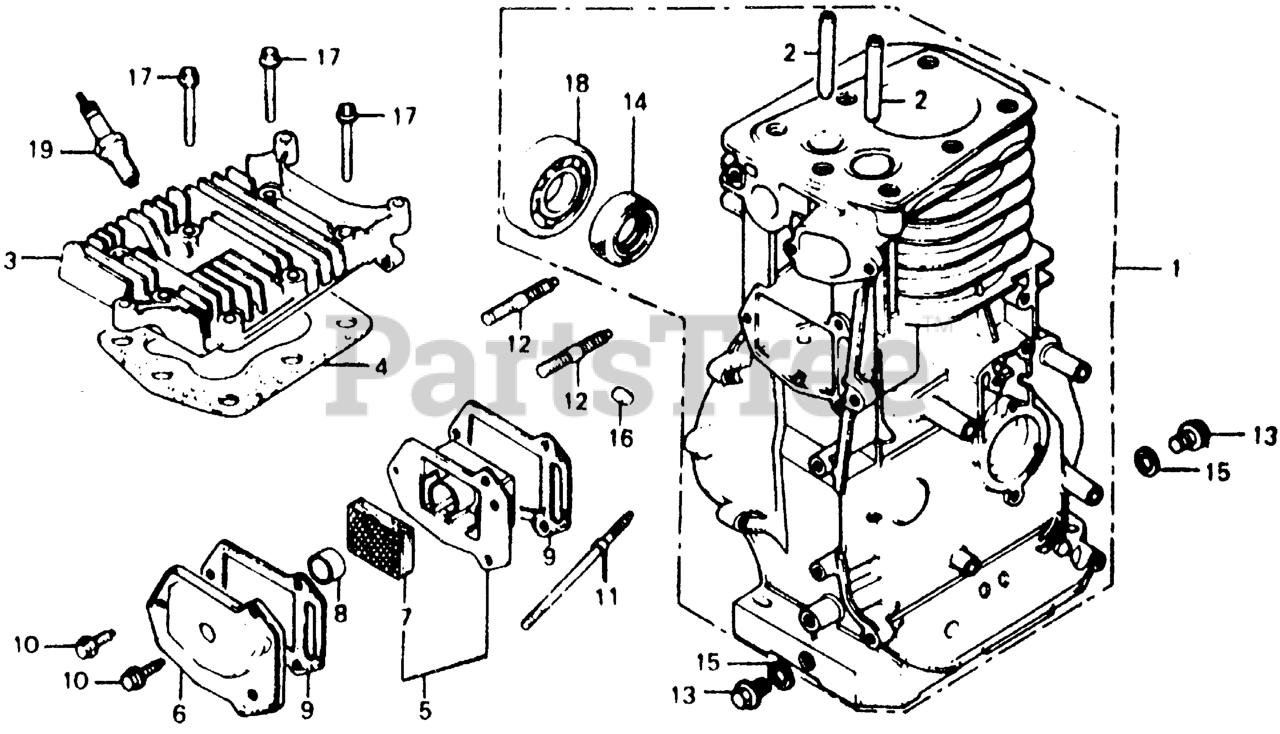

CYLINDER HEAD@CYLINDER Parts Diagram

  • Title

1

Honda 12000-883-345

SEE PART DETAILS - PRI; CYLINDER ASSY. (Honda Code 1010164).

$

$

Currently unavailable

2

Honda 12133-883-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

Note: (Optional)

$17.99

$

Usually ships in 3-6 days

0

2

Honda 12134-883-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE)
(Superseded to 12133-883-306)

Note: (Optional)

$17.99

$

Usually ships in 3-6 days

0

3

Honda 12221-883-325

SEE PART DETAILS - SUP; CYLINDER HEAD (Honda Code 1010172).

$

$

Currently unavailable

4

Honda 12281-883-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD (Honda Code 4328340).
(Superseded to 12281-883-801)

$30.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 4917209).

$30.99

$

Usually ships in 3-6 days

0

5

Honda 12360-883-010

SEE PART DETAILS - PRI; CASE, BREATHER (Honda Code 1037902).

$13.99

$

Usually ships in 3-6 days

0

6

Honda 12361-883-000

COVER, TAPPET ROOM (Honda Code 0635540).

$15.99

$

Usually ships in 3-6 days

0

7

Honda 12367-883-003

SEE PART DETAILS - PRI; FILTER, BREATHER (Honda Code 1083484).

$3.99

$

Usually ships in 3-6 days

0

8

Honda 12369-883-000

SEAL, BREATHER (Honda Code 1037910).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 12375-883-000

GASKET, TAPPET COVER Use up to Engine SN 1556857.

$4.49

$

In Stock, only 2 left!

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

11

Honda 90043-883-010

SEE PART DETAILS - PRI; BOLT, STUD (6X96) (Honda Code 0649681).

$6.99

$

Usually ships in 3-6 days

0

12

Honda 90047-883-000

BOLT, STUD (8X35) (Honda Code 0636894).

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, only 2 left!

0

14

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$8.99

$

In Stock, only 4 left!

0

15

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 12

0

16

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

17

Honda 95701-08045-08

BOLT, FLANGE (8X45) (Honda Code 2602258).

$2.99

$

In Stock, only 4 left!

0

18

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$24.99

$

In Stock, only 1 left!

0

19

Honda 98076-54716

SEE PART DETAILS - PRI; SPARK PLUG (BR-4HS) (NGK) (Honda Code 0649830).

$3.49

$

In Stock, Qty 11

0
