WT20 C (G200) - Honda Water Pump, Made in Japan (SN: G200-1867068 - G200-9999999) CRANKCASE COVER Parts Diagram

Water Pump, Made in Japan

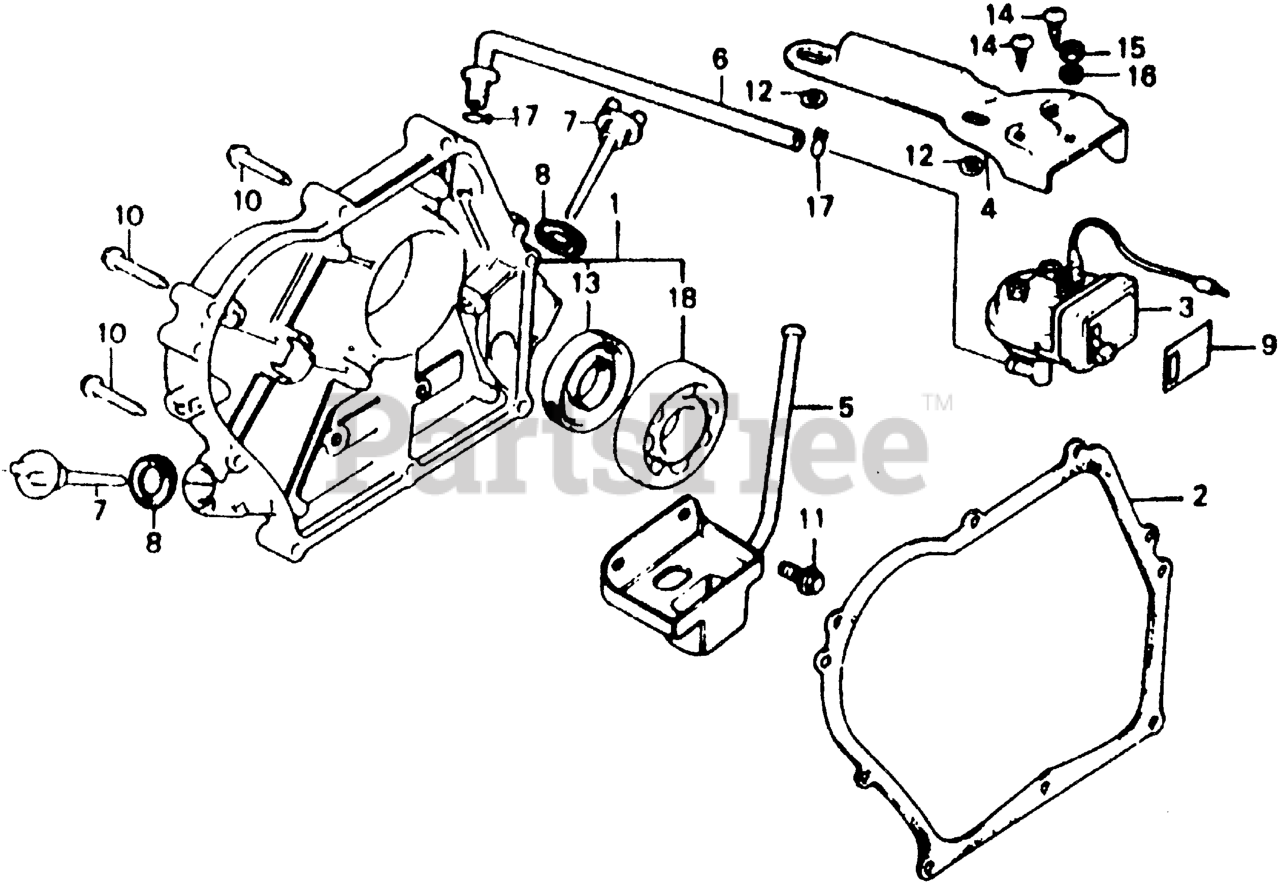

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-883-860

COVER ASSY., CRANKCASE (EGZ-TYPE) (Honda Code 1237486).

$

$

Not available

2

Honda 11381-883-800

SEE PART DETAILS - PRI; GASKET, COVER (Honda Code 4514899).

$12.99

$

Usually ships in 3-6 days

0

3

Honda 15520-883-881

SWITCH ASSY., UNIT (Honda Code 1237536).

$105.99

$

Usually ships in 3-6 days

0

4

Honda 15521-883-890

BRACKET, UNIT SWITCH (Honda Code 1108166).

$35.99

$

Usually ships in 3-6 days

0

5

Honda 15525-883-891

SEE PART DETAILS - PRI; CUP, OIL

$

$

Not available

6

Honda 15530-883-891

TUBE, OIL ALERT (Honda Code 1108174).

$22.99

$

Usually ships in 3-6 days

0

7

Honda 15620-883-010

CAP, OIL (Honda Code 0636233).

$

$

Not available

8

Honda 15621-896-010

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP Use from Engine SN 1391010.

$5.49

$

In Stock, Qty 5

0

9

Honda 87522-883-660

SEE PART DETAILS - PRI; MARK, CAUTION (ENGLISH/FRENCH)(SPANISH) (Honda Code 0636811).

$4.99

$

In Stock, Qty 9

0

10

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 1 left!

0

11

Honda 90061-161-000

BOLT, FLANGE (6X16) (Honda Code 0810069).

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90581-831-650

SEE PART DETAILS - PRI; WASHER (18MM) (Honda Code 0166454).

$2.49

$

Usually ships in 3-6 days

0

13

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$8.99

$

In Stock, Qty 8

0

14

Honda 93903-25180

SEE PART DETAILS - PRI; SCREW, TAPPING (5X10) (Honda Code 0565218).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94001-050800S

NUT, HEX. (5MM)
(Superseded to 94001-05080-0S)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0251215).

$1.49

$

Usually ships in 3-6 days

0

17

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

$2.49

$

In Stock, Qty 5

0

18

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$24.99

$

In Stock, only 3 left!

0
