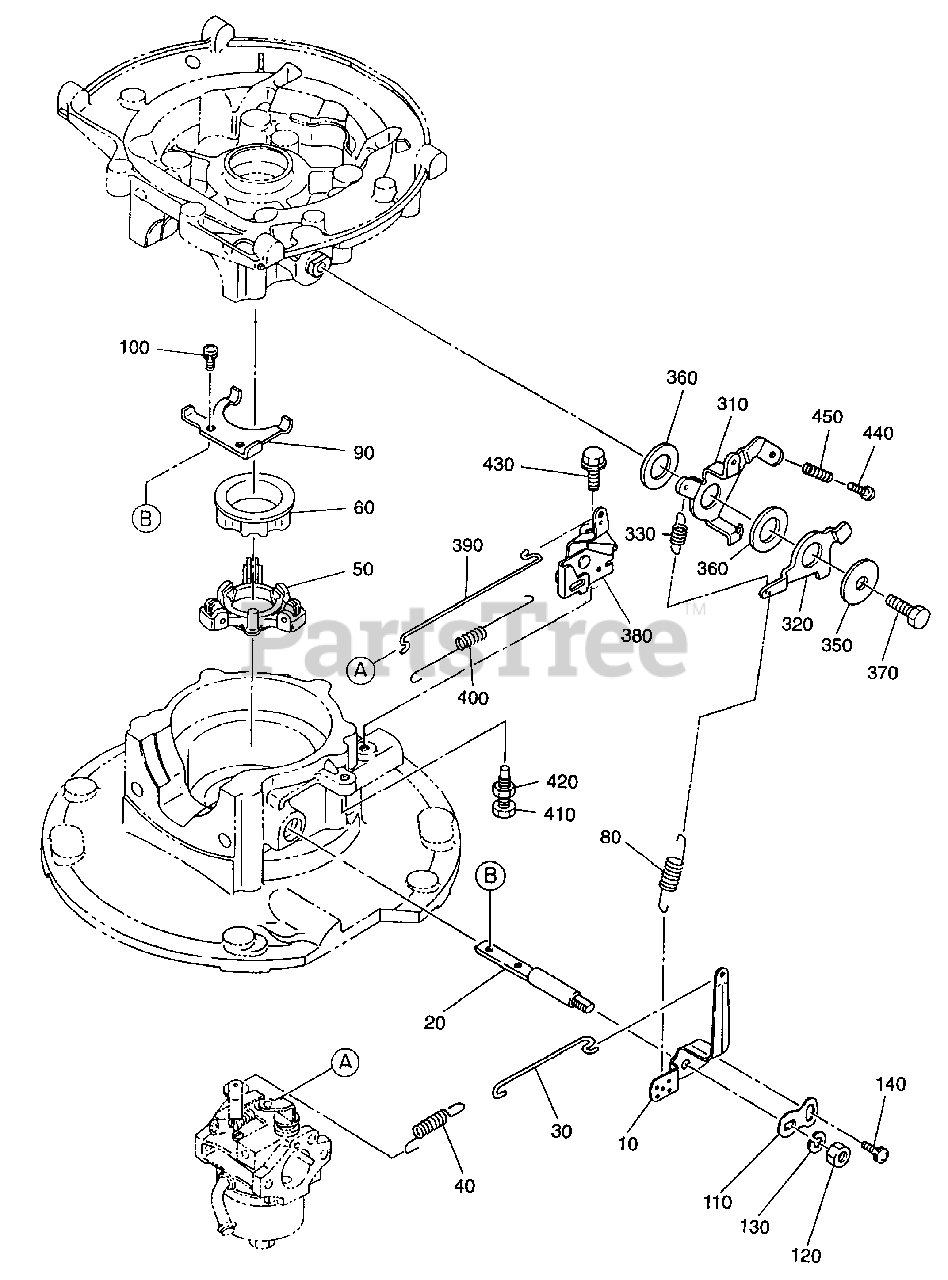

WT1-125V (29593) - Snapper Engine, Made by Robin Subaru, 4hp Governor, Operation Parts Diagram

Engine, Made by Robin Subaru, 4hp

Governor, Operation Parts Diagram

  • Title
10

Snapper 157-42304-03

GOVERNOR LEVER

$

$

Currently unavailable

20

Snapper 157-42201-03

GOVERNOR SHAFT

$

$

Not available

30

Snapper 214-42701-01

GOVERNOR ROD CP

$

$

Not available

40

$

$

Not available

50

Snapper 157-41701-01

GOVERNOR PLATE CP

$

$

Not available

60

Snapper 157-41901-03

GOVERNOR SLEEVE

$

$

Currently unavailable

80

Snapper 157-42505-03

GOVERNOR SPRING

$

$

Not available

90

Snapper 157-42101-03

GOVERNOR YOKE

$

$

Not available

100

Snapper 004-35040-60

SCREW & WASHER ASSY

$

$

Currently unavailable

110

Snapper 157-42401-03

ADJUSTING PLATE

$

$

Currently unavailable

$

$

Not available

130

Snapper 003-20060-00

SPRING WASHER

$

$

Not available

140

Snapper 004-36040-80

SCREW & WASHER ASSY

$

$

Currently unavailable

310

Snapper 157-43313-03

SPEED CONTROL LEVER

$

$

Not available

320

Snapper 157-43314-13

CONTROL LEVER

$

$

Currently unavailable

330

Snapper 157-47001-03

TENTION SPRING

$

$

Not available

$

$

Currently unavailable

$

$

Not available

$

$

Not available

380

Snapper 157-43812-01

CHOKE LEVER CP

$

$

Not available

390

Snapper 157-45202-01

CHOKE ROD CP

Note: Was 157-45201-01

$

$

Not available

400

$

$

Not available

410

Snapper 157-47301-01

SET BOLT CP

$

$

Not available

$

$

Not available

430

Snapper 011-00600-10

FLANGE BOLT

$

$

Not available

440

Snapper 004-31041-60

SCREW, PANHEAD

$

$

Not available

450

Snapper 230-49003-13

SPRING (ADJUSTER)

$

$

Not available
