WT1-125V (29593) - Snapper Engine, Made by Robin Subaru, 4hp Electric Device Parts Diagram

Engine, Made by Robin Subaru, 4hp

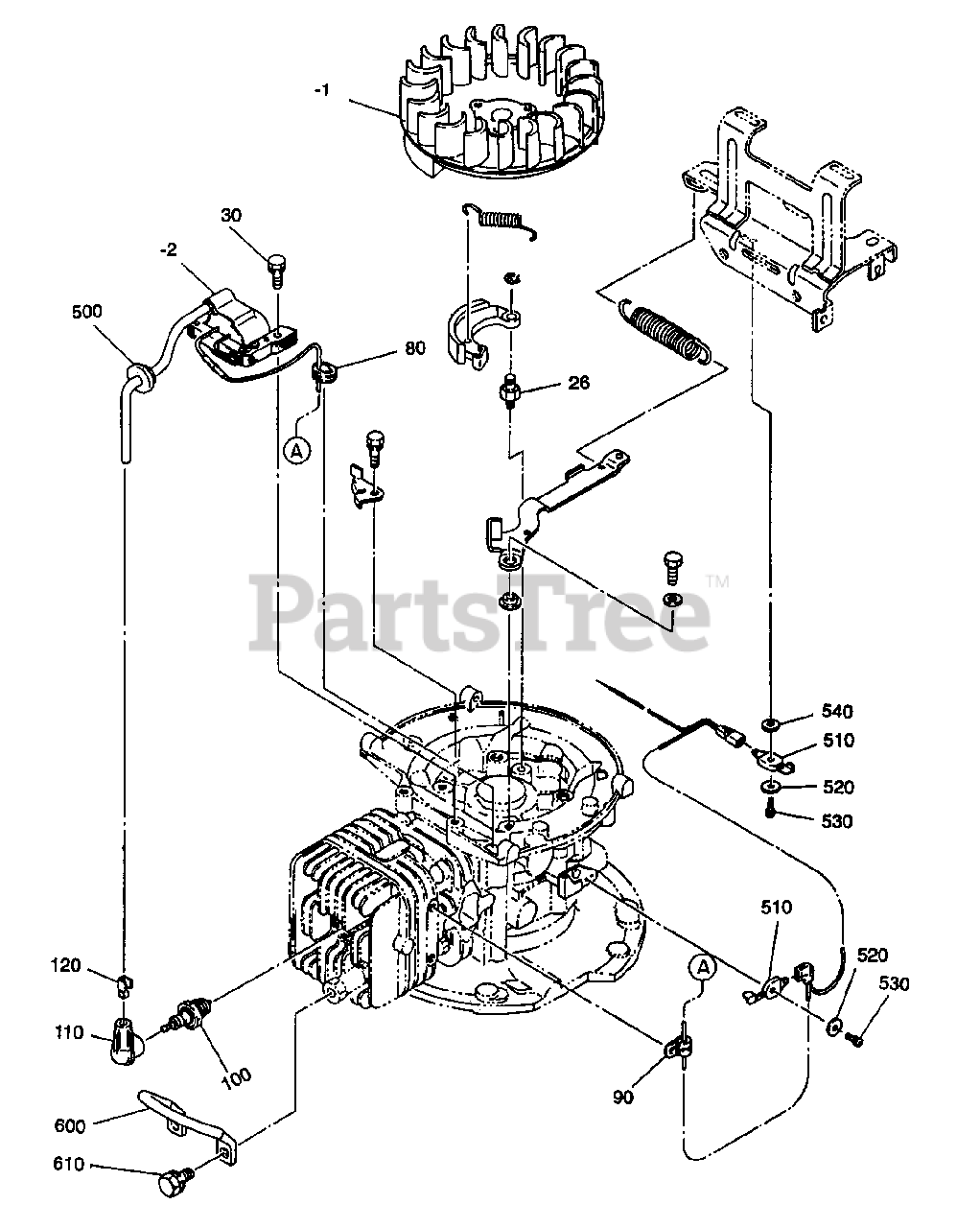

Electric Device Parts Diagram

  • Title

--

Snapper 157-70202-10

MAGNETO ASSY (Includes 1 & 2)(Not shown)

Note: (Code No. 2466 & up)

$

$

Currently unavailable

--

Snapper 157-70202-00

MAGNETO ASSY (Includes 1 & 2)(Not shown)

Note: (Code No. 2465 & below)

$

$

Currently unavailable

1

Snapper 157-79272-01

FLY WHEEL

Note: Was 157-79272-08

$

$

Not available

2

Snapper 157-79473-28

IGNITION COIL CP

Note: (Code No. 2466 & up)

$

$

Currently unavailable

2

Snapper 157-79473-31

IGNITION COIL CP

Note: Was 157-79473-18 (Code No. 2465 & below)

$

$

Not available

26

Snapper 157-86701-01

BOLT, Pivot

$

$

Not available

30

Snapper 001-10062-00

BOLT AND WASHER ASSY

$

$

Not available

80

Snapper 157-75002-03

GROMMET

$

$

Not available

90

Snapper 214-79006-01

CLAMP CP

$

$

Not available

100

Snapper 065-01413-70

SPARK PLUG

Note: Was 065-01404-60

$3.99

$

In Stock, Qty 20+

0

110

Snapper 230-75101-13

SPARK PLUG CAP

$

$

Not available

120

Snapper 065-90000-10

PLUG TERMINAL

Note: Was 065-50001-00

$

$

Not available

500

Snapper 157-75001-03

GROMMET

$

$

Currently unavailable

510

Snapper 226-72706-11

STOP SWITCH CP

Note: Was 226-72705-11

$

$

Not available

520

Snapper 003-11040-00

WASHER

$

$

Not available

530

Snapper 004-35041-20

SCREW AND WASHER ASSY

$

$

Not available

540

Snapper 003-11060-00

WASHER

$

$

Not available

600

Snapper 157-76001-01

PLUG GUARD CP

$

$

Not available

610

Snapper 001-65081-20

BOLT

$

$

Not available
