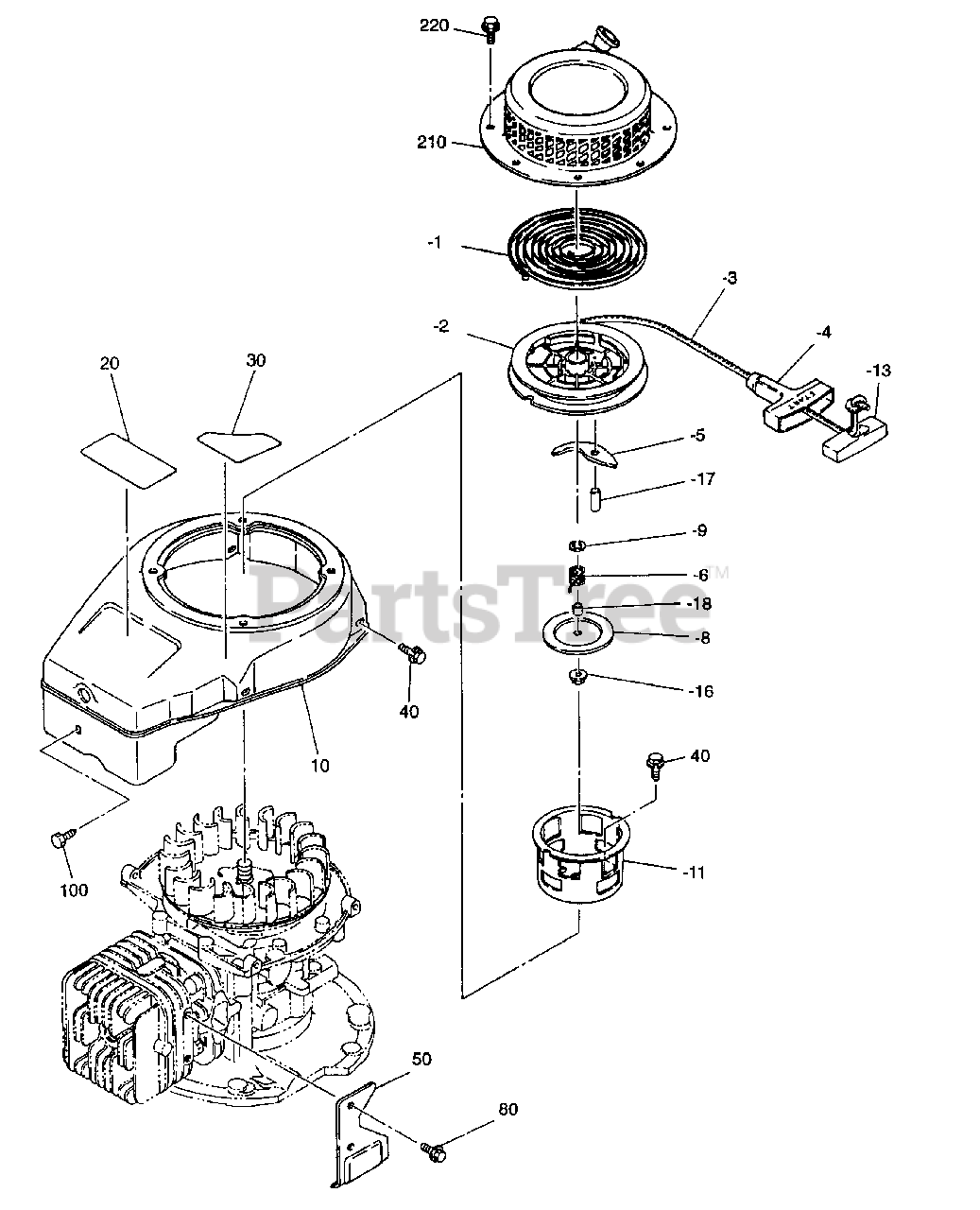

WT1-125V (29593) - Snapper Engine, Made by Robin Subaru, 4hp Cooling, Starting Parts Diagram

Engine, Made by Robin Subaru, 4hp

Cooling, Starting Parts Diagram

  • Title
10

Snapper 157-51503-06

BLOWER HOUSING CP

Note: Was 157-51530-01

$

$

Not available

20

Snapper 157-91710-03

LABEL (TRADE MARK)

$

$

Not available

30

Snapper 073-20039-00

LABEL (WARNING)

$

$

Currently unavailable

40

Snapper 001-10061-20

BOLT AND WASHER ASSY

$

$

Not available

50

Snapper 157-52601-03

CYLINDER BAFFLE

$

$

Not available

80

Snapper 011-00600-10

FLANGE BOLT

$

$

Not available

100

Snapper 015-20600-70

TAPPING BOLT

$

$

Not available

210

Snapper 157-50401-00

RECOIL STARTER ASSY

$

$

Not available

1

Snapper 215-50515-08

SPIRAL SPRING

$51.99

$

Usually ships in 2-12 days

0

2

Snapper 226-50123-08

REEL (Pro-PoIy)

$

$

Not available

3

Snapper 226-50113-08

STARTER ROPE

$19.99

$

Usually ships in 2-12 days

0

4

Snapper 226-50100-08

STARTER KNOB

Note: Was 227-50100-08

$

$

Not available

5

Snapper 226-50125-08

RATCHET V SNAPPER

$

$

Not available

6

Snapper 215-50630-08

FRICTION SPRING

$10.99

$

In Stock, only 1 left!

0

8

Snapper 215-50540-08

FRICTION PLATE

$

$

Not available

9

Snapper 215-50560-08

THRUST WASHER

$

$

Not available

11

Snapper 157-50445-08

STARTER PULLEY

$

$

Not available

13

$

$

Not available

16

$

$

Not available

17

Snapper 215-50555-08

RATCHET PIN

$

$

Not available

18

$

$

Not available

220

Snapper 011-00600-10

FLANGE BOLT

$

$

Not available
