WT 3100 - Weed Eater Wheeled Trimmer Engine Parts Diagram

Wheeled Trimmer

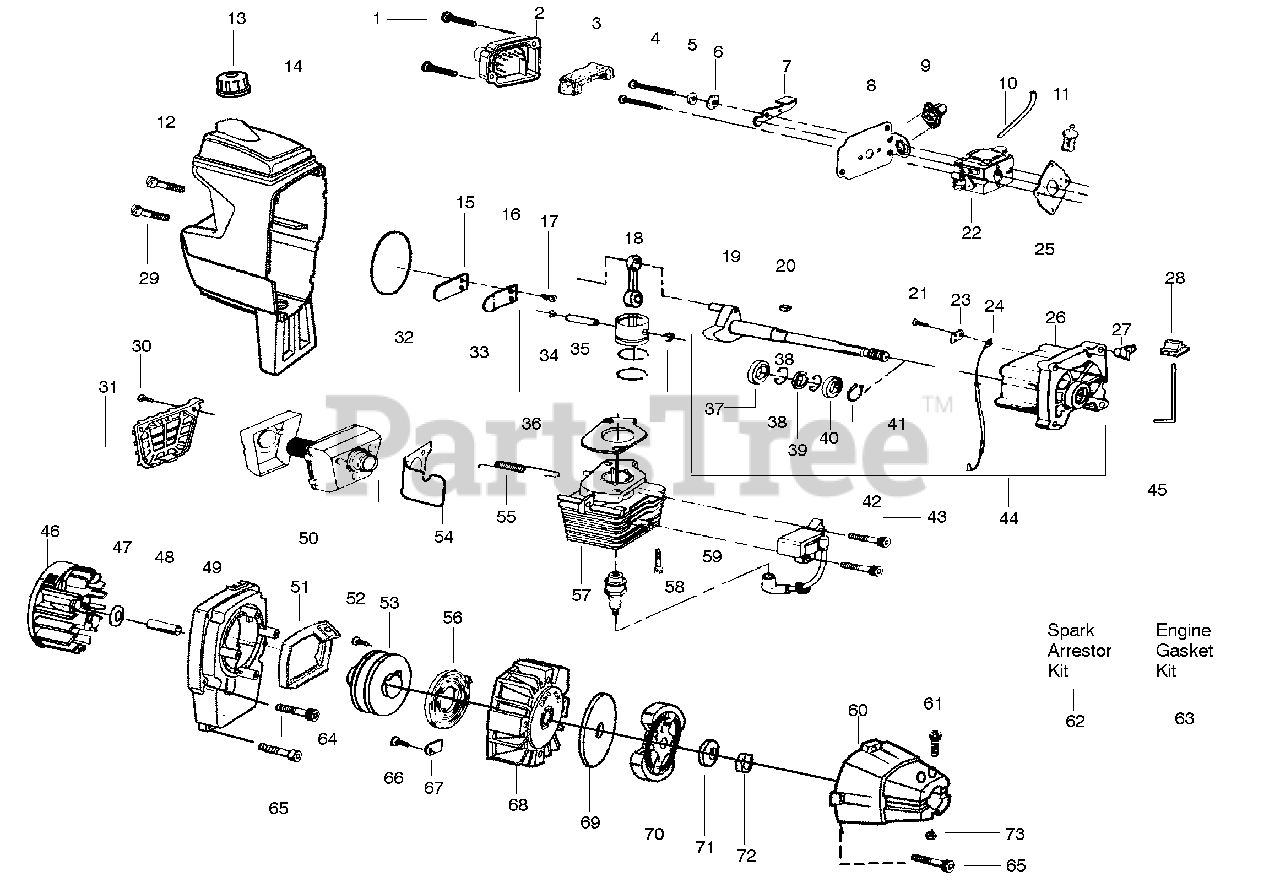

Engine Parts Diagram

  • Title

1

Poulan 530015650

Screw

$

$

Not available

2

Poulan 530054589

Cover-Air Filter

$

$

Not available

3

Poulan 530054627

Foam-Air Filter

$4.99

$

In Stock, only 1 left!

0

4

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530015852

Spacer-Choke

$3.49

$

In Stock, only 1 left!

0

6

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

7

Poulan 530038103

Shutter-Choke

$

$

Not available

8

Poulan 530054594

Plate-Choke

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 530047721

Assy-Bulb

$9.49

$

Usually ships in 3-10 days

0

10

Poulan 530069599

Kit-Fuel Line

$7.49

$

In Stock, only 2 left!

0

11

Poulan 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 19

0

12

Poulan 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

13

Poulan 530014347

Assy-Fuel Cap.

$9.49

$

In Stock, Qty 15

0

14

Poulan 530054651

Assy-Shroud/Tank

$

$

Not available

15

Poulan 530027593

Valve-Reed

$6.49

$

In Stock, only 2 left!

0

16

Poulan 530054596

Stop-Reed Valve

$

$

Not available

17

Poulan 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

18

Poulan 530010960

Assy-Connecting Rod

$18.99

$

Usually ships in 3-10 days

0

19

Poulan 530010934

Assy-Crankshaft

$34.99

$

Usually ships in 3-10 days

0

20

Poulan 530015126

Key-Flywheel

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

22

Poulan 530071332

Kit-Carburetor Ass'y., (WT-583)

$80.99

$

Usually ships in 3-10 days

0

22

Poulan 530071638

Kit-Carburetor Ass'y., (WT-629)

$80.99

$

Usually ships in 3-10 days

0

23

Poulan 530027546

Insulator-Switch

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 530027547

Assy-Leadwire

$

$

Not available

25

Poulan 530069276

Gasket-Carb.(kit)

$

$

Not available

26

Poulan 530012514

Assy-Crankcase
(Superseded to 545081901)

Note: (Incls. 37-40)

$

$

Not available

27

Poulan 530027545

Ramp-Switch

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530038309

Cover-Switch

$4.99

$

In Stock, Qty 8

0

29

Poulan 530015771

Screw

$6.49

$

In Stock, Qty 6

0

30

Poulan 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530027781

Guard-Muffler

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530069276

O-ring-C'case(kit)

$

$

Not available

33

Poulan 530071999

Kit-Piston

Note: (Incls. 34, 35 & Pin)

$36.99

$

In Stock, only 1 left!

0

34

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

35

Poulan 530012595

Piston Ring (2)

$

$

Not available

36

Poulan 530069276

Gasket-Cyl. (kit)

$

$

Not available

37

Poulan 530032103

Bearing-Inner

$

$

Not available

38

Poulan 530015787

Ring-Retaining

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530019158

Seal-Crankshaft

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 530032102

Bearing-Outer

$

$

Not available

41

Poulan 530015789

Retaining Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

42

Poulan 530039134

Module-Ignition

$

$

Not available

43

Poulan 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

44

Poulan 530071705

Assy-C'case/C'shaft

Note: (Incls.19, 26 & 37-41)

$37.99

$

Usually ships in 3-10 days

0

45

Poulan 530027959

Spring-Switch

$

$

Not available

46

Poulan 530039189

Assy-Flywheel

$

$

Not available

47

Poulan 530016030

Washer

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530027511

Spacer-Clutch

$8.99

$

Usually ships in 3-10 days

0

49

Poulan 530027948

Housing-Fan

$15.99

$

Usually ships in 3-10 days

0

50

Poulan 530069310

Kit-Muffler

$

$

Not available

51

Poulan 530054723

Assy-Retainer/Eyelet

$4.99

$

Usually ships in 3-10 days

0

52

Poulan 530016392

Screw

$4.99

$

Usually ships in 3-10 days

0

53

Poulan 530071387

Kit-Starter Pulley

Note: (Incls. 52)

$

$

Not available

54

Poulan 530053346

Heat Shield/Air Dam
(Superseded to 530058957)

$6.49

$

In Stock, only 2 left!

0

55

Poulan 530036409

Spring-Muffler

$

$

Not available

56

Poulan 530027531

Spring-Starter
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

57

Poulan 530071581

Kit-Cylinder

$78.99

$

Usually ships in 3-10 days

0

58

Poulan 952030249

Spark Plug (RCJ-6Y)

$4.49

$

In Stock, Qty 20+

0

59

Poulan 530001624

Screw

$3.99

$

Usually ships in 3-10 days

0

60

Poulan 530014017

Assy-Clutch Housing

$37.99

$

In Stock, only 1 left!

0

61

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

62

Poulan 952701612

Kit-Spark Arrestor

$

$

Not available

63

Poulan 530069276

Kit-Engine Gasket

Note: (Incls. 25, 32 & 36)

$

$

Not available

64

Poulan 530016315

Screw

$2.49

$

Usually ships in 3-10 days

0

65

Poulan 530015770

Screw

$

$

Not available

66

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

67

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

68

Poulan 530014009

Assy-Pulley Housing

$

$

Not available

69

Poulan 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

70

Poulan 530069254

Kit-Clutch Ass'y.

$

$

Not available

71

Poulan 530015796

Washer-Bevel

$3.99

$

Usually ships in 3-10 days

0

72

Poulan 530016320

Nut

$

$

Not available

73

Poulan 530015768

Locknut.

$6.49

$

In Stock, only 2 left!
