WT-30 - Toro 30" Tiller Attachment (1960) SC-15 AERATOR PARTS LIST Parts Diagram

30" Tiller Attachment

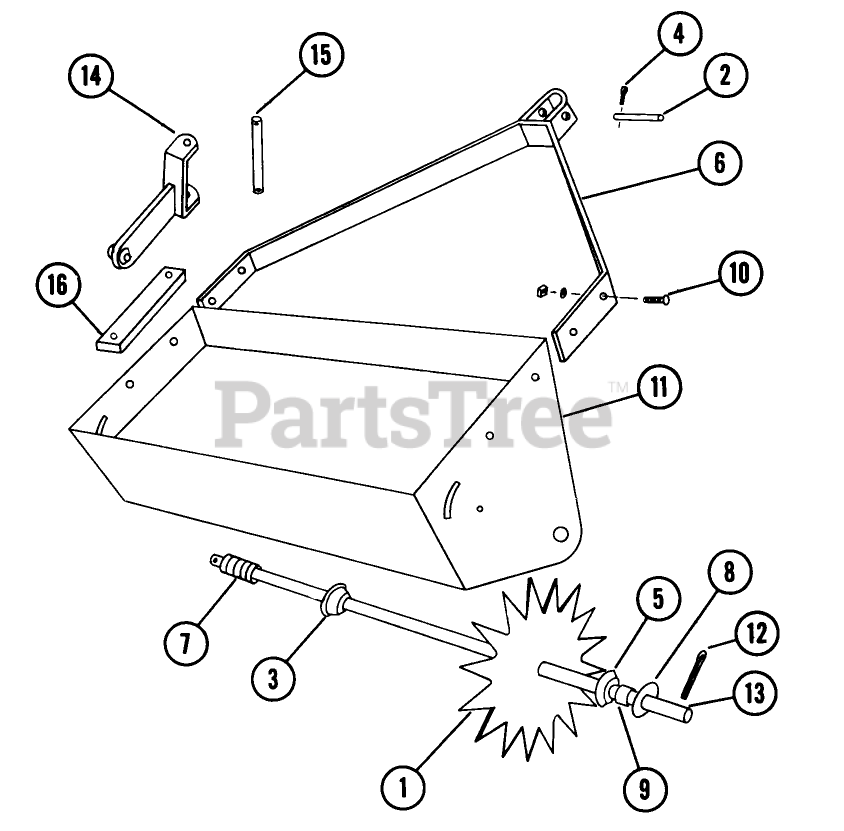

SC-15 AERATOR PARTS LIST Parts Diagram

  • Title
1

Toro E-15

10" Spike Disc

$

$

Currently unavailable

2

Toro E-16

Draw Pin

$

$

Currently unavailable

3

Toro E-17

Universal Spacer

$

$

Currently unavailable

4

Toro E-18

Cotter Pin, 1/8 x 1

$

$

Currently unavailable

5

Toro E-19

Small End Spacer

$

$

Currently unavailable

6

Toro E-20

Draw Bar

$

$

Currently unavailable

7

Toro E-21

Spring, 3"

$

$

Currently unavailable

8

Toro E-22

Washer, outside

$

$

Currently unavailable

9

Toro E-26

Axle Bushing

$

$

Currently unavailable

10

Toro E-27

Stove Bolt w/Nut and Lockwasher

$

$

Currently unavailable

11

Toro E-29

Pan

$

$

Currently unavailable

12

Toro E-30

Cotter Pin, 3/16 X 2

$

$

Currently unavailable

13

Toro E-31

Axle

$

$

Currently unavailable

14

Toro E-32

Ball Hitch

$

$

Currently unavailable

15

Hitch Bar

$

$

Not available

16

Hitch Pin

$

$

Not available
