WT-30 - Toro 30" Tiller Attachment (1960) PLOW & COULTER PP-107 Parts Diagram

30" Tiller Attachment

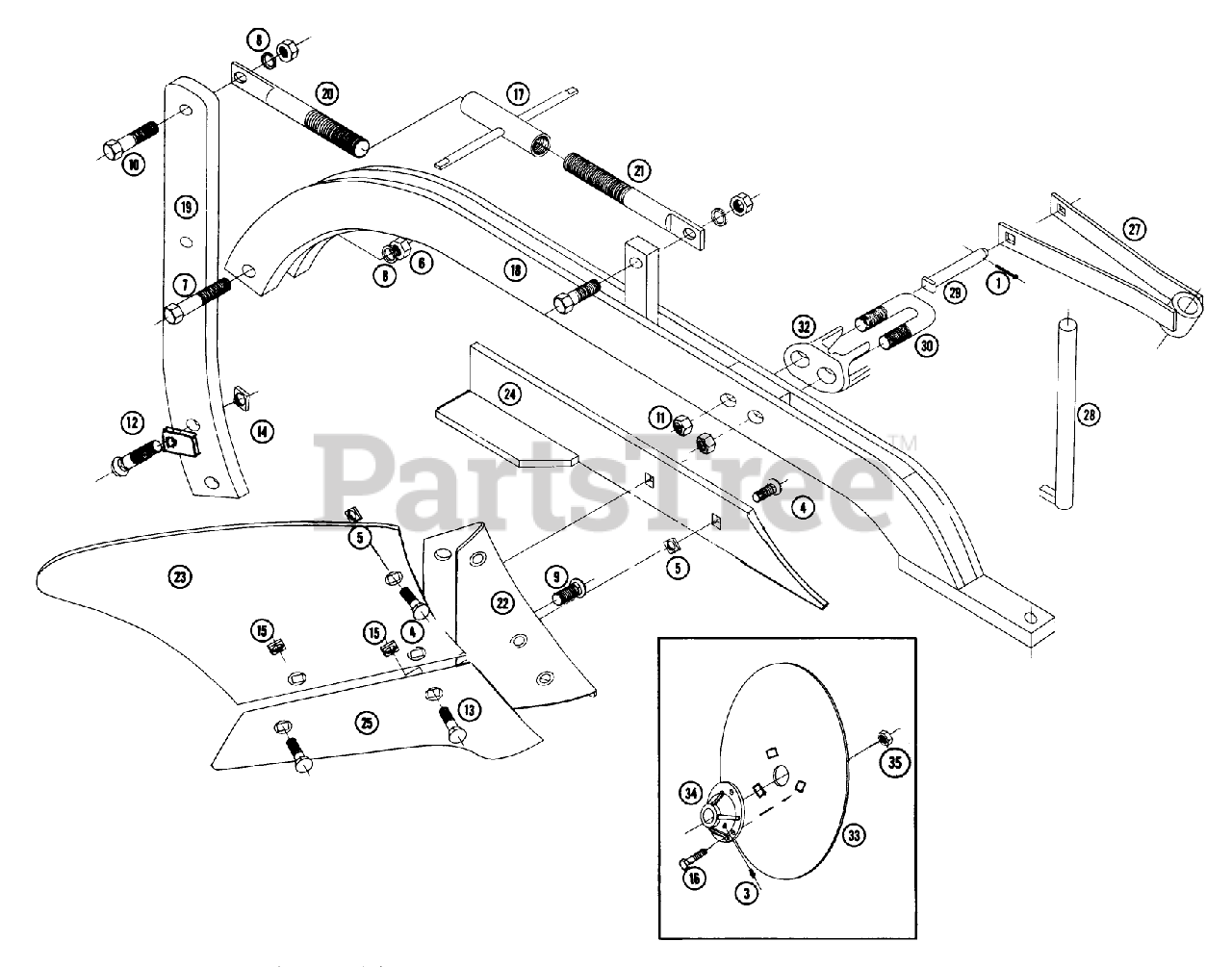

PLOW & COULTER PP-107 Parts Diagram

  • Title
1

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

2

Not Used

$

$

Not available

3

Toro 6934

Grease Fitting 5/16 Drive Type

$

$

Currently unavailable

4

Toro 901634

Plow Bolt 3/8-16 x 1

$

$

Currently unavailable

5

Toro 915184-4

Nut-Sq. 3/8-16

$

$

Currently unavailable

6

Toro 915115-4

Nut, 1/2-13

$

$

Currently unavailable

7

Toro 908060-4

Bolt-1/2-13-1 3/4

$

$

Currently unavailable

8

Toro 920085

Lockwasher

$

$

Currently unavailable

9

Toro 901655

Plow Bolt 1/2-13 x 1-3/4

$

$

Currently unavailable

10

Toro 908059-4

Bolt Hex 1/2-13 x 1 1/2

$

$

Currently unavailable

11

Toro 915117-4

5/8 NC Hex Nut

$

$

Currently unavailable

12

Toro 900114-4

Bolt-1/2-13 x 1-1/2 Carr.

$

$

Currently unavailable

13

Toro 901643

Plow Bolt 7/16-14 x 1

$

$

Not available

14

Toro 915186

Nut-Square 1/2-13

$

$

Currently unavailable

15

Toro 915185

Nut-Square 7/16-14

$

$

Currently unavailable

16

Toro 900037-4

Bolt Hex 5/16-18 x 3/4

$

$

Currently unavailable

17

Toro 2027

Coupling-Adjusting
(Superseded to 740521)

$

$

Not available

18

Toro 2026

Beam Assembly

$

$

Not available

19

Toro 6927

Standard Assembly

$

$

Currently unavailable

20

Toro 2043

Adjusting Rod-R.H.

$

$

Not available

21

Toro 2044

Pivot Bushing

$

$

Not available

22

Toro 6928

Frog

$

$

Currently unavailable

23

Toro 6929

Mold Board

$

$

Currently unavailable

24

Toro 6930

Landslide Assembly

$

$

Currently unavailable

25

Toro 6931

Share

$

$

Currently unavailable

26

Not Used

$

$

Not available

27

Toro 2065

Standard Assembly

$

$

Currently unavailable

28

Toro 2066

Rod-Swivel

$

$

Currently unavailable

29

Toro 2068

Pin-Pivot

$

$

Currently unavailable

30

Toro 2069

"U" Bolt

$

$

Currently unavailable

31

Not Used

$

$

Not available

32

Toro 2072

Clamp Coulter

$

$

Currently unavailable

33

Toro 6932

Blade

$

$

Currently unavailable

34

Toro 6933

Hub-Blade

$

$

Currently unavailable

35

$

$

Currently unavailable
