WT-30 - Toro 30" Tiller Attachment (1960) PLOW AND COULTER PP-1064 PARTS LIST Parts Diagram

30" Tiller Attachment

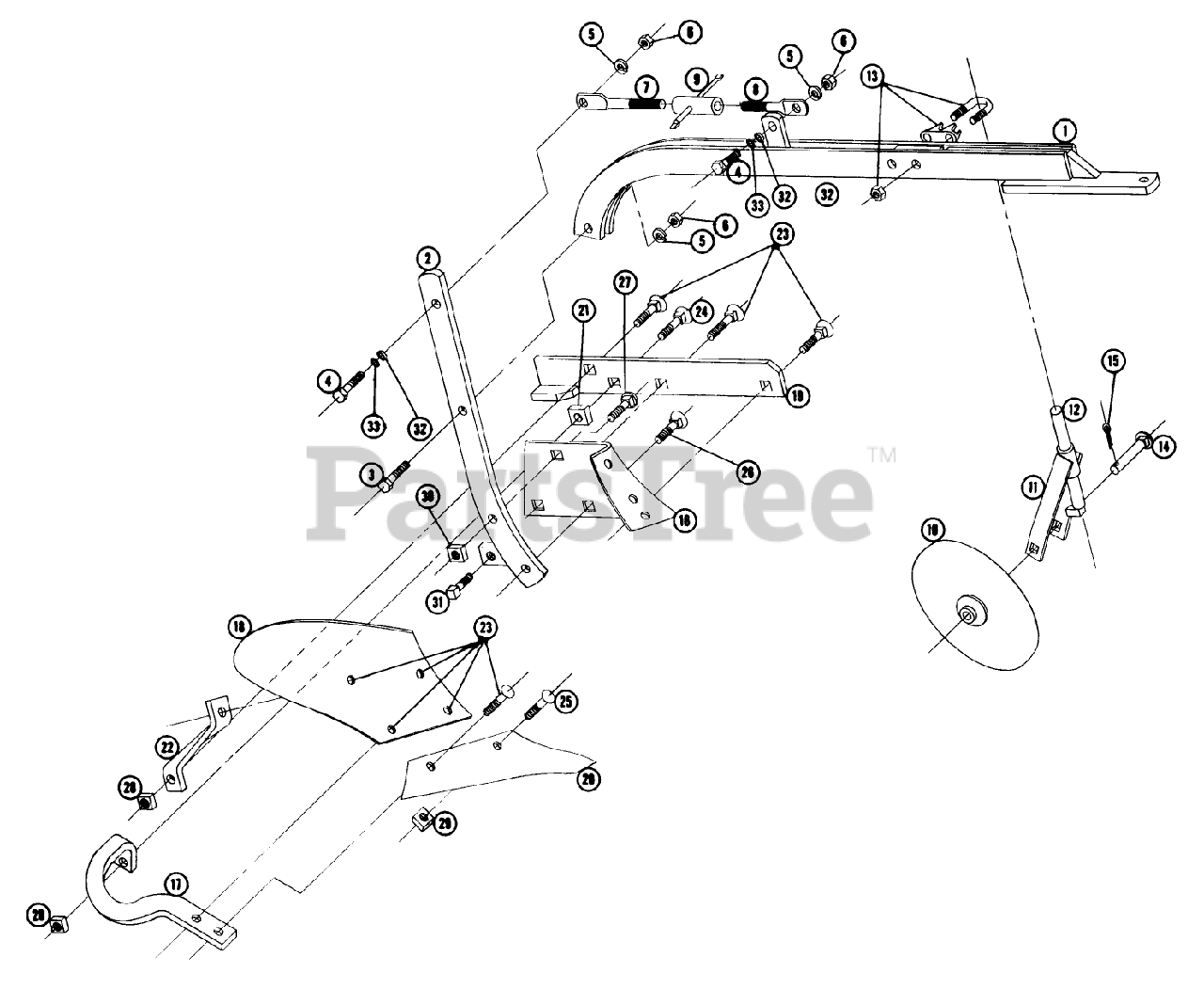

PLOW AND COULTER PP-1064 PARTS LIST Parts Diagram

  • Title
1

Toro 2964

Ass-y.-Beam

$

$

Currently unavailable

2

Toro 2965

Standard Ass-y.

$

$

Currently unavailable

3

Toro 908059-4

Bolt Hex 1/2-13 x 1 1/2

$

$

Currently unavailable

4

Toro 908061-4

Bolt-Hex 1/2-13 x 2

$

$

Currently unavailable

5

Toro 920085-4

Lockwasher

$

$

Currently unavailable

6

Toro 915115-6

Locknut-1/2-13

$

$

Currently unavailable

7

Toro 2043

Adjusting Rod-R.H.

$

$

Not available

8

Toro 2044

Pivot Bushing

$

$

Not available

9

Toro 2027

Coupling-Adjusting
(Superseded to 740521)

$

$

Not available

10

Toro 2070

Colter Blade Assembly

$

$

Currently unavailable

11

Toro 2065

Standard Assembly

$

$

Currently unavailable

12

Toro 2966

Ass-y.-Standard-Coulter

$

$

Currently unavailable

13

Toro 2967

Ass-y. "U" Bolt-Clamps-Nuts

$

$

Currently unavailable

14

Toro 2068

Pin-Pivot

$

$

Currently unavailable

15

Toro 932023-4

Cotter Pin 3/16 x 1

$

$

Currently unavailable

16

Toro 2045

Frog

$

$

Currently unavailable

17

Toro 2049

Spreader

$

$

Currently unavailable

18

Toro 2969

Moldboard

$

$

Currently unavailable

19

Toro 2970

Ass-y.-Landslide & Heel

$

$

Currently unavailable

20

Toro 2048

Point

$

$

Currently unavailable

21

Toro 2968

Spacer-Spreader

$

$

Currently unavailable

22

Toro 2971

Brace-Moldboard

$

$

Currently unavailable

23

Toro 901634-4

Bolt-Plow 3/8-16 x 1

$

$

Currently unavailable

24

Toro 901636-4

Plowbolt 3/8-16 x 1-1/2

$

$

Currently unavailable

25

Toro 901644-4

Bolt-Plow #3 Hd. 7/16 x 1-1/4

$

$

Currently unavailable

26

Toro 901655-4

Bolt-Plow #3 Hd. 1/2-13 x 1 3/4

$

$

Currently unavailable

27

Toro 900115-4

Bolt-Carriage 1/2-13 x 1 3/4

$

$

Currently unavailable

28

Toro 915184-4

Nut-Sq. 3/8-16

$

$

Currently unavailable

29

Toro 915185-4

Nut-Sq. 7/16-14

$

$

Currently unavailable

30

Toro 915186-4

Nut-Sq. 1/2-13

$

$

Currently unavailable

31

Toro 900878-4

Bolt-Square Hd. 1/2-13 x 1

$

$

Currently unavailable

32

Toro 5353

5353 GILSON LGT WEI

$3.23

$

Usually ships in 3-6 days

0

33

Toro 920041-4

Washer-Flat

$

$

Currently unavailable
