WT-30 - Toro 30" Tiller Attachment (1960) PH-18 HARROW PARTS LIST Parts Diagram

30" Tiller Attachment

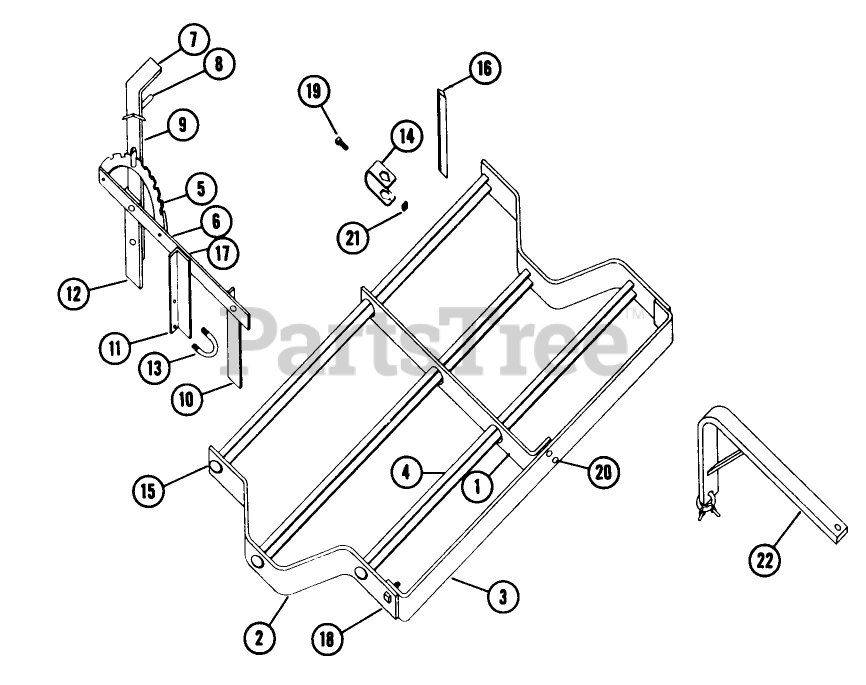

PH-18 HARROW PARTS LIST Parts Diagram

  • Title
1

Toro 366-1

Center Beam

$

$

Currently unavailable

2

Toro 366-2

Side Bar

$

$

Currently unavailable

3

Toro 366-3

Rack Bar

$

$

Currently unavailable

4

Toro 366-4

Tooth Support Bar

$

$

Currently unavailable

5

Toro 366-5

Ten Notch Rack

$

$

Currently unavailable

6

Toro 366-6

Rack Support Bar

$

$

Currently unavailable

7

Toro 366-7

Lever Handle

$

$

Currently unavailable

8

Toro 366-8

Lever Wire Dog

$

$

Currently unavailable

9

Toro 366-9

Lever Dog Spring

$

$

Currently unavailable

10

Toro 366-11-F

Front Toggle Angle

$

$

Currently unavailable

11

Toro 366-11-C

Center Toggle Angle

$

$

Currently unavailable

12

Toro 366-11-R

Rear Toggle Angle

$

$

Currently unavailable

13

Toro 366-12

Toggle U-bolt

$

$

Currently unavailable

14

Toro 366-13

Tooth Clamp

$

$

Currently unavailable

15

Toro 366-14

Support Bar Casting

$

$

Currently unavailable

16

Toro 366-16

Straight Teeth

$

$

Currently unavailable

17

Toro 366-18

Toggle Angle Spacer

$

$

Currently unavailable

18

Set Screw, 3/8-16 x 7/8

$

$

Not available

19

Machine Bolt, 3/8 x 1 1/2

$

$

Not available

20

Carriage Bolt, 3/8 x 1

$

$

Not available

21

Nut, Square, 3/8-16

$

$

Not available

22

Toro 2607

Hitch

$

$

Not available
