WT-30 - Toro 30" Tiller Attachment (1960) PARTS LIST Parts Diagram

30" Tiller Attachment

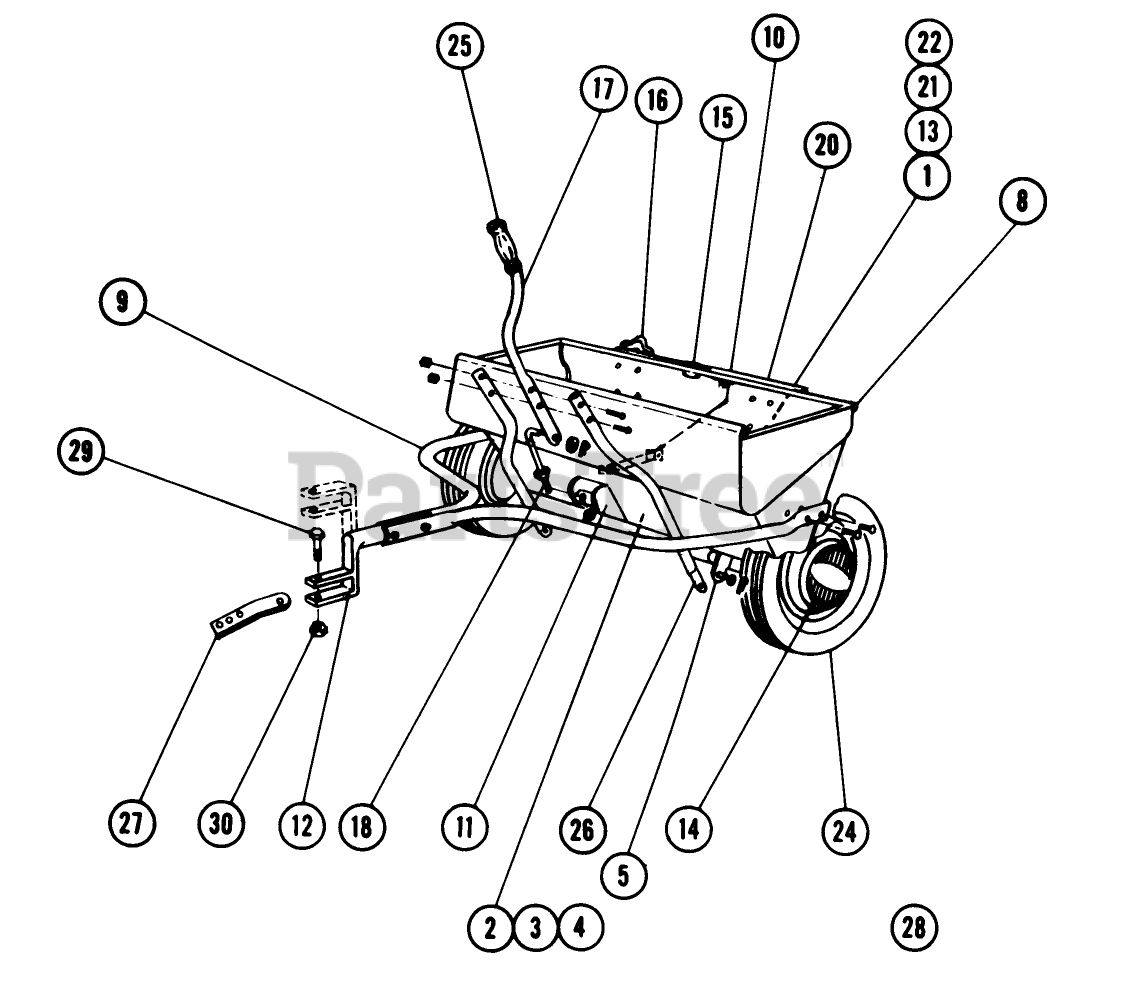

PARTS LIST Parts Diagram

  • Title
1

Toro 5685

Spring-Control Rod

$

$

Currently unavailable

2

Toro 1673

Agitator-R.H.

$

$

Currently unavailable

3

Toro 1674

Agitator-L.H.

$

$

Currently unavailable

4

Toro 1675

Baffle

$

$

Currently unavailable

5

Toro 1676

Ranger Shut-Off Bar

$

$

Currently unavailable

6

Toro 5686

Shut Off Bar

$

$

Currently unavailable

7

Toro 1678

Bearing Support Ass-y. with Bearing

$

$

Currently unavailable

8

Toro 5687

Hopper

$

$

Currently unavailable

9

Toro 1680

Hitch Brace

$

$

Currently unavailable

10

Toro 1681

Brace-Hopper

$

$

Currently unavailable

11

Toro 1682

Pivot-Bracket Ass-y.

$

$

Currently unavailable

12

Toro 1683

Hitch

$

$

Currently unavailable

13

Toro 1684

Housing-Control Ass-y. (Less Knob)

$

$

Currently unavailable

14

Toro 1685

Hub Cap

$

$

Currently unavailable

15

Toro 5688

Rate Indicator

$

$

Currently unavailable

16

Toro 1687

Knob

$

$

Currently unavailable

17

Toro 1688

Operating Lever with Grip

$

$

Currently unavailable

18

Toro 1689

Pivot Link Rod

$

$

Currently unavailable

19

Toro 5689

Hopper End Plate

$

$

Currently unavailable

20

Toro 5690

Plate-Rate Control

$

$

Currently unavailable

21

Toro 5692

Rod-Rate Control-R.H.

$

$

Currently unavailable

22

Toro 5693

Rod-Rate Control-L.H.

$

$

Currently unavailable

23

Toro 1694

Bearing

$

$

Currently unavailable

24

Toro 1693

Wheel with Tire

$

$

Currently unavailable

25

Toro 1696

Handle Grip

$

$

Currently unavailable

26

Toro 1697

Shut Off Brace

$

$

Currently unavailable

27

Toro 3039

Hitch Plate

$

$

Not available

28

Toro 5604

Decal
(Superseded to 83-3410)

$

$

Not available

29

Toro 908050-4

Bolt-7/16-14 x 2 Hex.

$

$

Currently unavailable

30

Toro 915114-6

Nut 7/16-14 Nylok

$

$

Currently unavailable

31

Toro 5691

Tie Bar

$

$

Not available
