WT-30 - Toro 30" Tiller Attachment (1960) AC-6 CULTIVATOR PARTS LIST Parts Diagram

30" Tiller Attachment

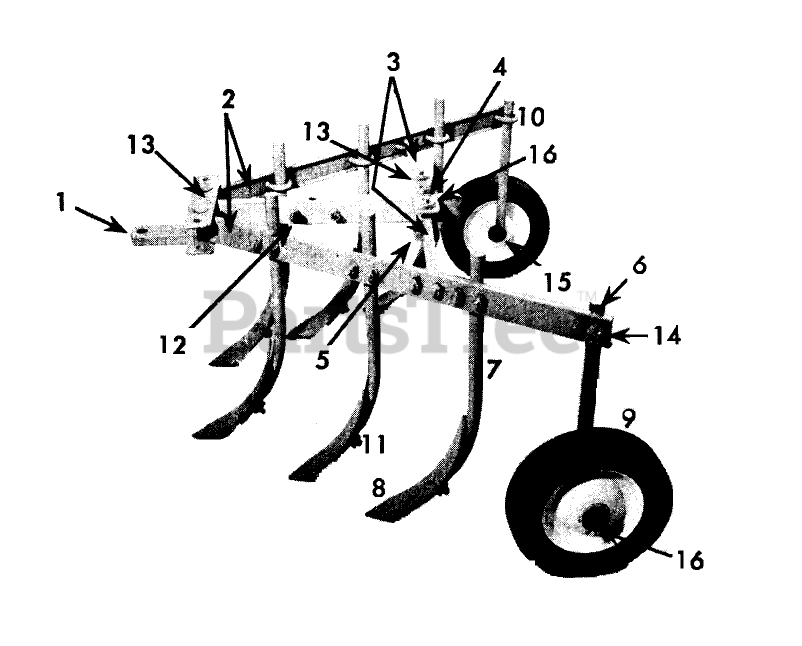

AC-6 CULTIVATOR PARTS LIST Parts Diagram

  • Title

1

Toro 1924

Cent. Rail Frame Assy.

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

2

Toro 1925

Side Rails L & R

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

3

Toro 1926

Adjusting Arm

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

4

Toro 1927

Plate Adj. Top

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

5

Toro 1928

Plate Adj. Bottom

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

6

Toro 1929

Standard, Gauge Wheel

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

7

Toro 1930

Standard Shovel

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

8

Toro 1931

Shovel

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Not available

9

Toro 1702

Wheel, Gauge

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

10

Toro 1293

U-Bolts

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

11

Toro 1069

Plow Bolt w/nut

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

12

Toro 1294

Carriage Bolt w/nut

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

13

Toro 1295

Carriage Bolt w/nut

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Not available

14

Toro 1039

Lockwasher

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

15

Toro 1186

Wrought Washer

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Currently unavailable

16

Toro 1002

Cotter Key
(Superseded to 703201)

Note: Note: All fasteners are cadium plated to help prevent rust. All nuts are 3/8" so only 1 wrench is required.

$

$

Not available
