WT 24 S - Bear Cat Walk-Behind Trimmer, 190cc Subaru (SN: C08287 - D03241) Drive (Part 1) Parts Diagram

Walk-Behind Trimmer, 190cc Subaru

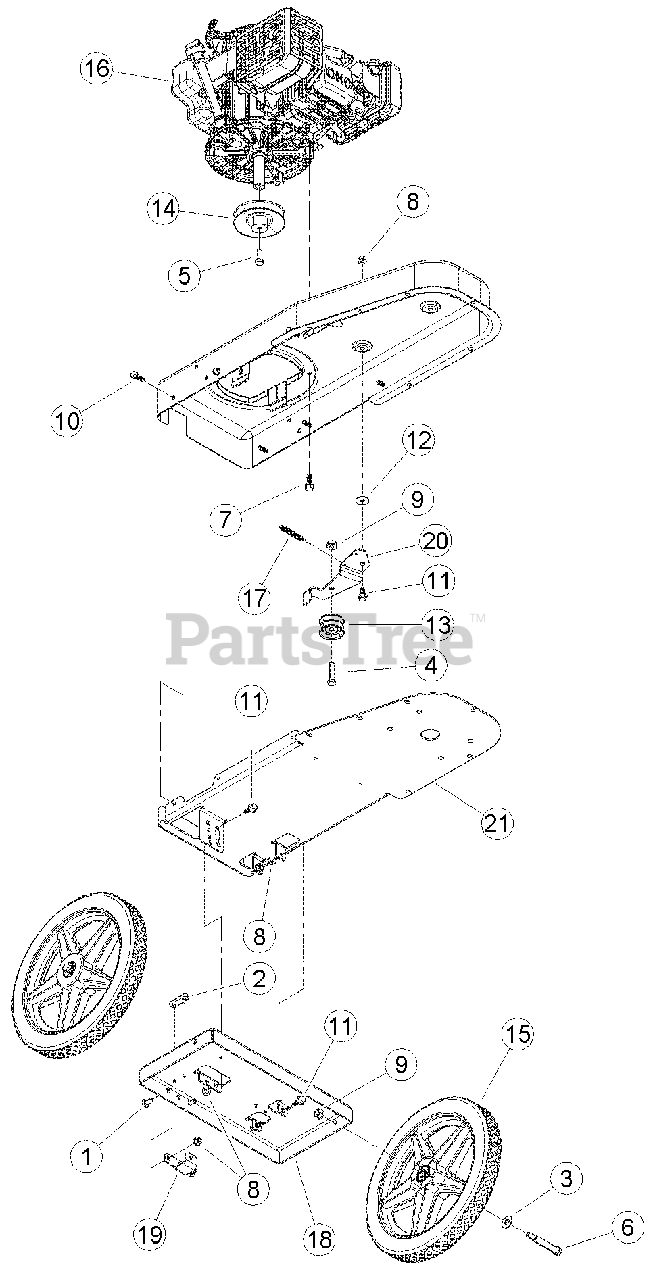

Drive (Part 1) Parts Diagram

  • Title

1

0103-0909-00

BOLT, 5/16 X 3/4 CRG SHORT NECK

$

$

Not available

2

12848-00

WEAR PAD, MEDIUM SPHD FRONT

$

$

Not available

3

Bear Cat 15097

WASHER, 1/2 SAE FLAT

$

$

Not available

4

Bear Cat 15697-00

BOLT, 3/8 X 1 HEX GR8 NF ZP

$

$

Not available

5

Bear Cat 15875-00

BOLT, 3/8-16 X 3-1/4 FLANGE SHOULDER ZP

$16.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15141

BOLT, 3/8 X 1-3/4 HEX GR5 ZP

$

$

Not available

7

Bear Cat 15877-00

SCREW, 3/8-16 X 1 HEX THREAD ROLLING TRI-LOBE ZP

$2.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

9

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

10

Bear Cat 15907-00

SCREW, 5/16-18 X 1 INZP THREAD ROLLING

$2.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15913-00

BOLT, 5/16-18 X 3/4 FLANGE SHOULDER .150 ZP

$

$

Not available

12

Bear Cat 15914-00

WASHER, 1.062 OD X .329 ID X .062 FLAT ZP

$2.99

$

Usually ships in 3-7 days

0

13

Bear Cat 31770-00

IDLER, 1-7/8 DOUBLE FLANGE

$21.99

$

Usually ships in 3-7 days

0

14

Bear Cat 31771-00

PULLEY, 4.0 X 7/8 BORE B GROOVE CAPPED

$

$

Not available

15

Bear Cat 31996-00

WHEEL, 14 X 1.75 TRIMMER

$42.99

$

In Stock, only 2 left!

0

16

ENGINE, EA190V SUBARU (FOR SERVICE CONSULT ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED SUBARU INDUSTRIAL ENGINE DEALER.)

$

$

Not available

17

Bear Cat 32020-00

SPRING, IDLER EXTENSION

$

$

Not available

18

77158-12

PLATE, TRIMMER TILT SUPPORT

$

$

Not available

19

77159-12

BRACKET, HEIGHT ADJUSTMENT

$

$

Not available

20

Bear Cat 77243-00

BRACKET, IDLER ENGAGEMENT

$27.99

$

Usually ships in 3-7 days

0

21

Bear Cat 77523-12

PLATE, TRIMMER TILT BASE

$198.99

$

Usually ships in 3-7 days

0
