WT 190 S - Bear Cat Walk-Behind Trimmer, 190cc Briggs & Stratton (SN: D04579 & Above) WT190S Handlebar (Self-Propelled) (Part 1) Parts Diagram

Walk-Behind Trimmer, 190cc Briggs & Stratton

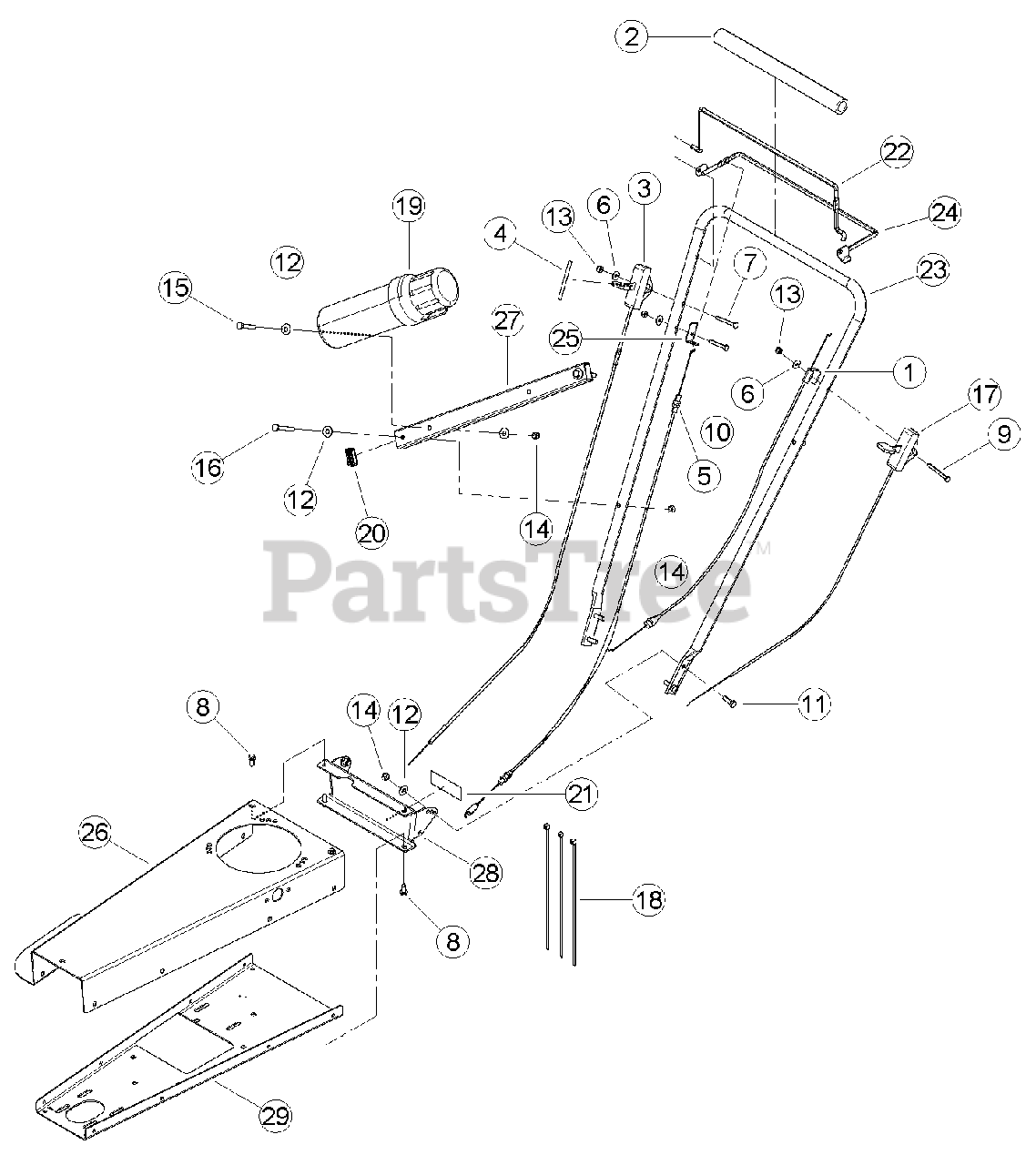

WT190S Handlebar (Self-Propelled) (Part 1) Parts Diagram

  • Title
1

Bear Cat 12324

CABLE, BRAKE CONTROL

$40.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12326

PAD, FOAM HANDLEBAR

$18.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12842

CABLE, TRANSMISSION CONTROL

$57.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12849

DECAL, 3 SPEED

$5.49

$

Usually ships in 3-7 days

0

5

Bear Cat 12856

CABLE, SP CONTROL

$50.99

$

Usually ships in 3-7 days

0

6

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

7

Bear Cat 15093

BOLT, 1/4 X 2 HEX HD GR5 ZP (WT160S ONLY)

$

$

Not available

7

Bear Cat 15094

BOLT, 1/4 X 1-3/4 HHCS GR5 ZP (WT190S ONLY)

$

$

Not available

8

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

9

Bear Cat 15197

BOLT, 1/4 X 2-1/4 HCS GR5 ZP (WT160S ONLY)

$

$

Not available

9

Bear Cat 15342

BOLT, 1/4 X 1-1/2 HHCS GR5 ZP (WT190S ONLY)

$

$

Not available

10

15214

BOLT, 1/4 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

11

Bear Cat 15219

BOLT, 5/16 X 1 HEX HD GR5 NC ZP

$

$

Not available

12

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

13

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

15

Bear Cat 15403

BOLT 5/16-18 X 1-3/4 HCS GR5 ZP

$

$

Not available

16

15754-00

BOLT, 5/16 X 2-1/4 HCPS GR5

$

$

Not available

17

Bear Cat 16239

THROTTLE CONTROL (WT160S ONLY)

$44.99

$

Usually ships in 3-7 days

0

18

17320

STRAP, 11 IN. BLACK TIE

$

$

Not available

19

CONTAINER, MANUAL ( WAS 18008-00, REMOVED)

$

$

Not available

20

Bear Cat 18955-00

CAP, PLASTIC 3/4 X 1-1/2 TUBE

$1.99

$

Usually ships in 3-7 days

0

21

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO (WT190S ONLY)

$9.99

$

Usually ships in 3-7 days

0

22

Bear Cat 72732-12

BAIL, TRIMMER

$51.99

$

Usually ships in 3-7 days

0

23

Bear Cat 72760-12

HANDLEBAR, TRIMMER

$123.99

$

Usually ships in 3-7 days

0

24

Bear Cat 72995-12

WELDMENT, SP BAIL

$87.99

$

Usually ships in 3-7 days

0

25

Bear Cat 72999-12

ANCHOR, SP CABLE

$44.99

$

Usually ships in 3-7 days

0

26

Bear Cat 73630-35

BODY, TRIMMER

$184.99

$

Usually ships in 3-7 days

0

27

Bear Cat 74964-12

TUBE, CONTAINER MANUAL
(Superseded to 77800-00)

$93.99

$

Usually ships in 3-7 days

0

28

Bear Cat 75518-12

CHANNEL, HANDLE SUPPORT

$57.99

$

Usually ships in 3-7 days

0

29

76733-12

BOTTOM, TRIMMER FRAME

$

$

Not available
