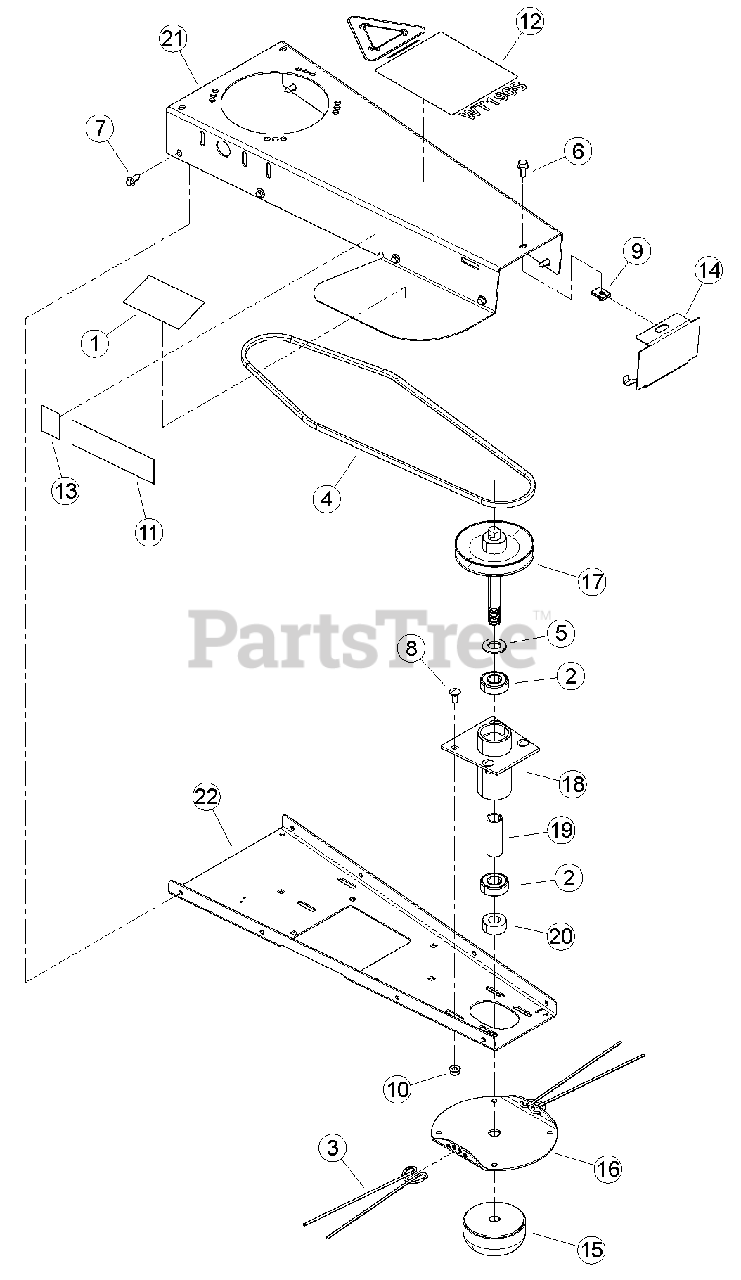

WT 190 S - Bear Cat Walk-Behind Trimmer, 190cc Briggs & Stratton (SN: D04579 & Above) WT190S Body (Self-Propelled) (Part 2) Parts Diagram

Walk-Behind Trimmer, 190cc Briggs & Stratton

WT190S Body (Self-Propelled) (Part 2) Parts Diagram

  • Title
1

Bear Cat 12254

DECAL, GRINDER DANGER

$6.49

$

Usually ships in 3-7 days

0

2

Bear Cat 12314

BEARING, 3/4 BALL

$22.99

$

In Stock, only 1 left!

0

3

Bear Cat 12348

STRING, .155 X 20-1/2

$

$

Not available

4

Bear Cat 12573

BELT, 3LX52

$40.99

$

In Stock, only 1 left!

0

5

15098

WASHER, 3/4" SAE FLAT ZP

$

$

Not available

6

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

7

15176

SCREW, 11/32-12 X 7/8 HWH T-AB

$

$

Not available

8

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 NC CRG ZP

$

$

Not available

9

Bear Cat 15402

NUT, 5/16"-18 TINNERMAN U-TYPE

$

$

Not available

10

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

11

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

12

30331-00

DECAL, WT190S INFORMATION

$

$

Not available

13

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

14

70768-35

COVER, FRONT TRIMMER

$

$

Not available

15

Bear Cat 72704-12

WELDMENT, TRIMMER HEAD (HEAT TREAT)

$

$

Not available

16

Bear Cat 72705-12

DISK, TRIMMER HEAD

$

$

Not available

17

Bear Cat 72754

WELDMENT, TRIMMER PULLEY

$106.99

$

Usually ships in 3-7 days

0

18

Bear Cat 72755-12

WELDMENT, SPINDLE HUB

$87.99

$

Usually ships in 3-7 days

0

19

Bear Cat 72759

SPACER, TRIMMER SPINDLE

$15.99

$

Usually ships in 3-7 days

0

20

Bear Cat 72781-12

SPACER, TRIMMER HEAD

$

$

Not available

21

Bear Cat 73630-35

BODY, TRIMMER

$184.99

$

Usually ships in 3-7 days

0

22

76733-12

BOTTOM, TRIMMER FRAME

$

$

Not available
