WT 190 S - Bear Cat Walk-Behind Trimmer, 190cc Briggs & Stratton (SN: D04579 & Above) WT190S Body (Self-Propelled) (Part 1) Parts Diagram

Walk-Behind Trimmer, 190cc Briggs & Stratton

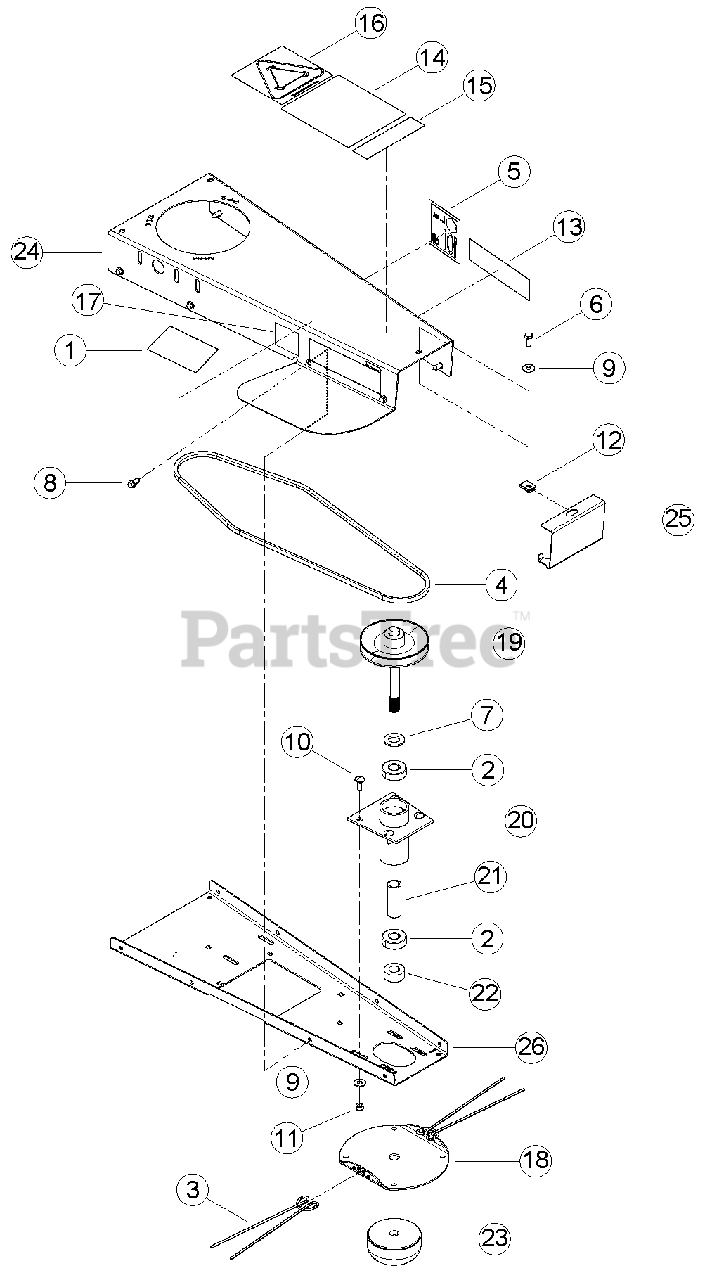

WT190S Body (Self-Propelled) (Part 1) Parts Diagram

  • Title
1

Bear Cat 12254

DECAL, GRINDER DANGER

$6.49

$

Usually ships in 3-7 days

0

2

Bear Cat 12314

BEARING, 3/4 BALL

$22.99

$

In Stock, only 1 left!

0

3

Bear Cat 12348

STRING, .155 X 20-1/2

$

$

Not available

4

Bear Cat 12573

BELT, 3L X 52

$40.99

$

In Stock, only 1 left!

0

5

Bear Cat 14182-00

DECAL, 98 DB (WT160S)

$12.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14184-00

DECAL, 101 DB (WT190S)

$12.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15003

BOLT, 5/16 3/4 HEX HD GR5 ZP

$

$

Not available

7

15098

WASHER, 3/4 SAE FLAT ZP

$

$

Not available

8

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

9

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

10

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

11

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15402

NUT 5/16-18 TINNERMAN U-TYPE

$

$

Not available

13

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

14

Bear Cat 18949-00

DECAL, MANUAL/SAFETY INFO

$10.99

$

Usually ships in 3-7 days

0

15

18953-00

DECAL, MODEL WT160S

$

$

Not available

15

18951-00

DECAL, MODEL WT190S

$

$

Not available

16

Bear Cat 31392-00

DECAL, RECLAIM IT

$9.49

$

Usually ships in 3-7 days

0

17

Bear Cat 32392-00

DECAL, ECHO BEAR CAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

18

Bear Cat 72705-12

DISK, TRIMMER HEAD

$

$

Not available

19

Bear Cat 72754

WELDMENT, TRIMMER PULLEY

$106.99

$

Usually ships in 3-7 days

0

20

Bear Cat 72755-12

WELDMENT, SPINDLE HUB

$87.99

$

Usually ships in 3-7 days

0

21

Bear Cat 72759

SPACER, TRIMMER SPINDLE

$15.99

$

Usually ships in 3-7 days

0

22

72781-00

SPACER, TRIMMER HEAD

$

$

Not available

23

WELDMENT, TRIMMER HEAD (WAS 73116-12, FOR SERVICE USE 72704-12)

$

$

Not available

24

Bear Cat 73630-35

BODY, TRIMMER

$184.99

$

Usually ships in 3-7 days

0

25

Bear Cat 75519-35

COVER, FRONT TRIMMER

$45.99

$

Usually ships in 3-7 days

0

26

76733-12

BOTTOM, TRIMMER FRAME

$

$

Not available
