WT 190 - Bear Cat Walk-Behind Trimmer, 190cc Briggs & Stratton (SN: D04579 & Above) WT190 Handlebar (Push) (SN: F01083 - CURRENT) Parts Diagram

Walk-Behind Trimmer, 190cc Briggs & Stratton

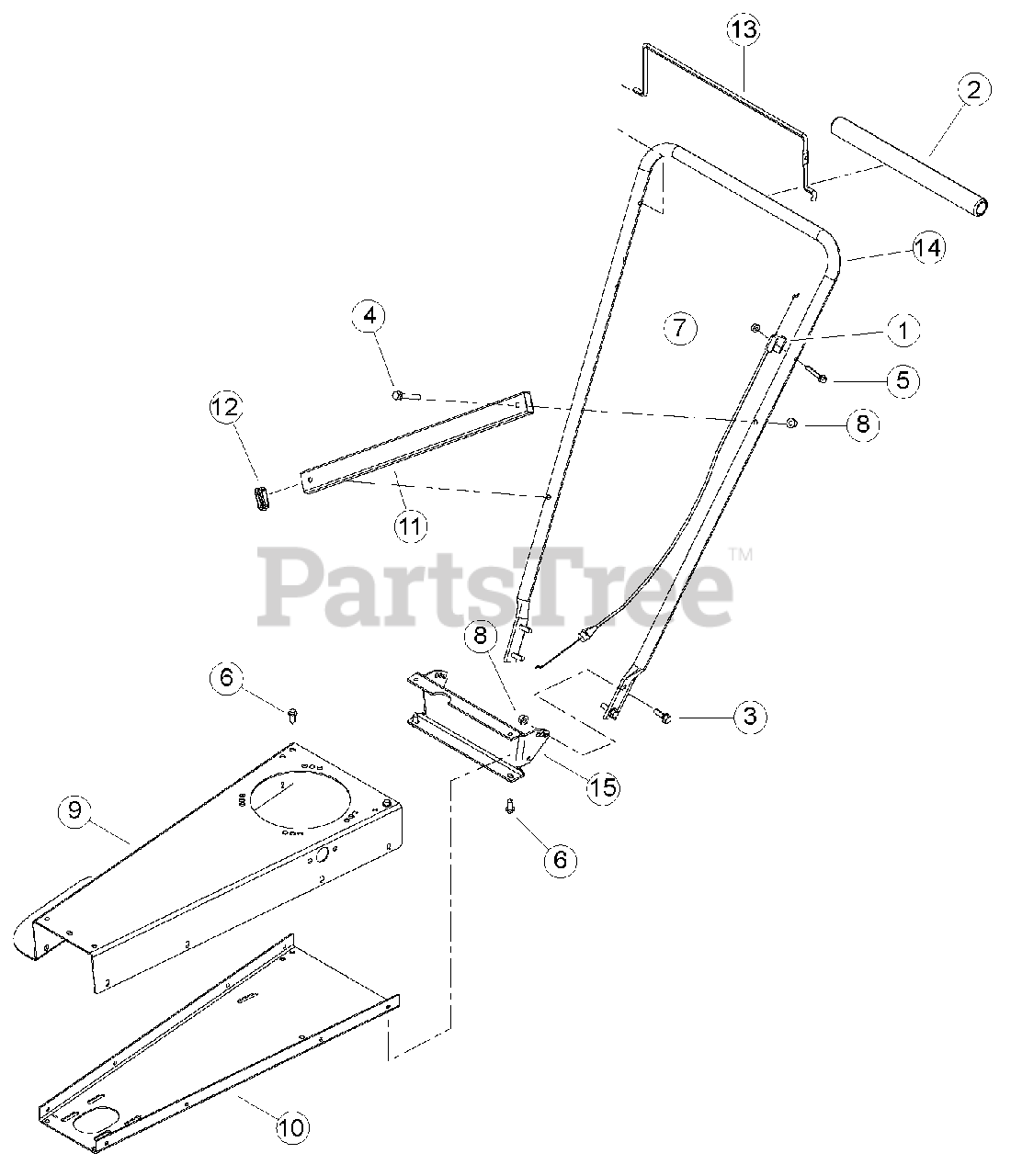

WT190 Handlebar (Push) (SN: F01083 - CURRENT) Parts Diagram

  • Title

1

Bear Cat 12324

CABLE, BRAKE CONTROL

$40.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12326

PAD, FOAM HANDLEBAR

$18.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

4

Bear Cat 15135-00

BOLT, 5/16 X 2-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

5

15168-00

BOLT, 1/4 X 1-1/2 FLANGE NC

$

$

Not available

6

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

7

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

9

70766-35

BODY, TRIMMER STANDOFF

$

$

Not available

10

Bear Cat 70767-12

BOTTOM, TRIMMER STANDOFF

$110.99

$

Usually ships in 3-7 days

0

11

Bear Cat 71596-00

ASSEMBLY, WT LINE HOLDER

Note: (INCLUDES ITEM 12)

$48.99

$

Usually ships in 3-7 days

0

12

Bear Cat 18955-00

CAP, PLASTIC 3/4 X 1-1/2 TUBE

$1.99

$

Usually ships in 3-7 days

0

13

Bear Cat 72732-12

BAIL, TRIMMER

$51.99

$

Usually ships in 3-7 days

0

14

Bear Cat 72760-12

HANDLEBAR, TRIMMER

$123.99

$

Usually ships in 3-7 days

0

15

Bear Cat 75518-12

CHANNEL, HANDLE SUPPORT

$57.99

$

Usually ships in 3-7 days

0
