WT 190 - Bear Cat Walk-Behind Trimmer, 190cc Briggs & Stratton (SN: D04579 & Above) WT190 Handlebar (Push) (Part 1) Parts Diagram

Walk-Behind Trimmer, 190cc Briggs & Stratton

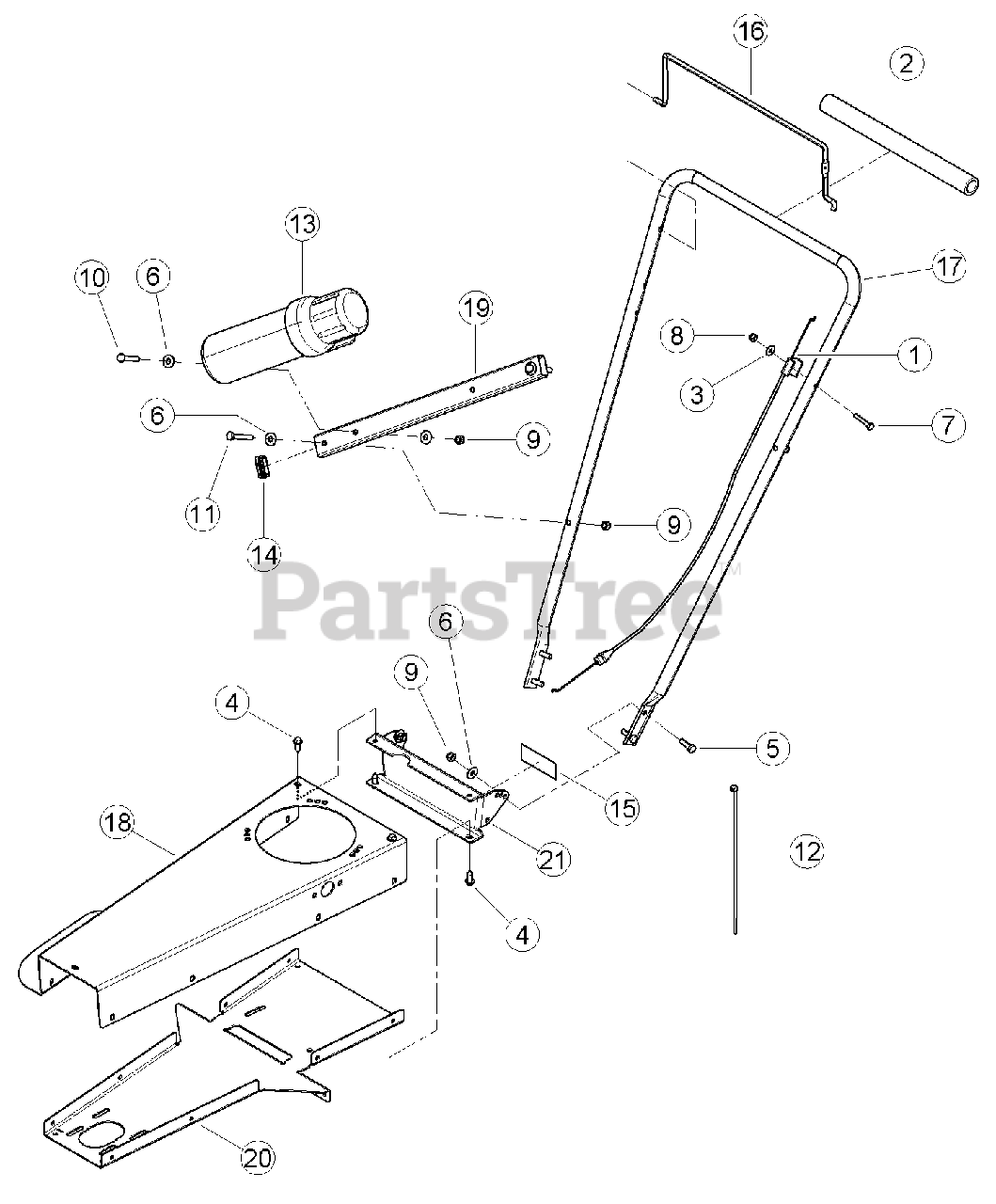

WT190 Handlebar (Push) (Part 1) Parts Diagram

  • Title
1

Bear Cat 12324

CABLE, BRAKE CONTROL

$40.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12326

PAD, FOAM HANDLEBAR

$18.99

$

Usually ships in 3-7 days

0

3

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

4

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

5

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

Bear Cat 15342

BOLT, 1/4 X 1-1/2 HHCS GR5 ZP

$

$

Not available

8

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

9

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

10

Bear Cat 15403

BOLT, 5/16-18 X 1-3/4 HCS GR5 ZP

$

$

Not available

11

15754-00

BOLT, 5/16 X 2-1/4 HCPS GR5

$

$

Not available

12

17320

STRAP, 11 IN. BLACK TIE

$

$

Not available

13

CONTAINER, MANUAL (WAS 18008-00, REMOVED)

$

$

Not available

14

Bear Cat 18955-00

CAP, PLASTIC 3/4 X 1-1/2 TUBE

$1.99

$

Usually ships in 3-7 days

0

15

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO

$9.99

$

Usually ships in 3-7 days

0

16

Bear Cat 72732-12

BAIL, TRIMMER

$51.99

$

Usually ships in 3-7 days

0

17

Bear Cat 72760-12

HANDLEBAR, TRIMMER

$123.99

$

Usually ships in 3-7 days

0

18

Bear Cat 73630-35

BODY, TRIMMER

$184.99

$

Usually ships in 3-7 days

0

19

Bear Cat 74964-12

TUBE, CONTAINER MANUAL
(Superseded to 77800-00)

$93.99

$

Usually ships in 3-7 days

0

20

Bear Cat 75504-12

BOTTOM, TRIMMER FRAME

$149.99

$

Usually ships in 3-7 days

0

21

Bear Cat 75518-12

CHANNEL, HANDLE SUPPORT

$57.99

$

Usually ships in 3-7 days

0
