WT 190 - Bear Cat Walk-Behind Trimmer, 190cc Briggs & Stratton (SN: D04579 & Above) WT190 Drive (Push) (Part 2) Parts Diagram

Walk-Behind Trimmer, 190cc Briggs & Stratton

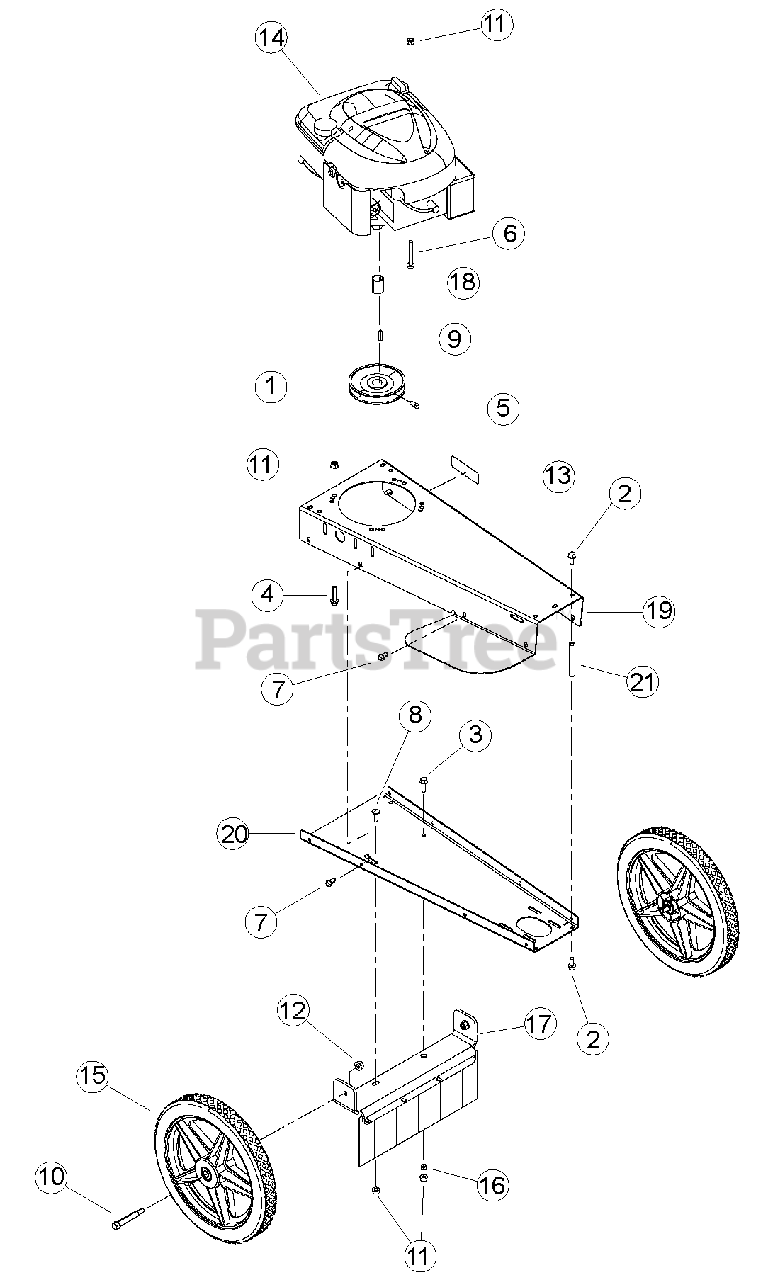

WT190 Drive (Push) (Part 2) Parts Diagram

  • Title

1

Bear Cat 12319

PULLEY, 5.0 X 7/8 AB

$54.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

3

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

4

15122-00

BOLT, 5/16 X 1-1/2 FLANGE NC

$

$

Not available

5

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

6

15138-00

BOLT, 5/16-18 X 2-1/2 FLANGE NC

$

$

Not available

7

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

8

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

9

Bear Cat 15372

SQUARE KEY, 3/16 X 1.00" LG

$1.49

$

In Stock, only 1 left!

0

10

Bear Cat 15875-00

BOLT, 3/8-16 X 3-1/4 FLANGED SHOULDER

$16.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

12

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

13

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

14

ENGINE, 6.5 HP QUANTUM HD 50 STATE (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER.)

$

$

Not available

15

Bear Cat 31996-00

WHEEL, 14 X 1.75 TRIMMER

$42.99

$

In Stock, only 2 left!

0

16

Bear Cat 70321-00

SPACER, .334 X .50 X .29

$18.99

$

Usually ships in 3-7 days

0

17

Bear Cat 70323-12

PLATE, TRIMMER AXLE

$89.99

$

Usually ships in 3-7 days

0

18

Bear Cat 70758-00

SPACER, 1-1/16 OD X 14 GA X 1.40

$13.99

$

Usually ships in 3-7 days

0

19

70766-35

BODY, TRIMMER STANDOFF

$

$

Not available

20

Bear Cat 70767-12

BOTTOM, TRIMMER STANDOFF

$110.99

$

Usually ships in 3-7 days

0

21

70769-00

STANDOFF, WHEELED TRIMMER BODY

$

$

Not available
