WT 190 - Bear Cat Walk-Behind Trimmer, 190cc Briggs & Stratton (SN: D04579 & Above) WT190 Body (Push) (SN: D04579 - E08091) Parts Diagram

Walk-Behind Trimmer, 190cc Briggs & Stratton

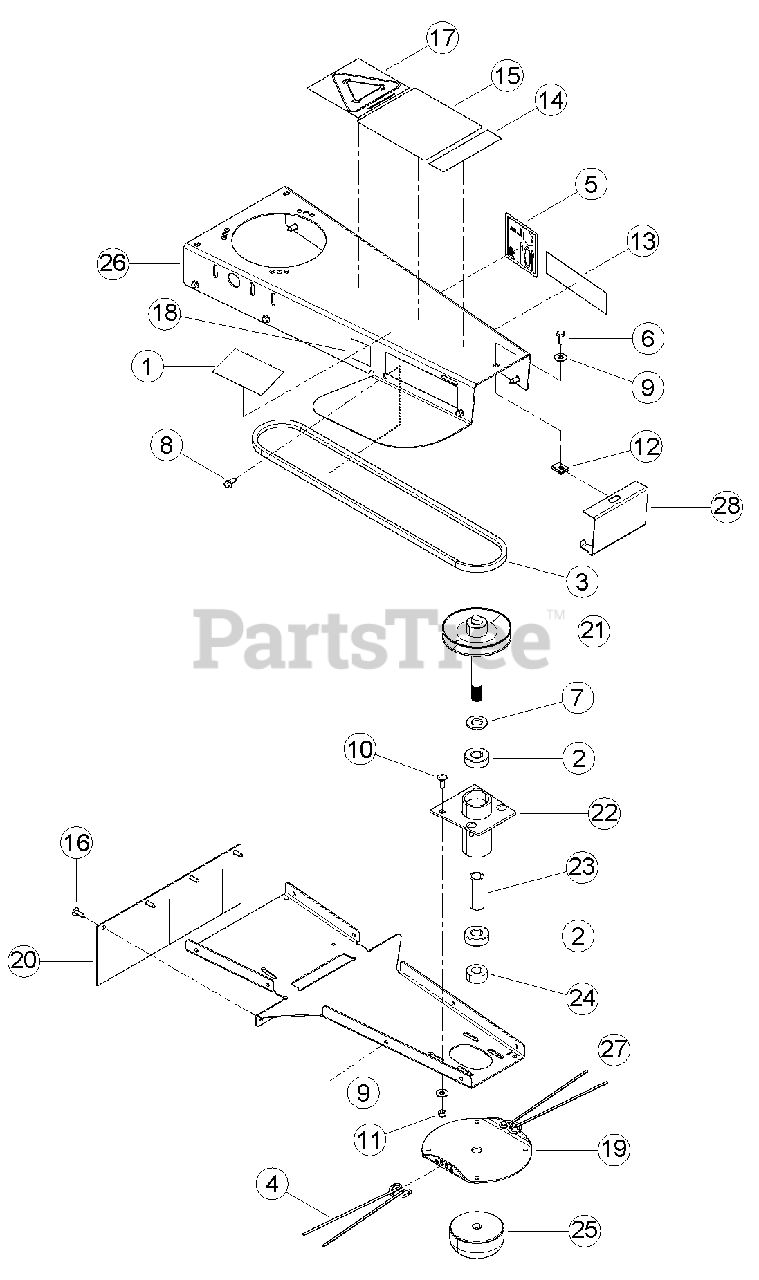

WT190 Body (Push) (SN: D04579 - E08091) Parts Diagram

  • Title
1

Bear Cat 12254

DECAL, GRINDER DANGER

$6.49

$

Usually ships in 3-7 days

0

2

Bear Cat 12314

BEARING, 3/4 BALL

$22.99

$

In Stock, only 1 left!

0

3

Bear Cat 12317

BELT, 4L 53 ARAMID

$42.99

$

In Stock, only 1 left!

0

4

Bear Cat 12348

STRING, .155 X 20-1/2

$

$

Not available

5

Bear Cat 14184-00

DECAL, 101 DB

$12.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

7

15098

WASHER, 3/4 SAE FLAT ZP

$

$

Not available

8

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

9

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

10

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

11

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15402

NUT, 5/16-18 TINNERMAN U-TYPE

$

$

Not available

13

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

14

18947-00

DECAL, MODEL WT190

$

$

Not available

15

Bear Cat 18949-00

DECAL, MANUAL/SAFETY INFO

$10.99

$

Usually ships in 3-7 days

0

16

Bear Cat 18950-00

RIVET, PLASTIC 1/4 X 7/8

$3.49

$

Usually ships in 3-7 days

0

17

Bear Cat 31392-00

DECAL, RECLAIM IT

$9.49

$

Usually ships in 3-7 days

0

18

Bear Cat 32392-00

DECAL, ECHO BEAR CAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

19

Bear Cat 72705-12

DISK, TRIMMER HEAD

$

$

Not available

20

Bear Cat 72723

FLAP, TRIMMER

$33.99

$

Usually ships in 3-7 days

0

21

Bear Cat 72754

WELDMENT, TRIMMER PULLEY

$106.99

$

Usually ships in 3-7 days

0

22

Bear Cat 72755-12

WELDMENT, SPINDLE HUB

$87.99

$

Usually ships in 3-7 days

0

23

Bear Cat 72759

SPACER, TRIMMER SPINDLE

$15.99

$

Usually ships in 3-7 days

0

24

Bear Cat 72781-12

SPACER, TRIMMER HEAD

$

$

Not available

25

WELDMENT, TRIMMER HEAD (WAS 73116-12, FOR SERVICE USE 72704-12)

$

$

Not available

26

Bear Cat 73630-35

BODY, TRIMMER

$184.99

$

Usually ships in 3-7 days

0

27

Bear Cat 75504-12

BOTTOM, TRIMMER FRAME

$149.99

$

Usually ships in 3-7 days

0

28

Bear Cat 75519-35

COVER, FRONT TRIMMER

$45.99

$

Usually ships in 3-7 days

0
