WT 190 - Bear Cat Walk-Behind Trimmer, 190cc Briggs & Stratton (SN: D04579 & Above) WT190 Body (Push) (Part 2) Parts Diagram

Walk-Behind Trimmer, 190cc Briggs & Stratton

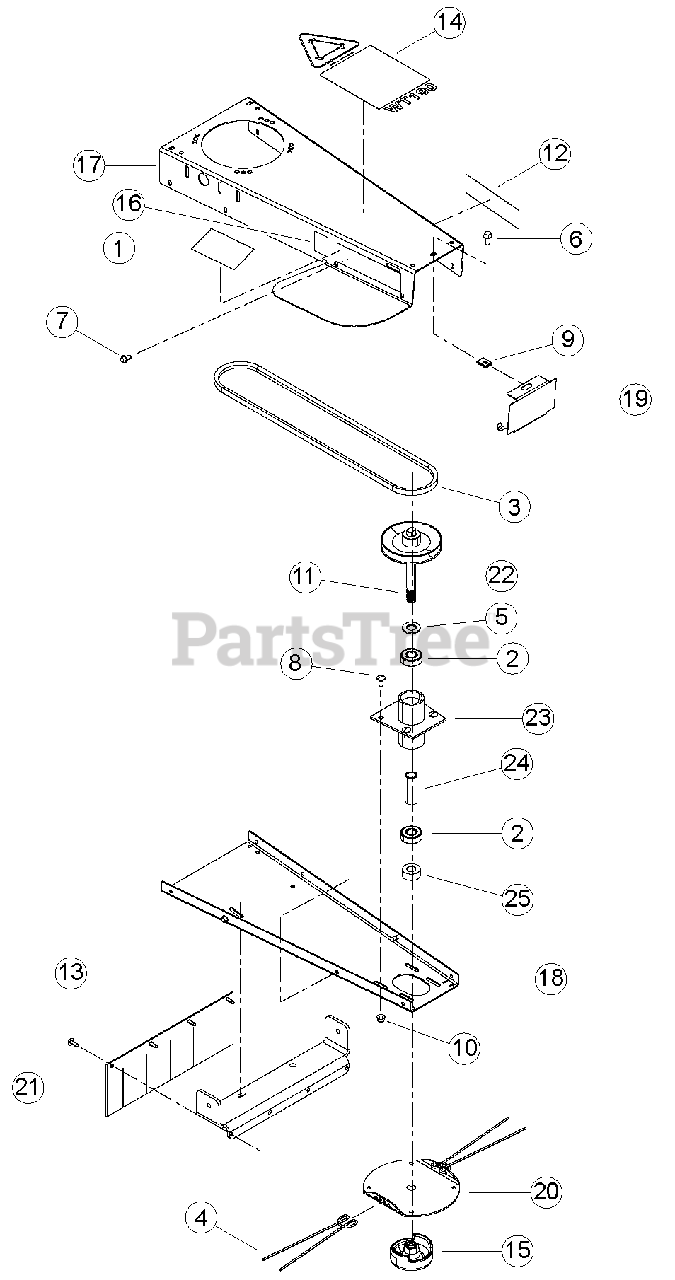

WT190 Body (Push) (Part 2) Parts Diagram

  • Title
1

Bear Cat 12254

DECAL, GRINDER DANGER

$6.49

$

Usually ships in 3-7 days

0

2

Bear Cat 12314

BEARING, 3/4 BALL

$22.99

$

In Stock, only 1 left!

0

3

Bear Cat 12317

BELT, 4L 53 ARAMID

$42.99

$

In Stock, only 1 left!

0

4

Bear Cat 12348

STRING, .155 X 20-1/2

$

$

Not available

5

15098

WASHER, 3/4 SAE FLAT ZP, 21PC/LB

$

$

Not available

6

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

7

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

8

Bear Cat 15367

BOLT, 5/16X3/4 GR5 NC ZP CRG

$

$

Not available

9

Bear Cat 15402

NUT 5/16-18 TINNERMAN U-TYPE

$

$

Not available

10

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

11

17755

ANTI-SEIZE LUBRICANT 8 OZ BRUSH TOP BTL (APPLIED TO SPINDLE THREADS ON TRIMMER PULLEY)

$

$

Not available

12

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

13

Bear Cat 18950-00

RIVET, PLASTIC 1/4 X 7/8

$3.49

$

Usually ships in 3-7 days

0

14

30307-00

DECAL, WT190 INFORMATION

$

$

Not available

15

Bear Cat 71629-12

MOWBALL, CAST TRIMMER

$

$

Not available

16

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

17

70766-35

BODY, TRIMMER STANDOFF

$

$

Not available

18

Bear Cat 70767-12

BOTTOM, TRIMMER STANDOFF

$110.99

$

Usually ships in 3-7 days

0

19

70768-35

COVER, TRIMMER STANDOFF

$

$

Not available

20

Bear Cat 72705-12

DISK, TRIMMER HEAD

$

$

Not available

21

Bear Cat 72723

FLAP, TRIMMER

$33.99

$

Usually ships in 3-7 days

0

22

Bear Cat 72754

WELDMENT, TRIMMER PULLEY

$106.99

$

Usually ships in 3-7 days

0

23

Bear Cat 72755-12

WELDMENT, SPINDLE HUB

$87.99

$

Usually ships in 3-7 days

0

24

Bear Cat 72759

SPACER, TRIMMER SPINDLE

$15.99

$

Usually ships in 3-7 days

0

25

Bear Cat 72781-12

SPACER, TRIMMER HEAD

$

$

Not available
