WT 189 - Bear Cat Walk-Behind Trimmer, 190cc Subaru (SN: E04271 - H04224) Drive SN: E04271 - E07989 Parts Diagram

Walk-Behind Trimmer, 190cc Subaru

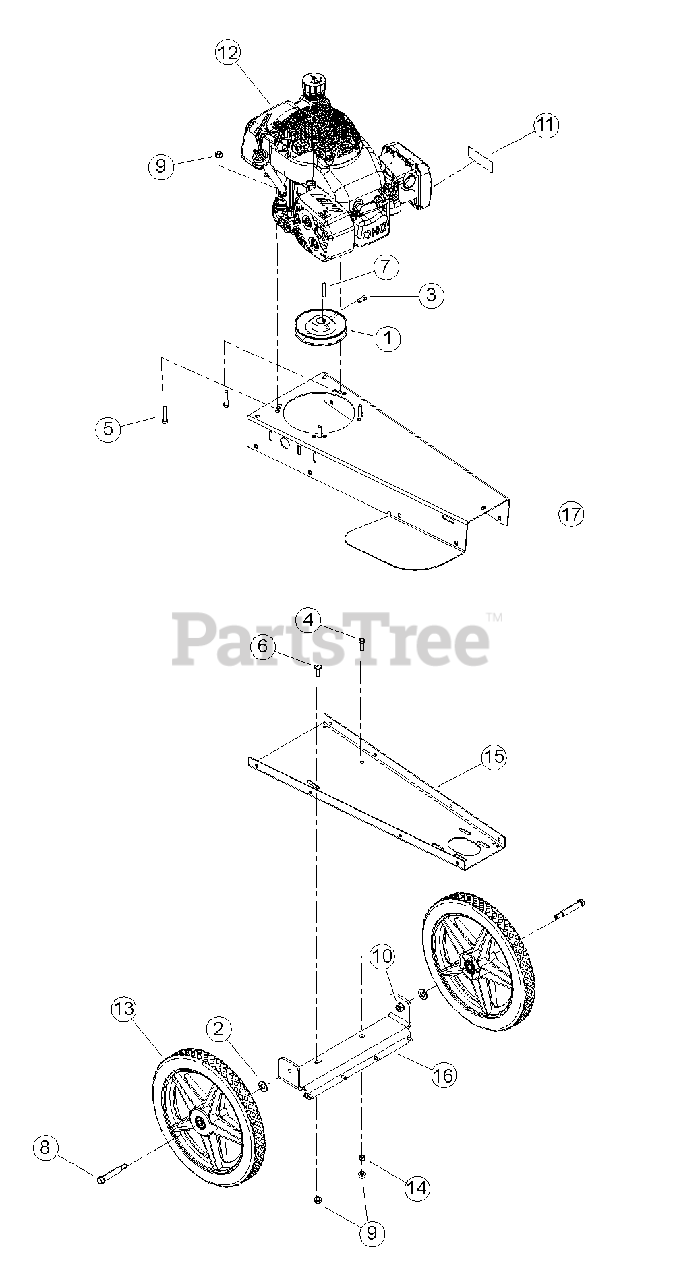

Drive SN: E04271 - E07989 Parts Diagram

  • Title
1

Bear Cat 12319

PULLEY, 5.0 X 7/8 AB

$54.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15097

WASHER, 1/2 SAE FLAT

$

$

Not available

3

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

4

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

5

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

7

Bear Cat 15434

KEY, 3/16 SQUARE X 1-1/2 LONG PLAIN

$1.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15875-00

BOLT, 3/8-16 X 3-1/4 ZP FLANGE SHOULDER

$16.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

10

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

12

ENGINE, SUBARU EA 190V

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED SUBARU ENGINE DEALER.)

$

$

Not available

13

Bear Cat 31996-00

WHEEL, 14 X 1/75 TRIMMER

$42.99

$

In Stock, only 2 left!

0

14

Bear Cat 70321-00

SPACER, .334 X .50 X .29

$18.99

$

Usually ships in 3-7 days

0

15

70322-12

BOTTOM, TRIMMER FRAME

$

$

Not available

16

Bear Cat 70323-12

PLATE, WT190 AXLE

$89.99

$

Usually ships in 3-7 days

0

17

Bear Cat 73630-35

BODY, TRIMMER

$184.99

$

Usually ships in 3-7 days

0
