WT 189 - Bear Cat Walk-Behind Trimmer, 190cc Subaru (SN: E04271 - H04224) Body SN: E04271 - E07989 Parts Diagram

Walk-Behind Trimmer, 190cc Subaru

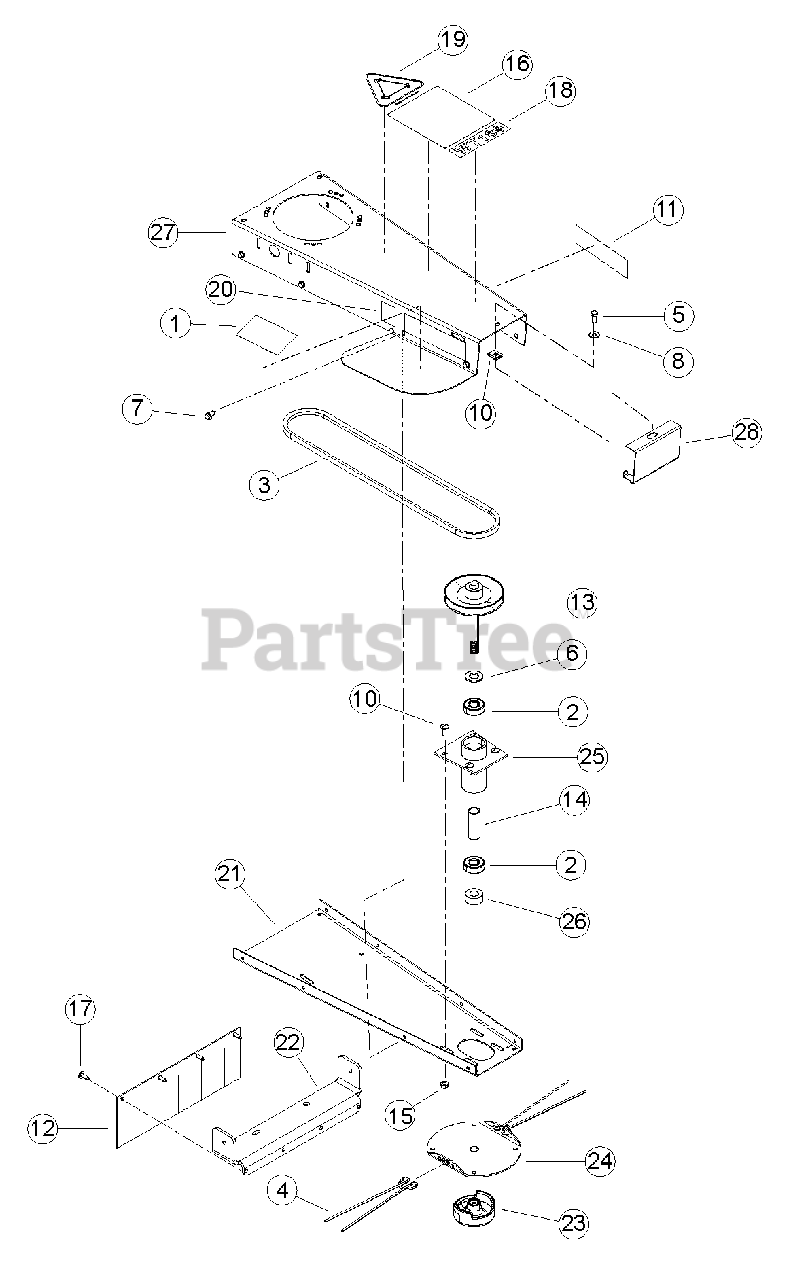

Body SN: E04271 - E07989 Parts Diagram

  • Title
1

Bear Cat 12254

DECAL, GRINDER DANGER

$6.49

$

Usually ships in 3-7 days

0

2

Bear Cat 12314

BEARING, 3/4 BALL

$22.99

$

In Stock, only 1 left!

0

3

Bear Cat 12317

BELT, 4L 53 ARAMID

$42.99

$

In Stock, only 1 left!

0

4

Bear Cat 12348

STRING, .155 X 20-1/2

$

$

Not available

5

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

6

15098

WASHER, 3/4 SAE FLAT ZP

$

$

Not available

7

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

9

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

10

Bear Cat 15402

NUT, 5/16-18 TINNERMAN U-TYPE

$

$

Not available

11

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

12

Bear Cat 72723

FLAP, TRIMMER

$33.99

$

Usually ships in 3-7 days

0

13

Bear Cat 72754

WELDMENT, TRIMMER PULLEY

$106.99

$

Usually ships in 3-7 days

0

14

Bear Cat 72759

SPACER, TRIMMER SPINDLE

$15.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 18949-00

DECAL, MANUAL/SAFETY INFO

$10.99

$

Usually ships in 3-7 days

0

17

Bear Cat 18950-00

RIVET, PLASTIC 1/4 X 7/8

$3.49

$

Usually ships in 3-7 days

0

18

30166-00

DECAL, MODEL WT189

$

$

Not available

19

Bear Cat 31392-00

DECAL, RECLAIM IT

$9.49

$

Usually ships in 3-7 days

0

20

Bear Cat 32392-00

DECAL, ECHO BEAR CAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

21

70322-12

BOTTOM, TRIMMER FRAME

$

$

Not available

22

Bear Cat 70323-12

PLATE, WT190 AXLE

$89.99

$

Usually ships in 3-7 days

0

23

Bear Cat 71629-12

MOWBALL, CAST TRIMMER

$

$

Not available

24

Bear Cat 72705-12

DISK, TRIMMER HEAD

$

$

Not available

25

Bear Cat 72755-12

WELDMENT, SPINDLE HUB

$87.99

$

Usually ships in 3-7 days

0

26

Bear Cat 72781-12

SPACER, TRIMMER HEAD

$

$

Not available

27

Bear Cat 73630-35

BODY, TRIMMER

$184.99

$

Usually ships in 3-7 days

0

28

Bear Cat 75519-35

COVER, FRONT TRIMMER

$45.99

$

Usually ships in 3-7 days

0
