WT-1610 T - Echo Wheeled Trimmer (SN: 110WTB000001 - 110WTB999999) Drive Parts Diagram

Wheeled Trimmer

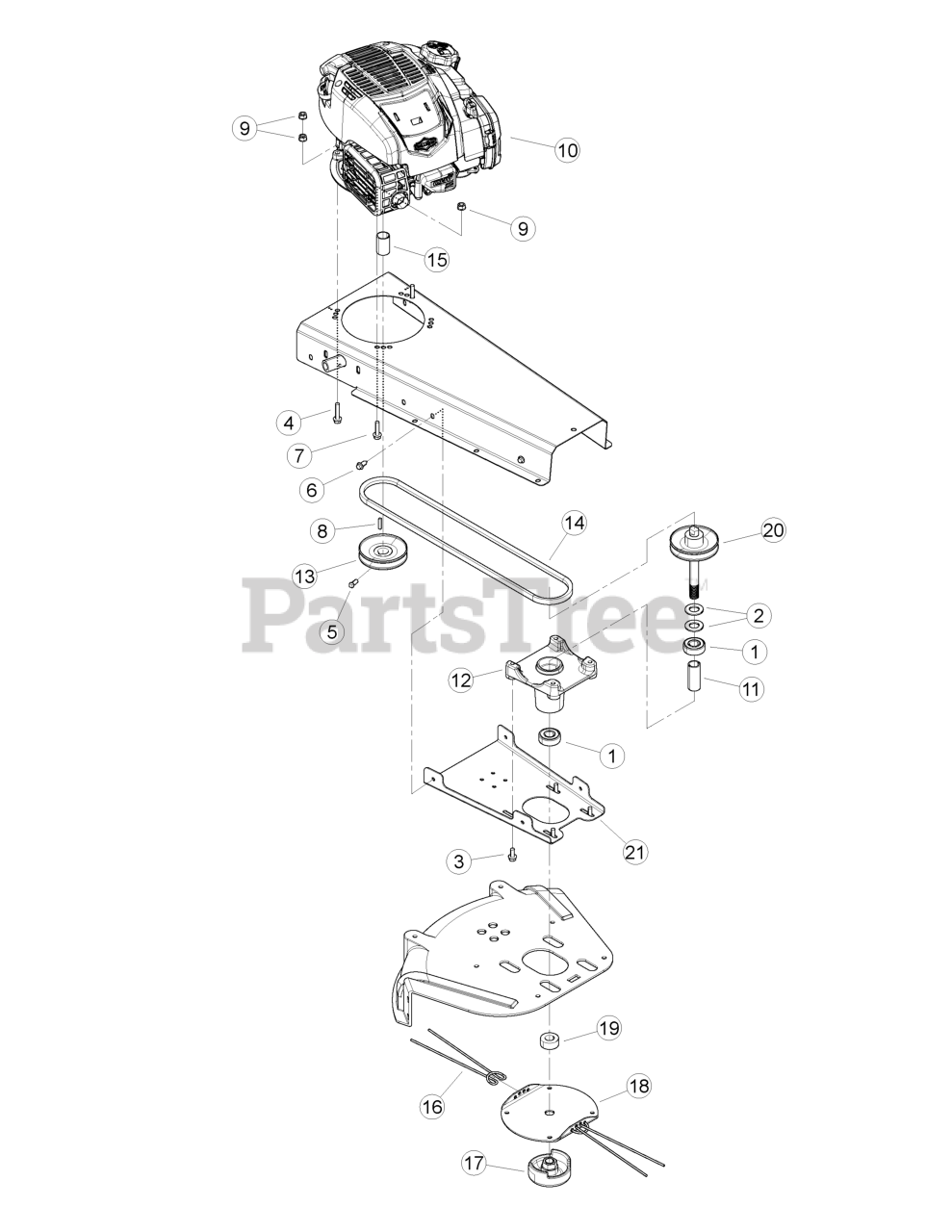

Drive Parts Diagram

  • Title

1

Echo YH453000080

BEARING, 3/4 BALL

$13.99

$

Usually ships in 2-4 days

0

2

Echo YH451000390

WASHER, 3/4" SAE FLAT ZP

$0.99

$

Usually ships in 2-4 days

0

3

Echo YH436000010

BOLT, 5/16 × 3/4 FLANGE NC

$0.99

$

Usually ships in 2-4 days

0

4

Echo YH436000060

BOLT, 5/16 × 1-1/2 FLANGE NC

$1.49

$

Usually ships in 2-4 days

0

5

Echo YH426000000

SCREW, 5/16-18 × 5/8 SQ HD SET

$0.99

$

Usually ships in 2-4 days

0

6

Echo YH428000000

SCREW, 11/32-12 × 7/8 FLANGE T-AB

$1.99

$

Usually ships in 2-4 days

0

7

Echo YH436000120

BOLT, 5/16 × 1-1/4 FLANGE NC

$1.49

$

Usually ships in 2-4 days

0

8

Echo YH469000040

KEY, 3/16" × 1.00" LG SQUARE

$1.49

$

Usually ships in 2-4 days

0

9

Echo YH449000040

NUT, 5/16-18 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

10

ENGINE, BRIGGS 163cc VERTICAL

$

$

Not available

11

Echo YH475000200

SPACER, TRIMMER SPINDLE

$11.99

$

Usually ships in 2-4 days

0

12

Echo YH479000860

CASTING, TRIMMER SPINDLE HUB

$159.99

$

Usually ships in 2-4 days

0

13

Echo YH472000090

PULLEY, ENGINE 4.0 × .875 B GROOVE

$55.99

$

Usually ships in 2-4 days

0

14

Echo YH454000020

BELT, AX48

$32.99

$

Usually ships in 2-4 days

0

15

Echo YH475000220

SPACER, 1-1/16 OD × 14 GA × 1.630

$14.99

$

Usually ships in 2-4 days

0

16

STRING, 20" × .155 DIA. Cross-Fire®

$

$

Not available

17

Echo YH457000060

MOWBALL, CAST TRIMMER PAINTED

$61.99

$

In Stock, only 2 left!

0

18

Echo YH457000070

DISK, TRIMMER HEAD

$44.99

$

In Stock, only 2 left!

0

19

Echo YH475000230

SPACER, TRIMMER HEAD

$11.99

$

Usually ships in 2-4 days

0

20

Echo YH472000110

WELDMENT, SPINDLE HW MODELS

$77.99

$

Usually ships in 2-4 days

0

21

Echo YH479001420

PLATE, SPINDLE CASTING MOUNT

$35.99

$

Usually ships in 2-4 days

0
