WT-1610 SP - Echo Wheeled Trimmer (SN: 130WTB000001 - 130WTB999999) Handle Bar - SN: 130WTB000398 - 130WTB999999 Parts Diagram

Wheeled Trimmer

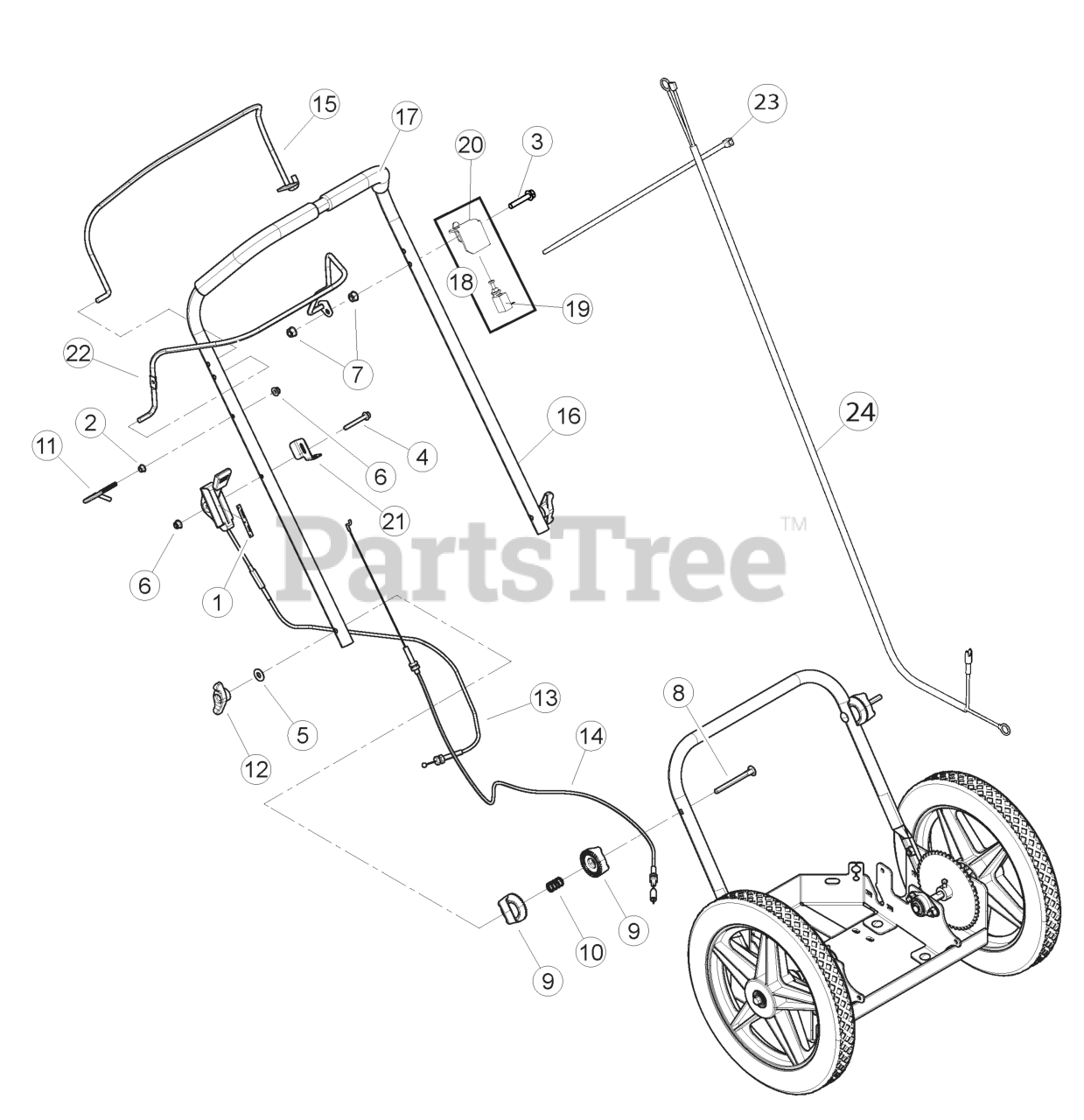

Handle Bar - SN: 130WTB000398 - 130WTB999999 Parts Diagram

  • Title
1

Echo YH653000200

DECAL, 3 SPEED

$4.49

$

Usually ships in 2-4 days

0

2

Echo YH449000010

NUT, 1/4"-20 SERRATED FLANGE NC ZP

$0.99

$

Usually ships in 2-4 days

0

3

Echo YH436000070

BOLT, 5/16 × 1-3/4 FLANGE NC

$2.99

$

Usually ships in 2-4 days

0

4

Echo YH436000110

BOLT, 1/4 × 2 FLANGE NC

$1.99

$

Usually ships in 2-4 days

0

5

Echo YH451000440

WASHER, 5/16 FLAT

$0.99

$

Usually ships in 2-4 days

0

6

Echo YH449000030

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 2-4 days

0

7

Echo YH449000040

NUT, 5/16-18 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

8

Echo YH434000160

BOLT, 5/16-18 × 3-1/2 LONG NECK GR5 CRG ZP

$12.99

$

Usually ships in 2-4 days

0

9

Echo YH452000680

RETAINER, HANDLE BAR ADJUSTMENT

$2.49

$

Usually ships in 2-4 days

0

10

Echo YH476000180

SPRING, RETAINER COMPRESSION

$4.49

$

Usually ships in 2-4 days

0

11

Echo YH470000610

GUIDE, RECOIL ROPE

$23.99

$

Usually ships in 2-4 days

0

12

Echo YH452000690

KNOB, 5/16-18 FEEM TEE

$4.49

$

In Stock, only 2 left!

0

13

Echo YH601000120

CABLE, 3 SPEED WT

$81.99

$

Usually ships in 2-4 days

0

14

Echo YH601000150

CABLE, TRANS ENGAGE WT

$41.99

$

Usually ships in 2-4 days

0

15

Echo YH470000730

ASSEMBLY, BAIL HW TRIMMERS

$45.99

$

Usually ships in 2-4 days

0

16

Echo YH466000210

ASSEMBLY, UPPER HANDLE BAR WITH GRIPS

$169.99

$

Usually ships in 2-4 days

0

17

Echo YH466000150

PAD, FOAM HANDLE BAR

$14.99

$

Usually ships in 2-4 days

0

18

Echo YH321000360

SWITCH KIT,BRACKET AND KILL

$70.99

$

In Stock, only 1 left!

0

19

SWITCH, ENGINE KILL

$

$

Not available

20

BRACKET, WT KILL SWITCH

$

$

Not available

21

Echo YH479001900

BRACKET, WT ENGAGE CABLE

$14.99

$

Usually ships in 2-4 days

0

22

Echo YH470000880

ASSEMBLY, BAIL WT TRIMMERS

$60.99

$

Usually ships in 2-4 days

0

23

STRAP, 11 IN BLACK TIE

$

$

Not available

24

Echo YH601000160

HARNESS, BRIGGS HW KILL SWITCH

$73.99

$

Usually ships in 2-4 days

0
