WT-1610 HSP - Echo Wheeled Trimmer (SN: 120WTH000001 - 120WTH999999) Drive Parts Diagram

Wheeled Trimmer

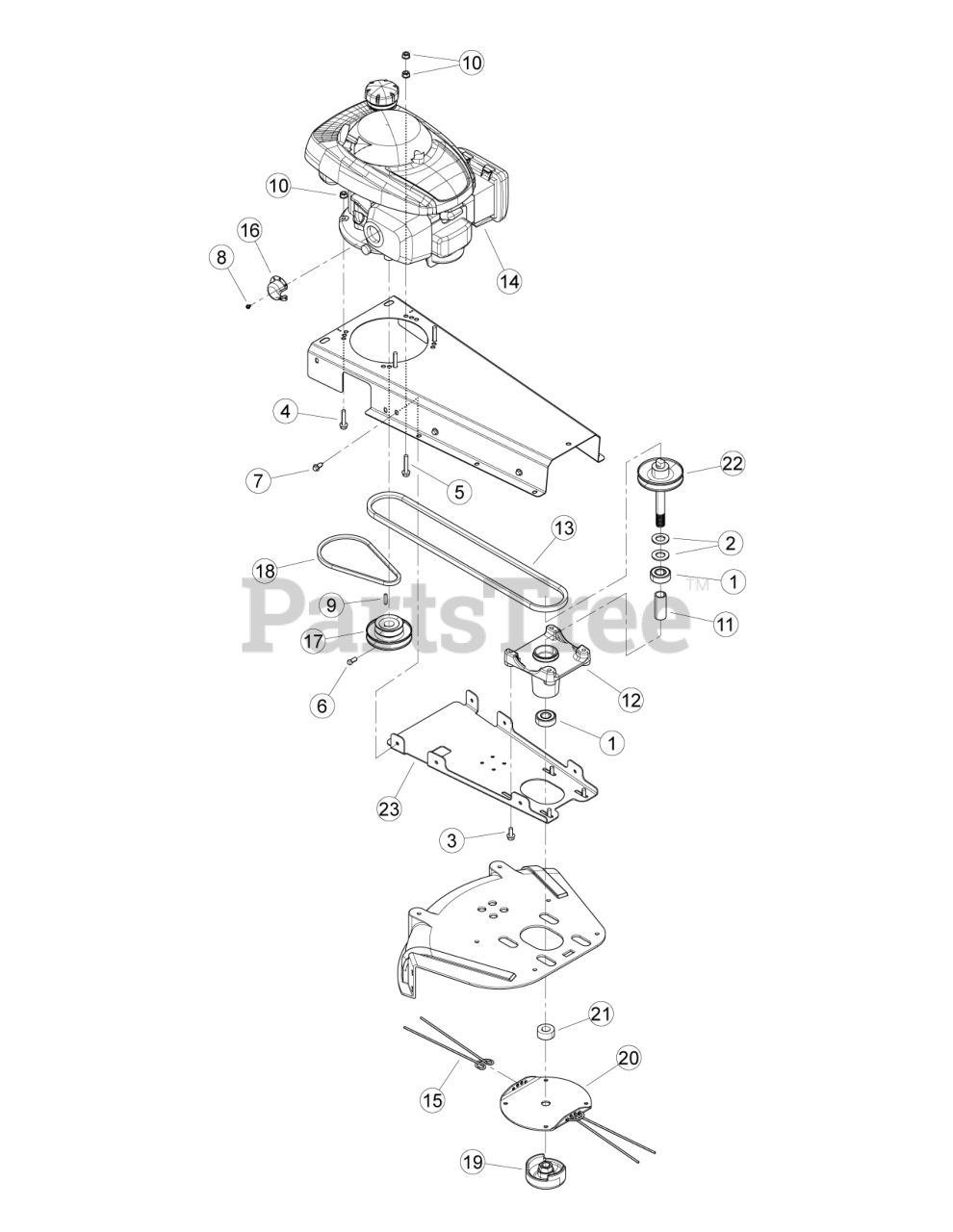

Drive Parts Diagram

  • Title

1

Echo YH453000080

BEARING, 3/4 BALL

$13.99

$

Usually ships in 2-4 days

0

2

Echo YH451000390

WASHER, 3/4" SAE FLAT ZP

$0.99

$

Usually ships in 2-4 days

0

3

Echo YH436000010

BOLT, 5/16 × 3/4 FLANGE NC

$0.99

$

Usually ships in 2-4 days

0

4

Echo YH436000060

BOLT, 5/16 × 1-1/2 FLANGE NC

$1.49

$

Usually ships in 2-4 days

0

5

Echo YH436000070

BOLT, 5/16 × 1-3/4 FLANGE NC

$2.99

$

Usually ships in 2-4 days

0

6

Echo YH426000000

SCREW, 5/16-18 × 5/8 SQ HD SET

$0.99

$

Usually ships in 2-4 days

0

7

Echo YH428000000

SCREW, 11/32-12 × 7/8 FLANGE T-AB

$1.99

$

Usually ships in 2-4 days

0

8

SCREW, 8-32 X 1/4 HEX THREAD CUTTING

$

$

Not available

9

Echo YH469000040

KEY, 3/16" × 1.00" LG SQUARE

$1.49

$

Usually ships in 2-4 days

0

10

Echo YH449000040

NUT, 5/16-18 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

11

Echo YH475000200

SPACER, TRIMMER SPINDLE

$11.99

$

Usually ships in 2-4 days

0

12

Echo YH479000860

CASTING, TRIMMER SPINDLE HUB

$159.99

$

Usually ships in 2-4 days

0

13

Echo YH454000020

BELT, AX48

$32.99

$

Usually ships in 2-4 days

0

14

ENGINE, HONDA 160CC VERTICAL

$

$

Not available

15

STRING, 20" X .155 DIA. CROSS-FIRE

$

$

Not available

16

DEFLECTOR, HONDA GCV 160

$

$

Not available

17

Echo YH472000100

PULLEY, 4.0/2.5 X .875

$76.99

$

Usually ships in 2-4 days

0

18

Echo YH454000040

BELT, 3L220

$14.99

$

Usually ships in 2-4 days

0

19

Echo YH457000060

MOWBALL, CAST TRIMMER PAINTED

$61.99

$

In Stock, only 2 left!

0

20

Echo YH457000070

DISK, TRIMMER HEAD

$44.99

$

In Stock, only 2 left!

0

21

Echo YH475000230

SPACER, TRIMMER HEAD

$11.99

$

Usually ships in 2-4 days

0

22

Echo YH472000110

WELDMENT, SPINDLE HW MODELS

$77.99

$

Usually ships in 2-4 days

0

23

Echo YH479001890

PLATE, HWS SPINDLE CASTING MOUNT

$47.99

$

Usually ships in 2-4 days

0
