WT-1610 - Echo Wheeled Trimmer (SN: 100WTB000001 - 100WTB999999) BODY Parts Diagram

Wheeled Trimmer

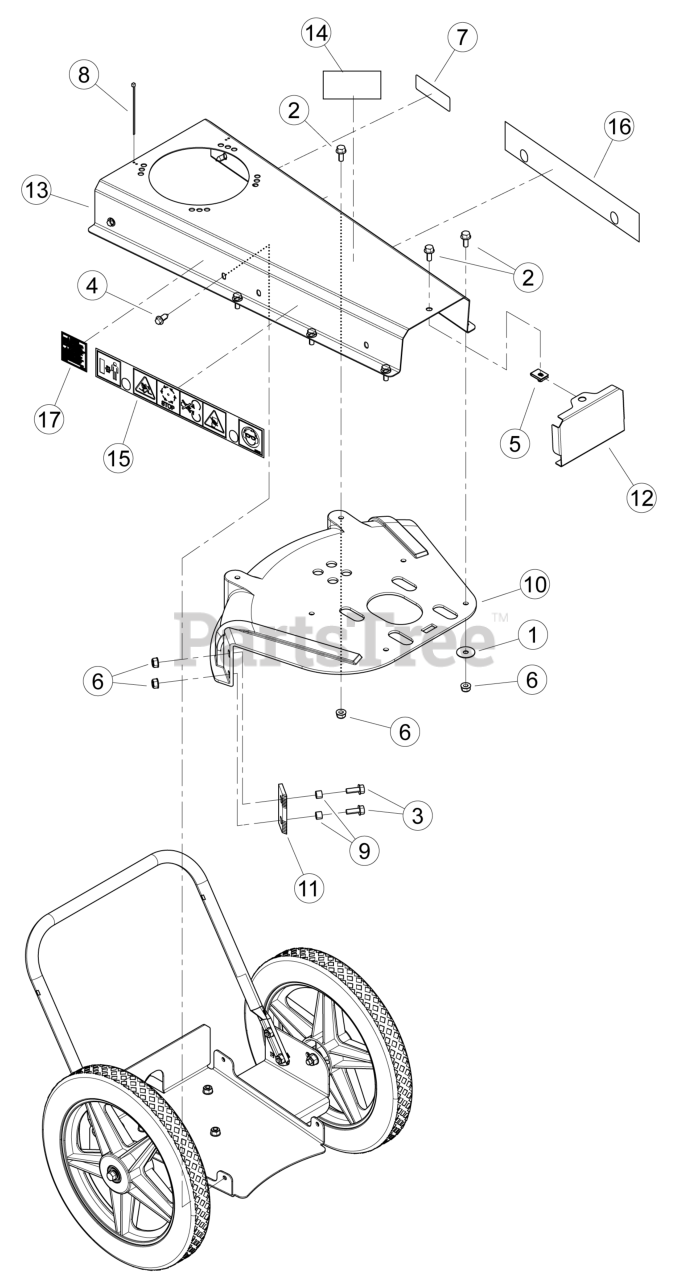

BODY Parts Diagram

  • Title

1

Echo YH451000070

WASHER, 5/16" FENDER ZP

$0.99

$

Usually ships in 2-4 days

0

2

Echo YH436000010

BOLT, 5/16 × 3/4 FLANGE NC

$0.99

$

Usually ships in 2-4 days

0

3

Echo YH436000030

BOLT, 5/16 × 7/8 FLANGE NC

$1.49

$

Usually ships in 2-4 days

0

4

Echo YH428000000

SCREW, 11/32-12 × 7/8 FLANGE T-AB

$1.99

$

Usually ships in 2-4 days

0

5

Echo YH449000020

NUT 5/16"-18 TINNERMAN U-TYPE

$3.99

$

Usually ships in 2-4 days

0

6

Echo YH449000040

NUT, 5/16-18 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

7

DECAL, SERIAL NUMBER

$

$

Not available

8

STRAP, 4 IN BLACK

$

$

Not available

9

Echo YH475000210

SPACER, PLASTIC TRIMMER SHIELD

$5.99

$

Usually ships in 2-4 days

0

10

Echo YH479000870

SHIELD, TRIMMER

$82.99

$

Usually ships in 2-4 days

0

11

Echo YH457000010

KNIFE, RECTANGULAR SHREDDING

$36.99

$

Usually ships in 2-4 days

0

12

Echo YH479001920

COVER, METAL HW TRIMMERS

$40.99

$

Usually ships in 2-4 days

0

13

Echo YH479001930

ASSEMBLY, BODY WITH DECALS

Note: Includes Items 14-17

$170.99

$

Usually ships in 2-4 days

0

14

Echo YH653000000

DECAL, MODEL ECHO WT-1610

$9.49

$

Usually ships in 2-4 days

0

15

Echo YH653000230

DECAL, HW SAFETY INFORMATION

$7.99

$

Usually ships in 2-4 days

0

16

Echo YH653000240

DECAL, HW MAINTENANCE INFORMATION

$10.99

$

Usually ships in 2-4 days

0

17

Echo YH653000290

DECAL, SPARK ARRESTOR

$4.99

$

Usually ships in 2-4 days

0
