WST 22 (25A-26R3B93) - Craftsman 22" Walk-Behind Trimmer (2023) Handle Assembly Parts Diagram

22" Walk-Behind Trimmer

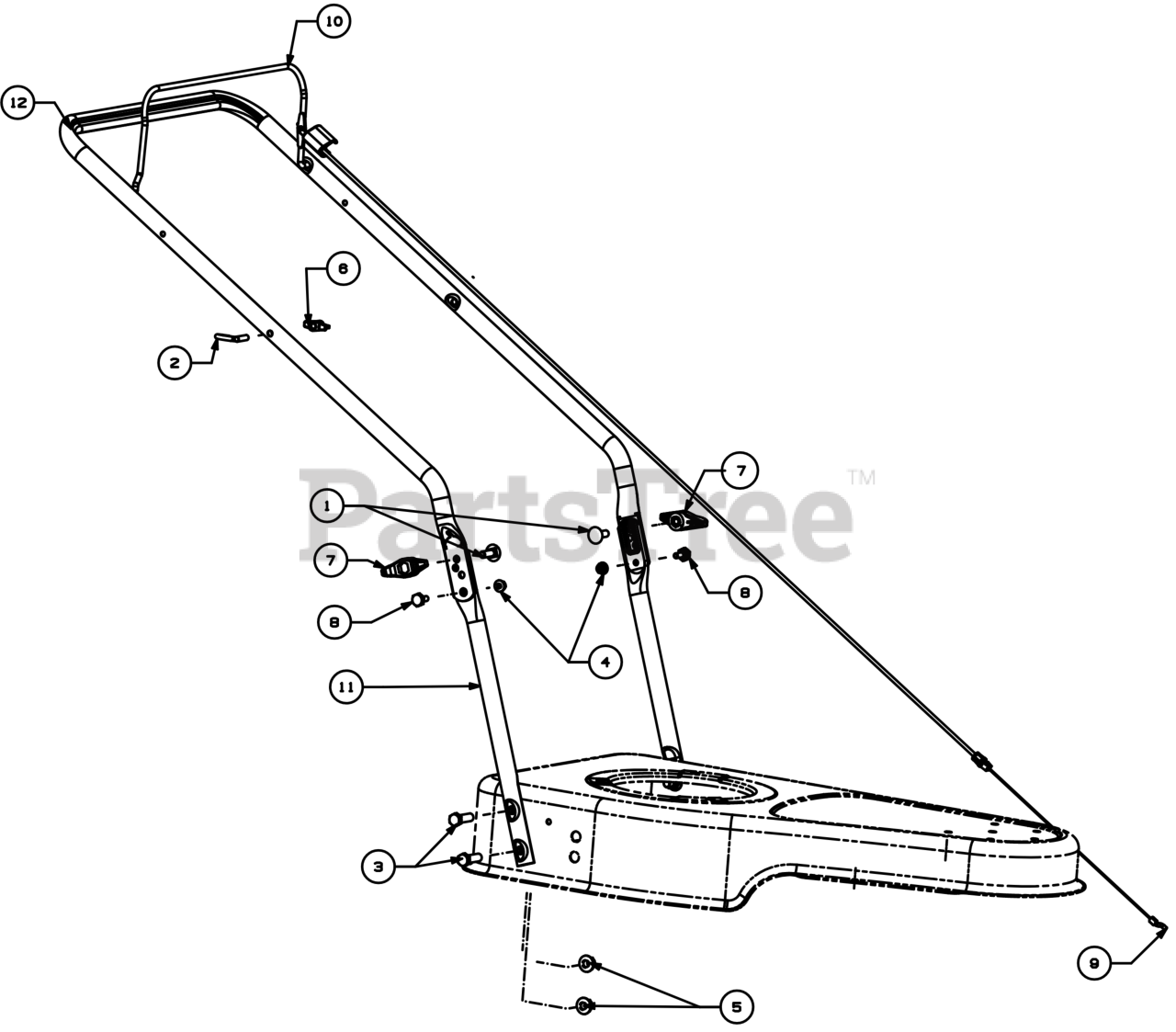

Handle Assembly Parts Diagram

  • Title

1

MTD 710-04998

SCREW 5/16-18 x 1.00 GR5

$5.99

$

In Stock, Qty 14

0

2

MTD 710-1205

EYEBOLT 1/4-20

$3.99

$

In Stock, only 4 left!

0

3

MTD 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

6

MTD 720-0279

HANDLE KNOB

$4.49

$

In Stock, Qty 10

0

7

MTD 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

MTD 738-04419A

SHOULDER SCREW

$4.49

$

In Stock, Qty 18

0

9

MTD 746-05179

CONTROL CABLE
(Superseded to 746P05179)

$15.99

$

Usually ships in 3-6 days

0

10

MTD 747-06246

OPERATOR BAIL

Variations

MTD 747-06246-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

11

MTD 749-05102

LOWER HANDLE (ADJUSTABLE)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-05102-0637

Lower Handle with Adjust - POWDER BLACK (0637)

$11.99

$

In Stock, Qty 7

0

$10.99

$

Usually ships in 3-6 days

0

12

MTD 749-05228

HANDLE (UPPER)

Note: *CHOOSE COLOR WHEN ORDERING*

$34.99

$

Usually ships in 3-6 days

0
