WST 100 (25A-26SD710) - Cub Cadet Walk-Behind Trimmer (2022) Spindle Assembly Parts Diagram

Walk-Behind Trimmer

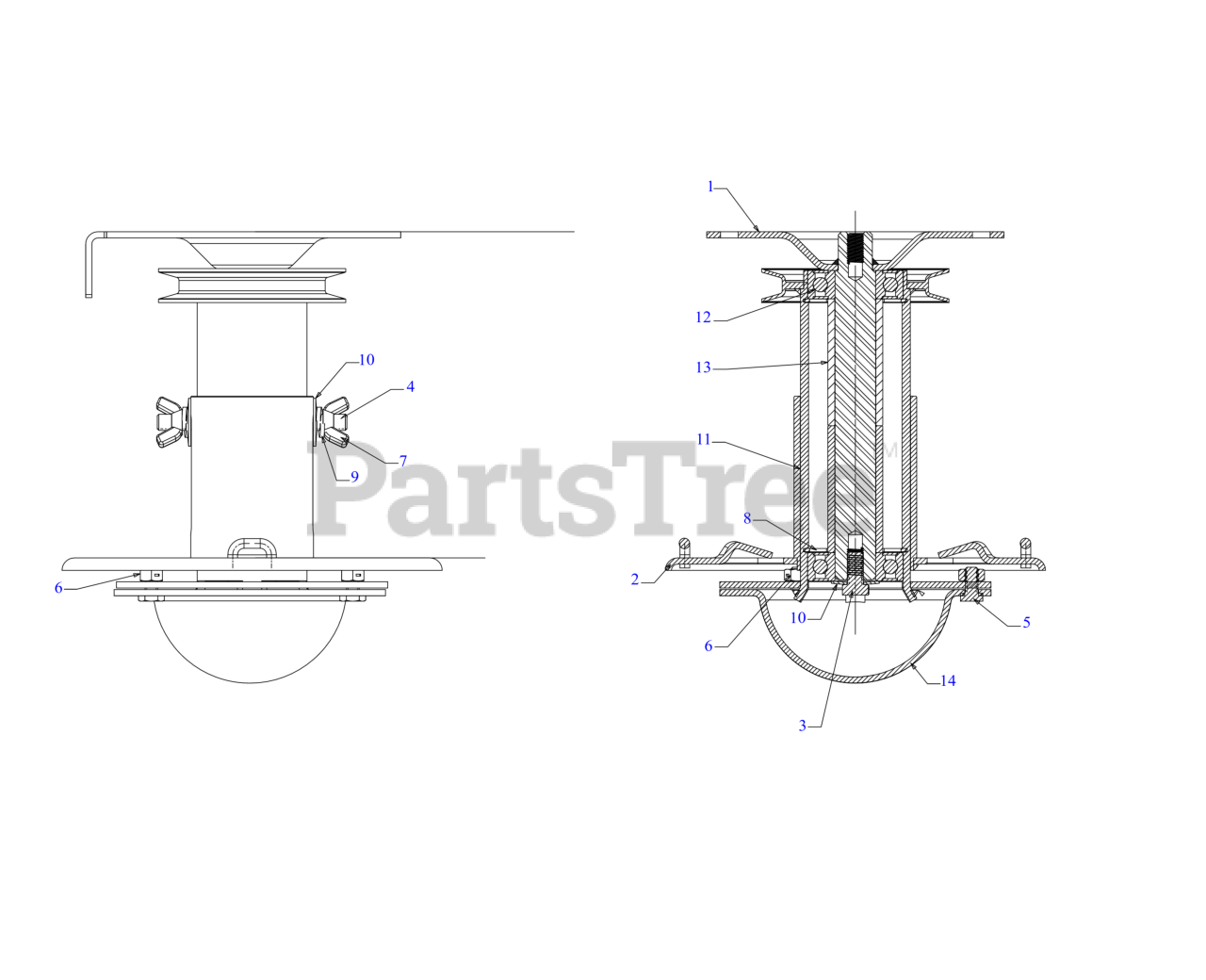

Spindle Assembly Parts Diagram

  • Title
1

NOT SERVICEABLE

$

$

Not available

2

NOT SERVICEABLE

$

$

Not available

3

Cub Cadet 710-0170

HEX SCREW 5/16-24 x .62

$6.99

$

In Stock, only 1 left!

0

4

NOT SERVICEABLE

$

$

Not available

5

Cub Cadet 710-3013

SCREW 1/4-20X.5 GR5

$4.99

$

In Stock, Qty 11

0

6

Cub Cadet 912-0291

HEX LOCK NUT
(Superseded to 712-0291)

$

$

Not available

7

NOT SERVICEABLE

$

$

Not available

8

Cub Cadet 716-04102

RETAINING RING

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 936-0425

BELL WASHER
(Superseded to 736-0425)

$

$

Not available

11

NOT SERVICEABLE

$

$

Not available

12

Cub Cadet 941-0919B

BALL BEARING

$21.99

$

In Stock, Qty 20+

0

13

NOT SERVICEABLE

$

$

Not available

14

Cub Cadet 982-0143A

SKID ASSEMBLY

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 918-07086

SPINDLE ASSEMBLY

Note: (Complete Assembly)

$344.99

$

In Stock, only 1 left!

0
