WSP50 AA (WS5A) - Honda Water Pump, Made in USA (SN: WS5A-6400001 - WS5A-9999999) WSP50 & WSP100 Parts Diagram

Water Pump, Made in USA

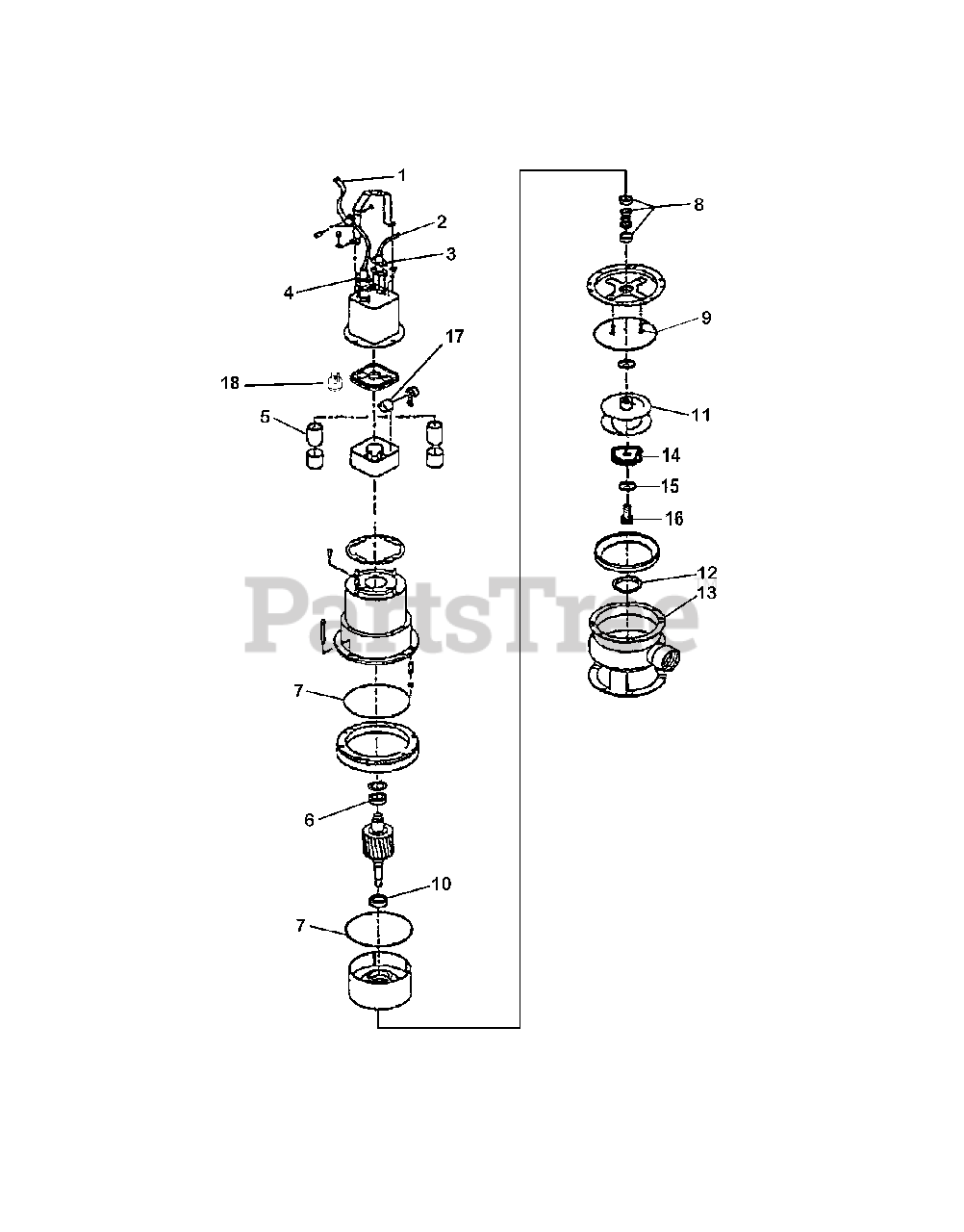

WSP50 & WSP100 Parts Diagram

  • Title

1

Honda 365231121

SEE PART DETAILS - PRI; SWITCH, FLOAT

$153.99

$

Usually ships in 3-6 days

0

2

Honda 367931076

WIRE, POWER

$195.99

$

Usually ships in 3-6 days

0

3

Honda 352665026

CONNECT WIRE

$97.99

$

Usually ships in 3-6 days

0

4

Honda 352665014

GROMMET, CABLE

$31.99

$

Usually ships in 3-6 days

0

5

Honda 361405201

CAPACITOR

$66.99

$

Usually ships in 3-6 days

0

6

Honda 360326203

BEARING (UPPER)

$

$

Not available

7

Honda 360911461

O-RING

$23.99

$

Usually ships in 3-6 days

0

8

Honda 364500025

SEAL KIT

$

$

Not available

9

Honda 360941480

O-RING

$23.99

$

Usually ships in 3-6 days

0

10

Honda 360316303

BEARING (LOWER)

$44.99

$

Usually ships in 3-6 days

0

11

Honda 251450970

IMPELLER

$

$

Not available

12

Honda 251410052

RING, CASING

$40.99

$

Usually ships in 3-6 days

0

13

Honda 251420872

CASE

$362.99

$

Usually ships in 3-6 days

0

14

Honda 360610020

WASHER

$6.49

$

Usually ships in 3-6 days

0

15

Honda 360676027

WASHER, LOCK

$6.49

$

Usually ships in 3-6 days

0

16

Honda 369600027

SCREW

$5.99

$

Usually ships in 3-6 days

0

17

Honda 369450512

PROTECTOR, THERMAL

$

$

Not available

18

Honda 369450020

PROTECTOR, THERMAL

$61.99

$

Usually ships in 3-6 days

0
