WS23-37BV-EFI - Scag Windstorm Blower, 37hp Vanguard (SN: V8900001 - V8999999) WS STEERING CONTROLS Parts Diagram

Windstorm Blower, 37hp Vanguard

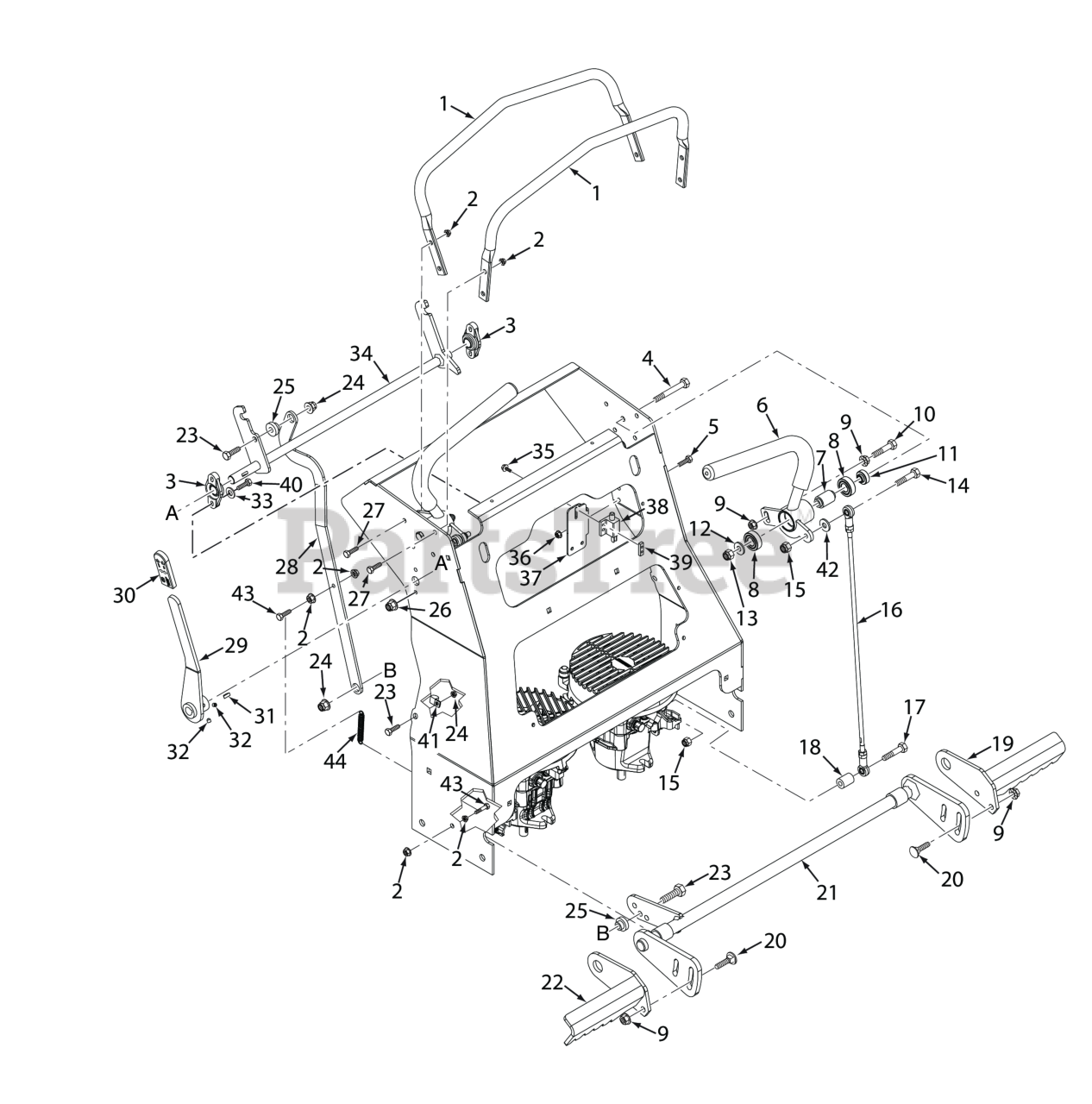

WS STEERING CONTROLS Parts Diagram

  • Title

1

Scag 427189

Reference Bar

$53.99

$

Usually ships in 2-12 days

0

2

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

3

Scag 483504

Bearing

$16.99

$

Usually ships in 2-12 days

0

4

Scag 04001-62

Capscrew, Hex Head 3/8-16 x 3.25"

$1.49

$

In Stock, Qty 11

0

5

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 20+

0

6

Scag 462912

Handlebar Assy., LH

$112.99

$

Usually ships in 2-12 days

0

Scag 462913

Handllevar Assy., RH

$115.99

$

Usually ships in 2-12 days

0

7

Scag 43600

Spacer, Bearing

$10.99

$

Usually ships in 2-12 days

0

8

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

9

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 20+

0

11

Scag 431024

Spacer, Controls

$1.99

$

Usually ships in 2-12 days

0

12

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-10

Bolt, 5/16 - 18 x 1 - 1/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

15

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 485842

Linkage Assy., Steering

$67.99

$

Usually ships in 2-12 days

0

17

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

18

Scag 43976

Spacer (excludes SVRII-36A)

$1.99

$

Usually ships in 2-12 days

0

19

Scag 452842

Brake Paddle Weldment, RH

$50.99

$

Usually ships in 2-12 days

0

20

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

21

Scag 452829

Bellcrank Weldment, Brake

$201.99

$

Usually ships in 2-12 days

0

22

Scag 452841

BRAKE PADDLE WLMT, LH

$35.99

$

Usually ships in 2-12 days

0

23

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 11

0

24

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 48100-30

BUSHING, BRONZE - .376 ID X .627 OD

$1.99

$

Usually ships in 2-12 days

0

26

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

27

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

28

Scag 427547

Link, Brake Engage
(Superseded to 427547)

$31.99

$

In Stock, only 1 left!

0

29

Scag 463265

Lever Assembly, Brake, SVRII

$49.99

$

In Stock, only 1 left!

0

30

Scag 486696

Grip, Brake Handle

$5.49

$

Usually ships in 2-12 days

0

31

Scag 04063-05

KEY, 3/16 X 3/16 X 1-1/2

$1.99

$

In Stock, Qty 12

0

32

Scag 04012-15

Set Screw 1/4-20 x 1/4"

$0.99

$

In Stock, Qty 20+

0

33

Scag 04040-03

Flatwasher, 1/4 (.281 x .625 x .065)

$0.99

$

In Stock, Qty 8

0

34

Scag 453266

Lock Weldment, Neutral

$

$

Not available

35

Scag 04010-12

Screw, Hex-Slotted Washer Head #10 32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

36

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

37

Scag 427269

Bracket, Neutral Switch

$13.99

$

Usually ships in 2-12 days

0

38

Scag 481637

Switch, Interlock, Park Brake Normally Open

$9.99

$

In Stock, Qty 20+

0

39

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0

40

Scag 04001-14

Capscrew, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

41

Scag 48030-24

CLAMP, CABLE - 1.00

$4.99

$

Usually ships in 2-12 days

0

Scag 48030-18

Cable Clamp, Double

$

$

Not available

42

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

43

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

44

Scag 484038

Spring, Deck Lift

$25.99

$

Usually ships in 2-12 days

0
