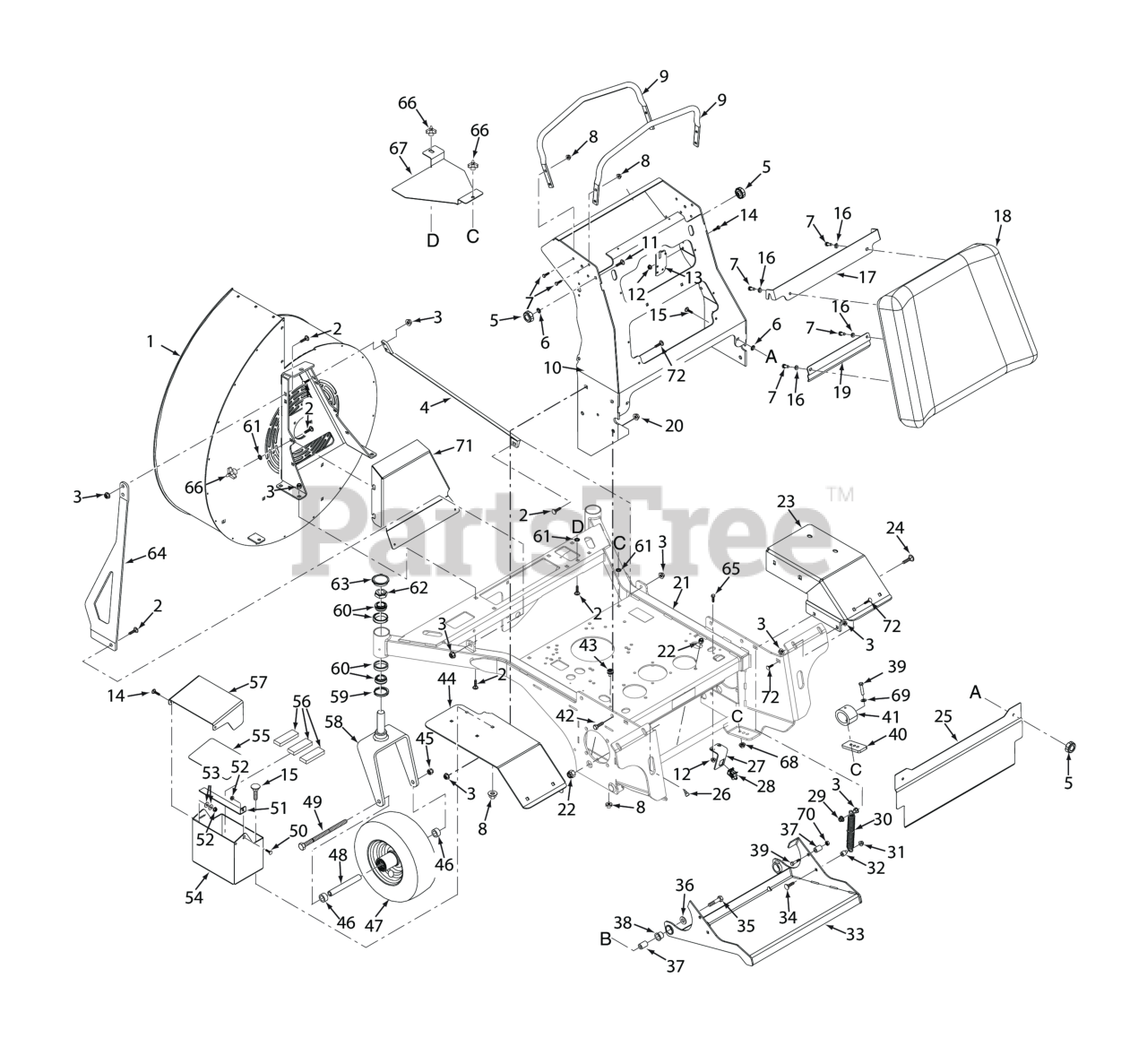

WS23-37BV-EFI - Scag Windstorm Blower, 37hp Vanguard (SN: V8900001 - V8999999) WS SHEET METAL Parts Diagram

Windstorm Blower, 37hp Vanguard

WS SHEET METAL Parts Diagram

  • Title

1

Scag 463312

Blower Housing, With Decal

$836.99

$

Usually ships in 2-12 days

0

2

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

3

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

4

Scag 427830

RH Support Bar, Blower

$83.99

$

Usually ships in 2-12 days

0

5

Scag 481885-06

Knob, 5/16-18

$14.99

$

In Stock, Qty 6

0

6

Scag 04024-03

Nut, Push-On 5/16-18

$1.49

$

In Stock, Qty 16

0

7

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

9

Scag 427189

Reference Bar

$53.99

$

Usually ships in 2-12 days

0

10

Scag 452832

Handlebar Weldment, SVRII

$365.99

$

Usually ships in 2-12 days

0

11

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, Qty 9

0

12

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

13

Scag 427269

Bracket, Neutral Switch

$13.99

$

Usually ships in 2-12 days

0

14

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

15

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

16

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

17

Scag 427289

Bracket, Knee Pad - Upper

$34.99

$

Usually ships in 2-12 days

0

18

Scag 463291

Operator Pad Assy, SVRII (INCL. 10,11,12,13)

$359.99

$

Usually ships in 2-12 days

0

19

Scag 427292

Bracket, Knee Pad - Lower

$17.99

$

Usually ships in 2-12 days

0

20

Scag 04112-05

Locknut, 1/2-13 Spiral Lock

$2.99

$

Usually ships in 2-12 days

0

21

Scag 463311

Mainframe Assembly, With Decals

$

$

Not available

22

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 427253

Fender, RH

$69.99

$

Usually ships in 2-12 days

0

24

Scag 04003-05

Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61")

$0.99

$

In Stock, Qty 18

0

25

Scag 428479

Guard, Foot -SVRII

$41.99

$

Usually ships in 2-12 days

0

26

Scag 485846

BUMPER, PLUG

$8.99

$

Usually ships in 2-12 days

0

27

Scag 428491

Mounting Bracket, Footplate Switch

$7.49

$

Usually ships in 2-12 days

0

28

Scag 48717

SWITCH, NEUTRAL INTERLOCK

$9.99

$

In Stock, only 1 left!

0

29

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 48755

Spring,Counter Balance

$10.99

$

In Stock, only 2 left!

0

31

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

32

Scag 43602

Spacer, Pump Dampener

$2.99

$

In Stock, only 2 left!

0

33

Scag 463264

Footplate Assy, SVRII (Incl. #35)

$249.99

$

Usually ships in 2-12 days

0

34

Scag 04003-38

Bolt, Carriage 5/16-18 x 1-1/2"

$0.99

$

In Stock, only 2 left!

0

35

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 8

0

36

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

37

Scag 43572

Yoke, Front Caster Wheel

$1.99

$

In Stock, Qty 5

0

38

Scag 486834

Bearing, Pivot

$17.99

$

Usually ships in 2-12 days

0

39

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

40

Scag 428526

Riser

$5.49

$

Usually ships in 2-12 days

0

41

Scag 486758

Isolator, Footplate

$15.99

$

In Stock, only 1 left!

0

42

Scag 04017-36

Capscrew, 1/2-13 x 1" Serrated Flange Hex Head

$2.99

$

In Stock, only 2 left!

0

43

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 3 left!

0

44

Scag 427252

Fender, LH

$69.99

$

Usually ships in 2-12 days

0

45

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

46

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

47

Scag 9278

Wheel Assy, 61V, 72V (Incl. 20, 54, 55)

$191.99

$

In Stock, Qty 20+

0

48

Scag 43581

Sleeve, Caster Wheel (48 / 52)

$9.49

$

In Stock, Qty 20+

0

49

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2" (48"/52")

$5.49

$

In Stock, Qty 20+

0

50

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

51

Scag 427318

Battery Box Latch

$9.99

$

Usually ships in 2-12 days

0

52

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

53

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

54

Scag 427316

Battery Box, Lower

$144.99

$

Usually ships in 2-12 days

0

55

Scag 485692

Insulation, Battery Cover (Gas Only)

$4.49

$

Usually ships in 2-12 days

0

56

Scag 48661

PAD, BATTERY SUPPORT

$4.99

$

Usually ships in 2-12 days

0

57

Scag 428066

Battery Box, Upper

$18.99

$

Usually ships in 2-12 days

0

58

Scag 453007

Yoke Weldment, (Black))

$96.99

$

In Stock, only 1 left!

0

59

Scag 481025

Seal, 2.00" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

60

Scag 48668

Bearing Set

$23.99

$

In Stock, Qty 20+

0

61

Scag 04024-02

Nut, Push-On - 3/8" Dia.

$1.49

$

In Stock, Qty 5

0

62

Scag 04021-20

Nut, Elastic Stop 1.0"-14

$4.99

$

In Stock, Qty 20+

0

63

Scag 484195

Cap, Grease

$2.49

$

In Stock, Qty 20+

0

64

Scag 428047

LH Support Bar, Blower

$49.99

$

Usually ships in 2-12 days

0

65

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

66

Scag 04029-04

Wing Nut, 3/8-16 (Small) Top side

$2.99

$

In Stock, Qty 19

0

67

Scag 428046

Belt Cover, Gearbox

$28.99

$

Usually ships in 2-12 days

0

68

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

69

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

0

70

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

71

Scag 427982

Belt Cover, Blower

$25.99

$

Usually ships in 2-12 days

0

72

Scag 04003-31

Bolt, Carriage 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0
