WS23-37BV-EFI - Scag Windstorm Blower, 37hp Vanguard (SN: T2600001 - T2699999) WS ELECTRICAL SYSTEM Parts Diagram

Windstorm Blower, 37hp Vanguard

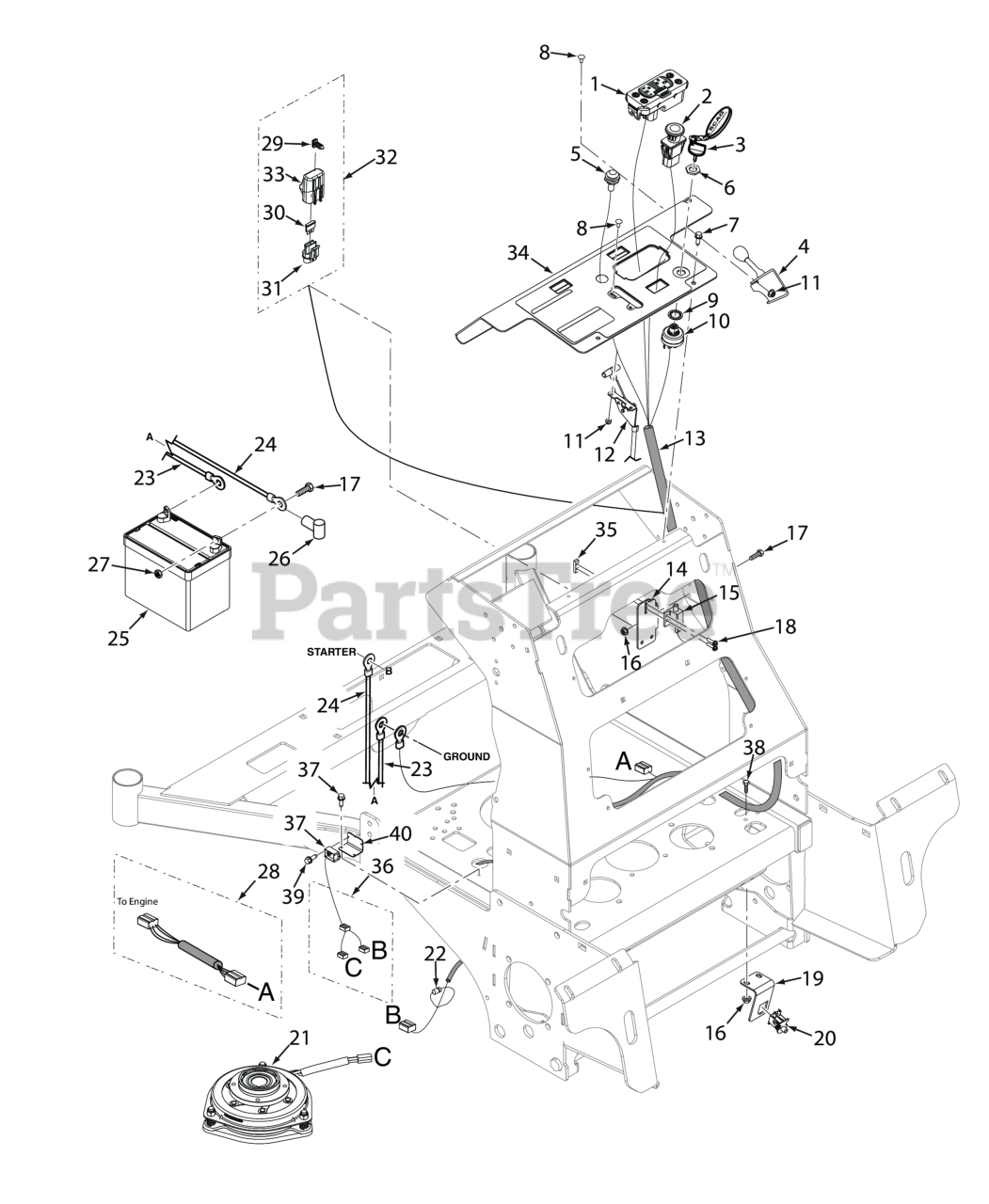

WS ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 484721

Tiger Eye, Cluster Gauge

$374.99

$

In Stock, only 3 left!

0

2

Scag 485833

Switch, PTO - 10 Amp

$47.99

$

In Stock, Qty 14

0

3

Scag 462069

Key, Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

4

Scag 486276

Control Cable, Air Direction

$101.99

$

Usually ships in 2-12 days

0

Scag 483533

Knob, Throttle

$10.99

$

Usually ships in 2-12 days

0

5

Scag 481182

Indicator Light, Glow Plugs (Includes Mounting Hardware)

$47.99

$

Usually ships in 2-12 days

0

6

Scag 48017-04

Nut, 5/8-32 Special

$1.49

$

In Stock, Qty 5

0

7

Scag 04011-14

Screw, Self-Tapping 1/4-20 x 3/4

$0.99

$

In Stock, Qty 13

0

8

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 9

0

9

Scag 48017-03

LOCK WASHER, 5/8" INTERNAL TOOTH

$0.99

$

In Stock, Qty 6

0

10

Scag 48798

KEY SWITCH(INCLUDES MOUNTING HARDWARE)

$27.99

$

In Stock, Qty 20+

0

11

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 10

0

12

Scag 483975

Throttle Control, SVR

$24.99

$

In Stock, Qty 20+

0

13

Scag 486106

Wire Harness, SVRII-EFI

$157.99

$

Usually ships in 2-12 days

0

14

Scag 427269

Bracket, Neutral Switch

$13.99

$

Usually ships in 2-12 days

0

15

Scag 481637

Switch, Interlock, Park Brake Normally Open

$9.99

$

In Stock, Qty 20+

0

16

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 20+

0

18

Scag 04010-12

Screw, Hex-Slotted Washer Head #10 32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

19

Scag 428491

Mounting Bracket, Footplate Switch

$7.49

$

Usually ships in 2-12 days

0

20

Scag 48717

SWITCH, NEUTRAL INTERLOCK

$9.99

$

In Stock, only 3 left!

0

21

Scag 486265

Clutch, GT3.5 (28.6mm Bore)

$673.99

$

Usually ships in 2-12 days

0

22

Scag 483958

Diode, 600V 6 Amp

$2.49

$

In Stock, only 4 left!

0

23

Scag 48029-24

Battery Cable, 39" Black (26EFI) - Kohler

$17.99

$

Usually ships in 2-12 days

0

24

Scag 48029-30

Battery Cable, 44" Red w/Braid (26EFI) - Kohler

$32.99

$

In Stock, only 2 left!

0

25

Scag 483665

Battery, 350 CCA (not available through Scag)

$

$

Not available

26

Scag 48126

RUBBER BOOT

$8.49

$

Usually ships in 2-12 days

0

27

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 20+

0

28

Scag 486139

Wire Harness Adapter, Briggs & Stratton 37 BV-EFI

$24.99

$

Usually ships in 2-12 days

0

29

Scag 482588

Clip, Fuse Holder

$1.99

$

Usually ships in 2-12 days

0

30

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$3.99

$

Usually ships in 2-12 days

0

31

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 7

0

32

Scag 485739

Single Fuse Assy., Excluding Fuse

$33.99

$

Usually ships in 2-12 days

0

33

Scag 483643

Cover, Sealed Single

$4.49

$

In Stock, only 2 left!

0

34

Scag 463348

Control Panel w/Decals

$105.99

$

Usually ships in 2-12 days

0

35

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0

36

Scag 486325

Wire Harness, Clutch Soft Start

$38.99

$

Usually ships in 2-12 days

0

37

Scag 486321

Soft Start Module, Clutch

$165.99

$

Usually ships in 2-12 days

0

38

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 04011-11

Screw, #10-32 x .563 Shakeproof

$0.99

$

In Stock, Qty 8

0

40

Scag 428497

Mounting Bracket, Soft Start Module

$

$

Currently unavailable
