WS23-37BV-EFI - Scag Windstorm Blower, 37hp Vanguard (SN: R9600001 - R9699999) WS IMPELLER DRIVE ASSEMBLY Parts Diagram

Windstorm Blower, 37hp Vanguard

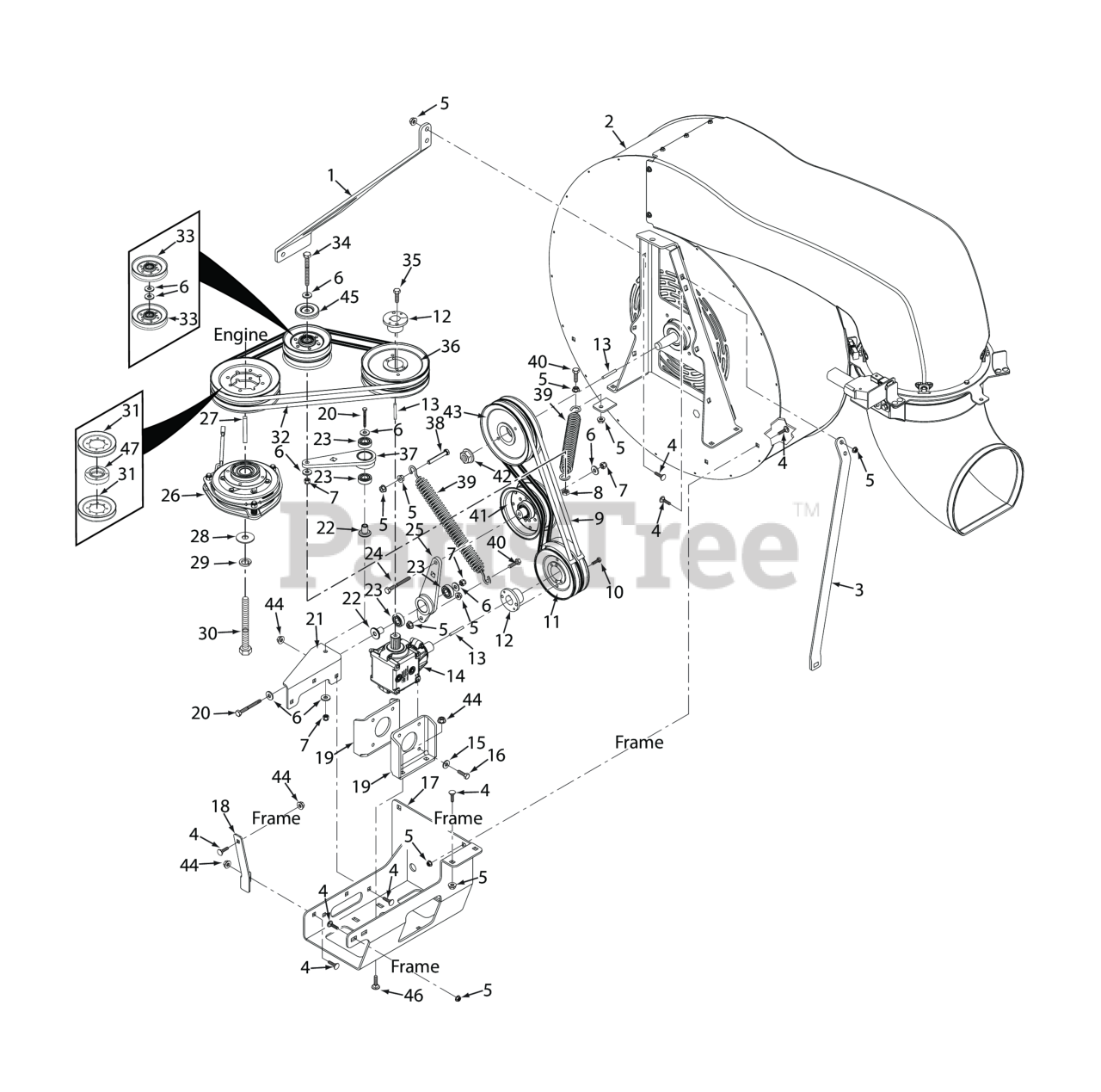

WS IMPELLER DRIVE ASSEMBLY Parts Diagram

  • Title

1

Scag 428047

LH Support Bar, Blower

$49.99

$

Usually ships in 2-12 days

0

2

Scag 463312

Blower Housing, With Decal

$836.99

$

Usually ships in 2-12 days

0

3

Scag 427830

RH Support Bar, Blower

$83.99

$

Usually ships in 2-12 days

0

4

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

5

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

6

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

7

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

9

Scag 486324

C-Belt, Gearbox Output

$62.99

$

Usually ships in 2-12 days

0

10

Scag 04001-224

Hub, Tapered, 1" Bore

$11.99

$

Usually ships in 2-12 days

0

11

Scag 483285

Pulley, Double Groove

$63.99

$

In Stock, only 1 left!

0

12

Scag 48141

TAPERED HUB, 1.00" BORE

$29.99

$

In Stock, only 1 left!

0

13

Scag 04063-01

Key, 1/4 x 1/4 x 1.25" Pulley Mtg.

$1.49

$

In Stock, only 4 left!

0

14

Scag 486380

Gearbox Assembly

$546.99

$

Usually ships in 2-12 days

0

15

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

17

Scag 427811

Mounting Bracket, Gearbox

$168.99

$

Usually ships in 2-12 days

0

18

Scag 427882

Support Strap, Gearbox

$9.99

$

Usually ships in 2-12 days

0

19

Scag 428002

Mounting Plate, Gearbox

$31.99

$

Usually ships in 2-12 days

0

20

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

21

Scag 427815

Idler Arm Bracket, Gearbox

$

$

Not available

22

Scag 43689

Pivot, Idler Short

$10.99

$

In Stock, Qty 20+

0

23

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

24

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 9

0

25

Scag 463157

Idler Arm Assembly, Gearbox Output (INCL. 23)

Note: (INCL. 23)

$60.99

$

Usually ships in 2-12 days

0

26

Scag 486265

Clutch, GT3.5 (28.6mm Bore)

$673.99

$

Usually ships in 2-12 days

0

27

Scag 04063-28

Key, 1/4 x 1/4 x 3-1/2"

$1.49

$

In Stock, Qty 5

0

28

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 12

0

29

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 5

0

30

Scag 04102-06

Bolt, Hex Head 7/16-20 x 3" w/t Patch

$2.49

$

In Stock, Qty 8

0

31

Scag 486172

Pulley, Clutch 7.30 DIA

$37.99

$

Usually ships in 2-12 days

0

32

Scag 486323

Belt, Gearbox Input

$76.99

$

In Stock, only 1 left!

0

33

Scag 48181

IDLER PULLEY, "V" GROOVE

$26.99

$

In Stock, Qty 11

0

34

Scag 04001-51

Capscrew, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

35

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

36

Scag 486267

Pulley, Gearbox Input, 6.95 DIA, Double Groove

$117.99

$

Usually ships in 2-12 days

0

37

Scag 463156

Idler Arm Assembly, Gearbox Input (INCL. 23)

Note: (INCL. 23)

$59.99

$

Usually ships in 2-12 days

0

38

Scag 04001-139

Bolt, Hex Head 3/8-16 x 2-1/2" Grade 8

$1.49

$

Usually ships in 2-12 days

0

39

Scag 483112

Spring, Transmission Drive

$14.99

$

In Stock, only 1 left!

0

40

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

41

Scag 483210

Pulley, Idler 5" Dia.

$55.99

$

In Stock, only 2 left!

0

42

Scag 04112-06

Nut, 3/4-16 Spriral Lock

$11.99

$

In Stock, Qty 5

0

43

Scag 486266

Pulley, Blower, 6.95 DIA, Double Groove

$179.99

$

Usually ships in 2-12 days

0

44

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

45

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, only 2 left!

0

46

Scag 04003-49

Bolt, Carriage 3/8-16 x 1"

$2.99

$

Usually ships in 2-12 days

0

47

Scag 431082

Hub, Clutch Pulley

$114.99

$

Usually ships in 2-12 days

0
