WS23-37BV-EFI - Scag Windstorm Blower, 37hp Vanguard (SN: R9600001 - R9699999) WS IMPELLER ASSEMBLY Parts Diagram

Windstorm Blower, 37hp Vanguard

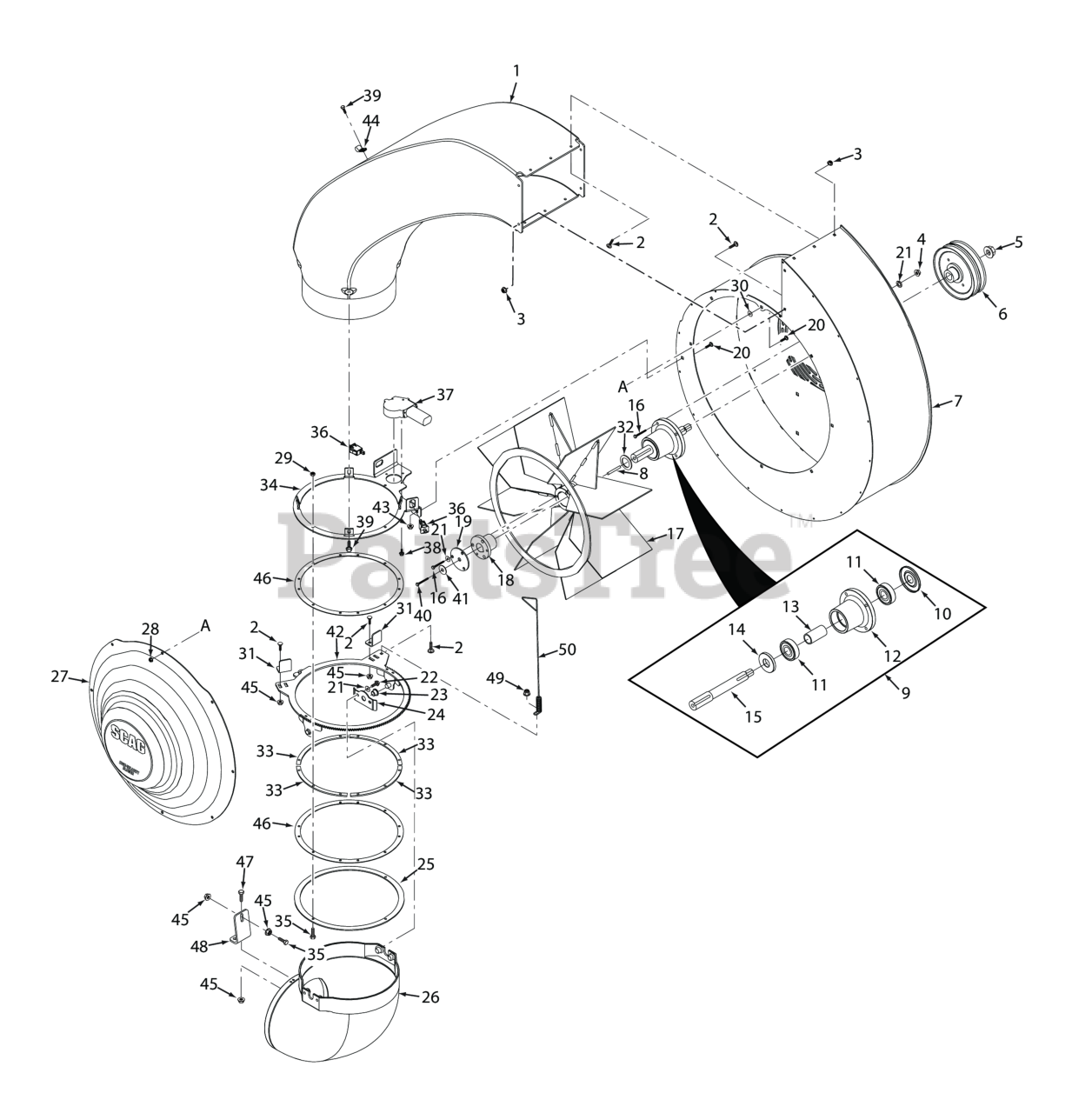

WS IMPELLER ASSEMBLY Parts Diagram

  • Title

1

Scag 486281

Outlet Adapter, Impeller Housing

$298.99

$

Usually ships in 2-12 days

0

2

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

3

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

4

Scag 04021-22

Lock Nut, 5/16-18 Elastic Stop Grade 8

$0.99

$

In Stock, Qty 20+

0

5

Scag 04112-06

Nut, 3/4-16 Spriral Lock

$11.99

$

In Stock, Qty 6

0

6

Scag 486266

Pulley, Blower, 6.95 DIA, Double Groove

$179.99

$

Usually ships in 2-12 days

0

7

Scag 463312

Blower Housing, With Decal

$836.99

$

Usually ships in 2-12 days

0

8

Scag 04063-08

Key, 1/4 x 1/4 x 2.0"

$1.49

$

In Stock, Qty 20+

0

9

Scag 463013

Spindle Assembly (INCL. 10,12,14,15)

Note: (INCL. 10,12,14,15)

$

$

Not available

10

Scag 483304

Debris Shield

$6.49

$

In Stock, Qty 11

0

11

Scag 483303

Bearing

$13.99

$

In Stock, Qty 20+

0

12

Scag 462014

Spindle Housing Assembly

Note: (INCL. 11,13)

$129.99

$

In Stock, only 1 left!

0

13

Scag 43693

Spacer, Bearing

$22.99

$

Usually ships in 2-12 days

0

14

Scag 43694

Protector, Bearing

$28.99

$

In Stock, only 4 left!

0

15

Scag 431066

Shaft, Spindle

$

$

Not available

16

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

17

Scag 452925

Impeller Weldment

$1020.99

$

Usually ships in 2-12 days

0

18

Scag 486046

Bushing, Split Taper 1.125 Bore

$83.99

$

Usually ships in 2-12 days

0

19

Scag 426338

End Plate, Tapered Hub

$56.99

$

In Stock, only 1 left!

0

20

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

21

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-07

Bolt, Hex Head 1/2-13 x 1.5"

$0.99

$

In Stock, Qty 13

0

23

Scag 483453-11

Bearing, Plastic

$4.49

$

In Stock, Qty 14

0

24

Scag 428336

Brace Plate, Nozzle Pivot

$2.99

$

In Stock, only 2 left!

0

25

Scag 427873

Bottom Plate, Pivot Gear

$49.99

$

In Stock, only 2 left!

0

26

Scag 486695

Outlet Nozzle, Impeller Housing

$205.99

$

In Stock, only 1 left!

0

27

Scag 463014

Baffle Weldment, Intake, With Decal

$344.99

$

Usually ships in 2-12 days

0

28

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

30

Scag 04024-03

Nut, Push-On 5/16-18

$1.49

$

In Stock, Qty 14

0

31

Scag 427799

Stop Bracket, Nozzle Limit Switch

$4.99

$

Usually ships in 2-12 days

0

32

Scag 04041-14

Flatwasher, 1" (1.062 x 1.50 x .048")

$0.99

$

In Stock, Qty 14

0

33

Scag 486452

Bearing Plate, Pivot Gear

$8.99

$

In Stock, Qty 15

0

34

Scag 427872

Top Plate, Pivot Gear

$56.99

$

In Stock, Qty 5

0

35

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 15

0

36

Scag 486365

Switch, Plunger, Double Pole, Snap

$12.99

$

In Stock, only 2 left!

0

37

Scag 486671

Motor, Gear Drive

$

$

Not available

38

Scag 04018-03

HHCS, M5-.8 X 10 SERR FLG

$1.99

$

Usually ships in 2-12 days

0

39

Scag 04017-15

CAP SCREW, 5/16-18 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 7

0

40

Scag 04001-178

Bolt, Hex Head 7/16-20 x 1"

$1.99

$

In Stock, Qty 12

0

41

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 20+

0

42

Scag 453206

Pivot Gear, Nozzle

$104.99

$

In Stock, Qty 5

0

43

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 17

0

44

Scag 48030-09

Clamp, Cable 1/2" I.D.

$1.49

$

In Stock, Qty 15

0

45

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

46

Scag 486407

Wear Disc, Pivot Gear

$56.99

$

In Stock, Qty 8

0

47

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 20+

0

48

Scag 428335

Bracket, Nozzle Tilt

$4.99

$

Usually ships in 2-12 days

0

49

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

50

Scag 486854

Directional Flag, Nozzle

$13.99

$

Usually ships in 2-12 days

0
