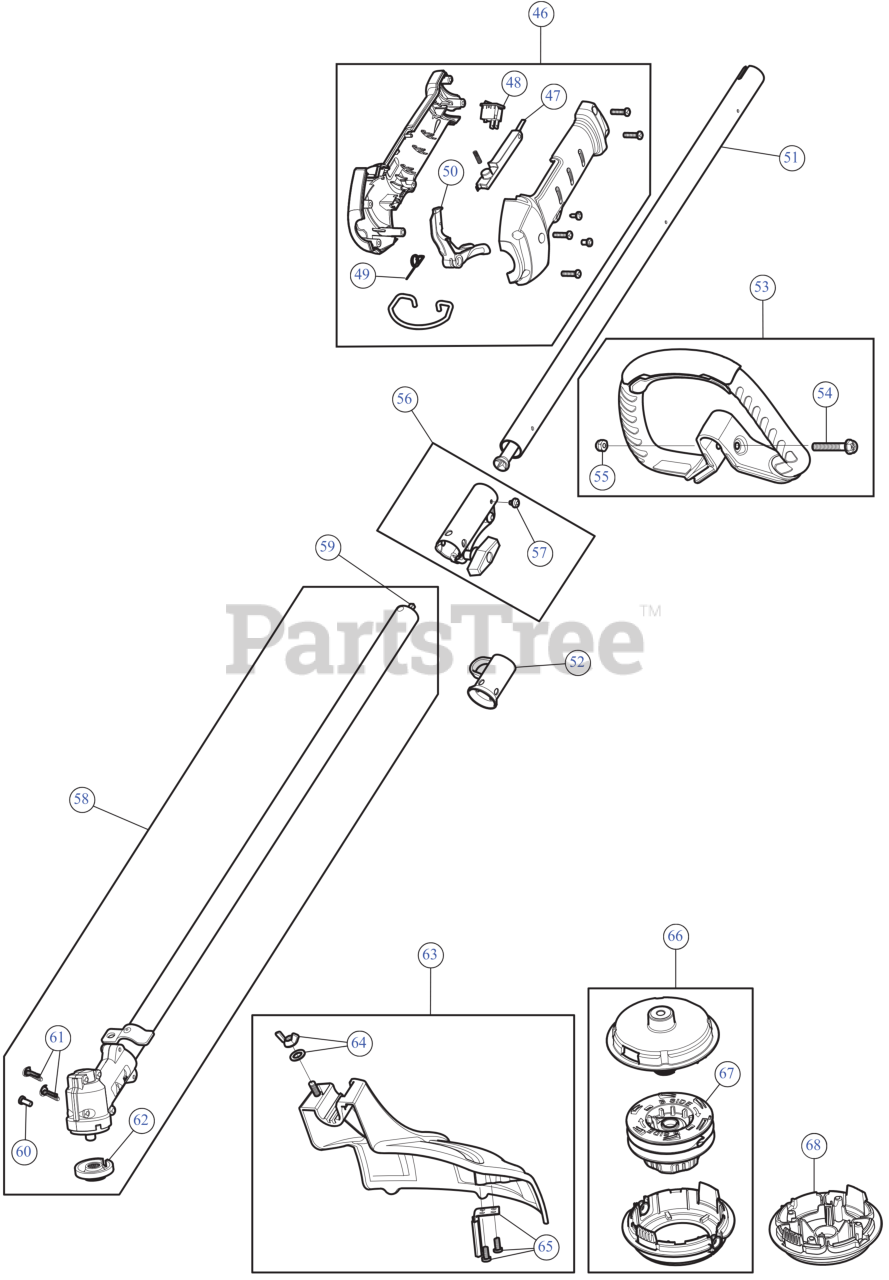

WS 430 (CMXGTAMDA5SC) (41ADA5SC793) - Craftsman String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

46

MTD 753-09889

THROTTLE GRIP ASM

Note: (Incl. 47 - 50)

$14.99

$

Usually ships in 3-6 days

0

47

MTD 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 14

0

48

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

49

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 2 left!

0

50

MTD 753-06888

THROTTLE TRIGGER
(Superseded to 753-08564)

$23.99

$

Usually ships in 3-6 days

0

51

MTD 841-033193S

UPPER BOOM

$31.99

$

In Stock, only 1 left!

0

52

MTD 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0

53

MTD 753-06889

HANDLE DLX

Note: (Incl. 54 & 55)

$9.49

$

In Stock, Qty 11

0

54

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

55

MTD 2952

NUT 1/4-20 NYLOC

$2.99

$

In Stock, only 1 left!

0

56

MTD 753-09225

COUPLER ASSEMBLY

Note: (Incl. 57)

$7.49

$

In Stock, Qty 8

0

57

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 6

0

58

MTD 611-05647

LOWER BOOM

Note: (Incl. 59 - 62)

$69.99

$

Usually ships in 3-6 days

0

59

MTD 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

60

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

61

MTD 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0

62

MTD 748-05052

CUTTING HEAD SPACER

$3.49

$

In Stock, Qty 20+

0

63

MTD 841P032580S

GUARD/BLADE ASSEMBLY

Note: (Incl. 64 & 65)

$12.99

$

In Stock, only 1 left!

0

64

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

Usually ships in 3-6 days

0

65

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

66

MTD 841-013303S

COMPLETE HEAD ASSEMBLY

Note: (Incl. 67)

$15.99

$

In Stock, only 1 left!

0

67

MTD 753-09365

BUMP KNOB

$4.49

$

In Stock, Qty 20+

0

68

MTD 841-032560S

CAP ASSEMBLY W/PLUG

Note: (with Plug)

$10.99

$

Usually ships in 3-6 days

0

MTD 753-05756

BLADES 8PK AEROF

$7.99

$

In Stock, Qty 5

0
