WS 430 (CMXGTAMDA5SC) (41ADA5SC793) - Craftsman String Trimmer Engine Assembly Parts Diagram

String Trimmer

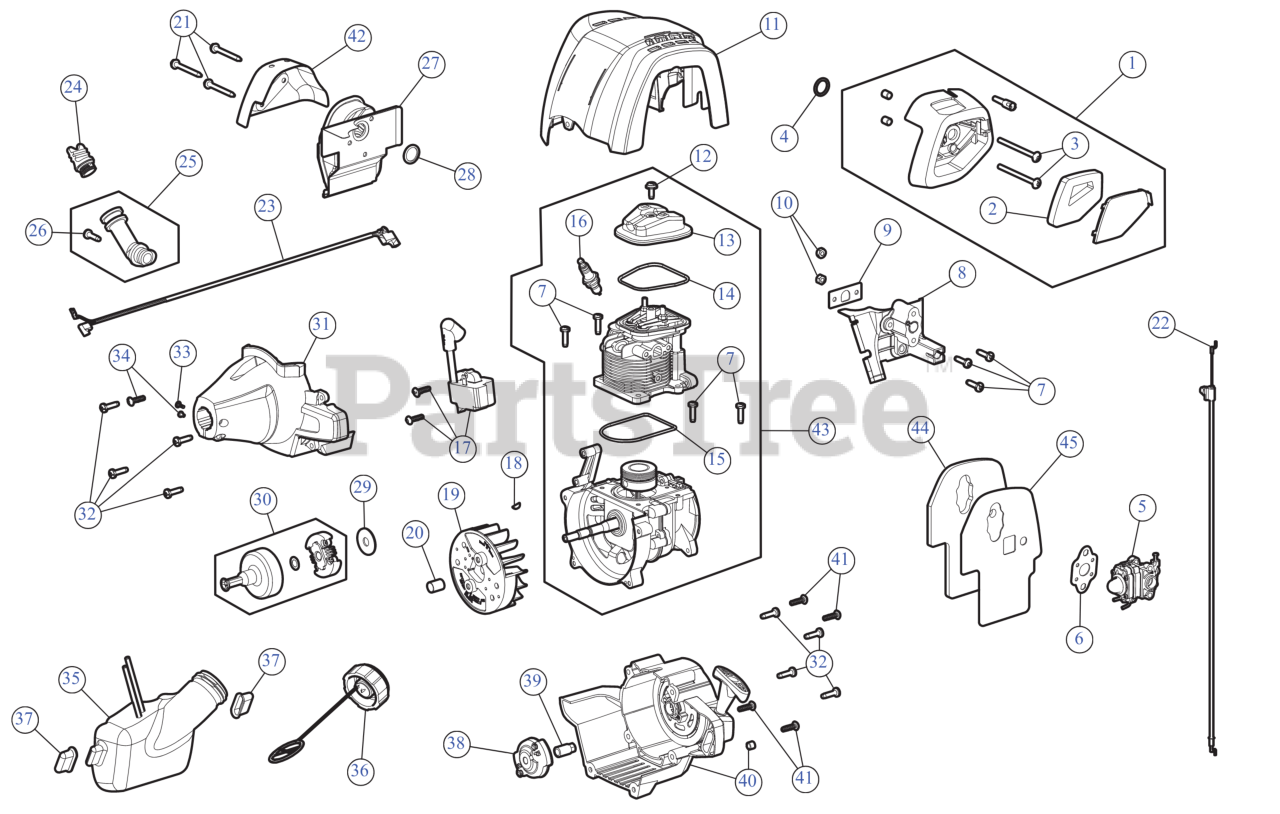

Engine Assembly Parts Diagram

  • Title

1

MTD 753-08380

AIR CLEANER ASSEMBLY

Note: (Incl. 2 & 3)

$11.99

$

Usually ships in 3-6 days

0

2

MTD 753-06085

AIR FILTER

$3.49

$

In Stock, Qty 20+

0

3

MTD 753-06939

SCREW 10-32X3

$3.49

$

In Stock, only 3 left!

0

4

MTD 791-181751

O-RING

$4.49

$

In Stock, Qty 19

0

5

MTD 753-06083

CARBURETOR ASSEMBLY

$52.99

$

Usually ships in 3-6 days

0

6

MTD 791-181709

CARBURETOR GASKET

$4.99

$

In Stock, Qty 20+

0

7

MTD 791-181003

SCREW, M5 x 18.7MM
(Superseded to 9052-1)

$

$

Not available

8

MTD 731-08964

INSULATOR

$4.99

$

Usually ships in 3-6 days

0

9

MTD 753-05673

INSULATOR GASKET

$10.99

$

Usually ships in 3-6 days

0

10

MTD 712-04099

NUT 10-32

$6.99

$

Usually ships in 3-6 days

0

11

MTD 731-07528-49

TOP ENGINE COVER

$8.49

$

Usually ships in 3-6 days

0

12

MTD 791-181025

SCR, VALVE COVER

$2.99

$

Usually ships in 3-6 days

0

13

MTD 753-05901

ROCKER COVER

$8.49

$

Usually ships in 3-6 days

0

14

MTD 753-05902

O-RING

$5.49

$

In Stock, Qty 11

0

15

MTD 753-05910

O-RING CYL AC5

$3.49

$

In Stock, only 1 left!

0

16

MTD 794-00082

SPARK PLUG 4 CYCL

$7.49

$

In Stock, Qty 5

0

17

MTD 753-05907

MODULE MA-95

$52.99

$

In Stock, only 1 left!

0

18

MTD 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

In Stock, Qty 11

0

19

MTD 753-09584

FLYWHEEL W/KEY

$25.99

$

Usually ships in 3-6 days

0

20

MTD 753-05814

SPACER .591"

$4.49

$

In Stock, Qty 7

0

21

MTD 710-04809

SCREW M5 x 44MM

$3.49

$

In Stock, Qty 5

0

22

MTD 746P04797A

THROTTLE CABLE

$7.99

$

Usually ships in 3-6 days

0

23

MTD 794-00047A

WIRE LEAD AC5

$5.99

$

In Stock, Qty 7

0

24

MTD 753-05400

OIL PLUG ASSEMBLY
(Superseded to 753-05408)

$29.99

$

In Stock, only 1 left!

0

25

MTD 753-06087

OIL FILL TUBE

Note: (Incl. 26)

$6.49

$

In Stock, Qty 7

0

26

MTD 9054

SCR, M5 x 15.8MM

$4.49

$

In Stock, only 4 left!

0

27

MTD 753-06334

MUFFLER ASSEMBLY AC5.1

$17.99

$

Usually ships in 3-6 days

0

28

MTD 753-05244

GASKET/MUFFLER

$5.99

$

In Stock, Qty 8

0

29

MTD 9162-1

WASH, CLUTCH O.D. 1.155 +/- .0

$4.49

$

In Stock, only 3 left!

0

30

MTD 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 9

0

31

MTD 753-06335

CLUTCH COVER

$5.49

$

In Stock, only 3 left!

0

32

MTD 710-04604

SCREW M5-0.8 x 19

$4.49

$

In Stock, Qty 20+

0

33

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

34

MTD 753-04291

SCREW:CLMPNG W/NUT

$

$

Not available

35

MTD 753-06093

FUEL TANK ASSEMBLY

$23.99

$

In Stock, only 1 left!

0

36

MTD 753-04084

FUEL CAP ASSEMBLY

$22.99

$

Usually ships in 3-6 days

0

37

MTD 753-05259

FUEL TANK PADS

$6.99

$

In Stock, Qty 20+

0

38

MTD 753-06091

PAWL ASSEMBLY AC5

$9.49

$

In Stock, only 3 left!

0

39

MTD 753-06104

ELECTRIC START ADP

$4.49

$

In Stock, Qty 20+

0

40

MTD 841-021101S

STARTER HOUSING

$32.99

$

In Stock, only 1 left!

0

41

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

42

MTD 753-06101

MUFFLER SHLD

$5.99

$

Usually ships in 3-6 days

0

43

MTD 753-06494

SHORT BLOCK

Note: (Incl. 7, 12 - 16)

$130.99

$

In Stock, only 1 left!

0

44

MTD 753-06122

HEAT SHLD CARB AC5

$5.49

$

Usually ships in 3-6 days

0

45

MTD 721-04616

CARBURETOR GASKET

$2.99

$

In Stock, only 1 left!

0
